Description
Included in this Package Deal

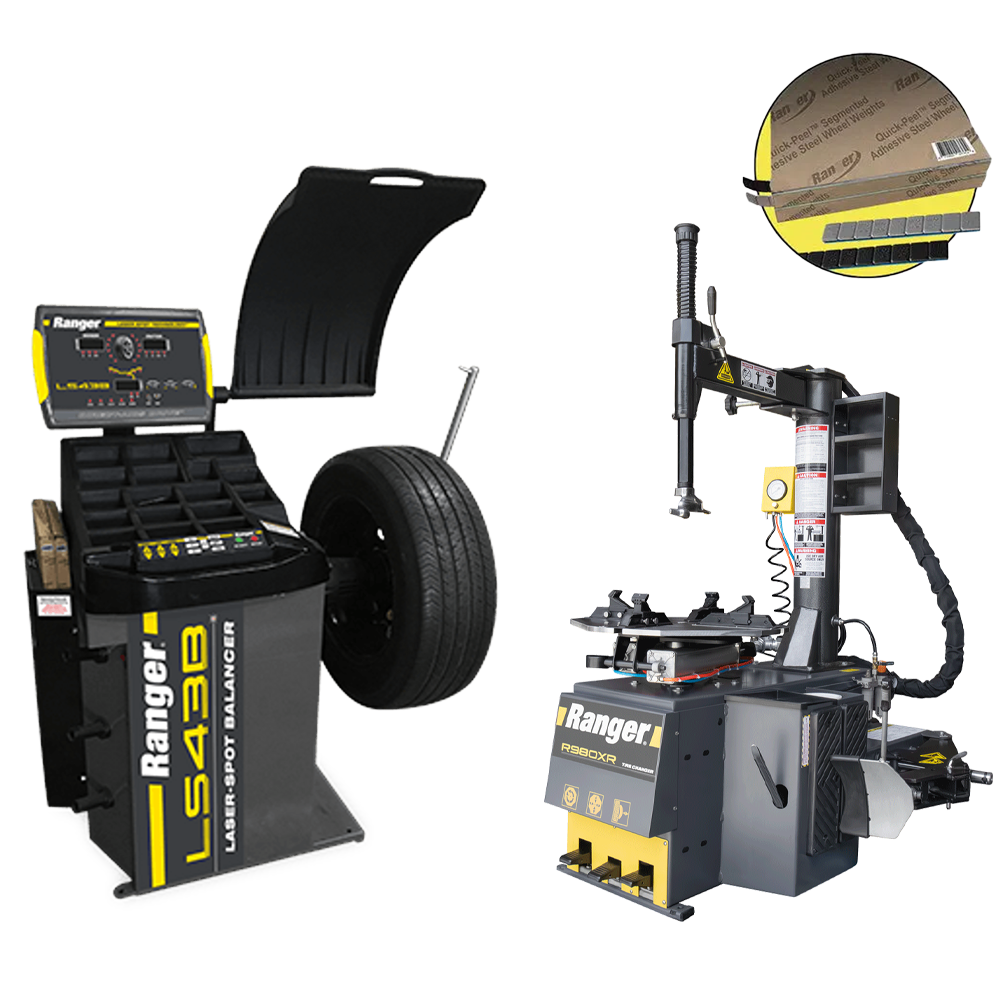

R980XR – QTY 1
Tire Changer / Swing Arm / 30′ Capacity
To get the space-saving benefits of the Ranger R980AT without the addition of an assist-tower, the R980XR is a perfect alternative tire changer. It’s perfect for general repairs on a wide range of tires, including racing tires, pickup trucks and tire beads that won’t put up much of a fight.
LS43B – QTY 1
Wheel Balancer / 3D Quick-Touch Laser-Spot / 36 mm Shaft
The Ranger LS43B laser wheel balancer optimizes wheel weight placements with exclusive Laser-Spot technology. Laser lines clearly indicate outboard and inboard weight placements for incredible balances within hundredths of an ounce. Wheels that are laser-balanced drive like new!
Tape Wheel Weights / Combo – QTY 1
Adhesive Steel Wheel Weights / Combo / ROLLS (1400 pcs. – 0.25 oz. – 1/2′ Wide – 22 lbs.)
This combo Quick-Peel adhesive steel wheel weights are an effective and environmentally friendly way to quickly balance wheels using as little weight as possible.
Specifications

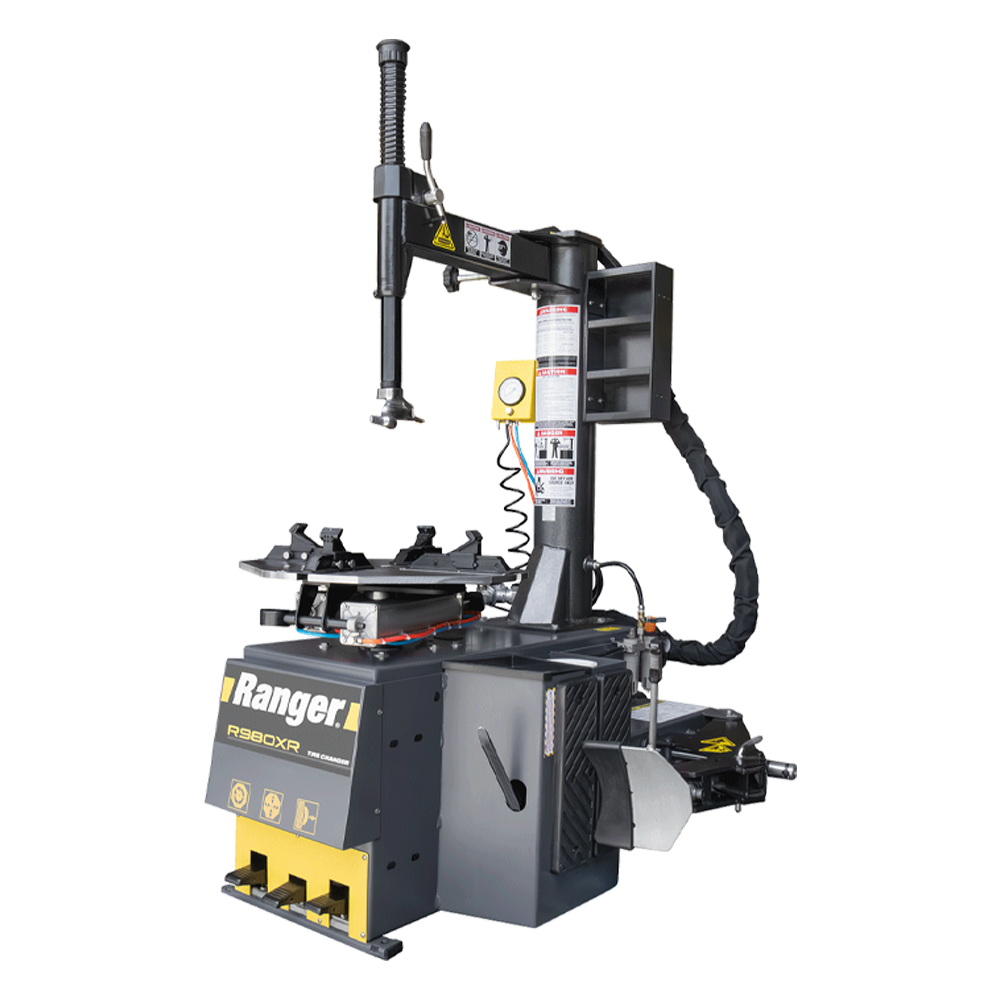

Ranger R980XR Tire Changer
- Style: Fixed Tower Design
- Assist Type: Single-Tower Assist
- Speed: Standard
- Motor: 3 HP (220 VAC 50-60 HZ)
- Drive System Type: Electric / Air
- Air Requirement: 140-165 PSI (10-11 BAR)
- Wheel Clamping Method: 4 Clamps – Internal / External
- Table Clamping System: Dual Pneumatic Cylinders
- Bead Breaking System: Pneumatic Blade / Dual
- Tower Design: Rigid / Fixed
- Power Assist Towers: N/A
- Bead Seating System: Turbo Blast / Bead Seating
- Internal Rim Clamping Capacity: 10″ – 30″ (254 mm – 762 mm)
- External Rim Clamping Capacity: 9″ – 28″ (229 mm – 711 mm)
- Turntable Tire Width Capacity (Mounting): 4″ – 18″ (102 mm – 457 mm)
- Bead Breaker Tire Width Capacity (Demounting): 1.5″ – 13″ (38 mm – 330 mm)
- Maximum Tire Diameter: 50″ (1,270 mm)
- Shipping Weight: 716 lbs. (324 kg)
- Shipping Dimensions: 43″ x 51″ x 44″ (1,092 mm x 1,295 mm x 1,117 mm)

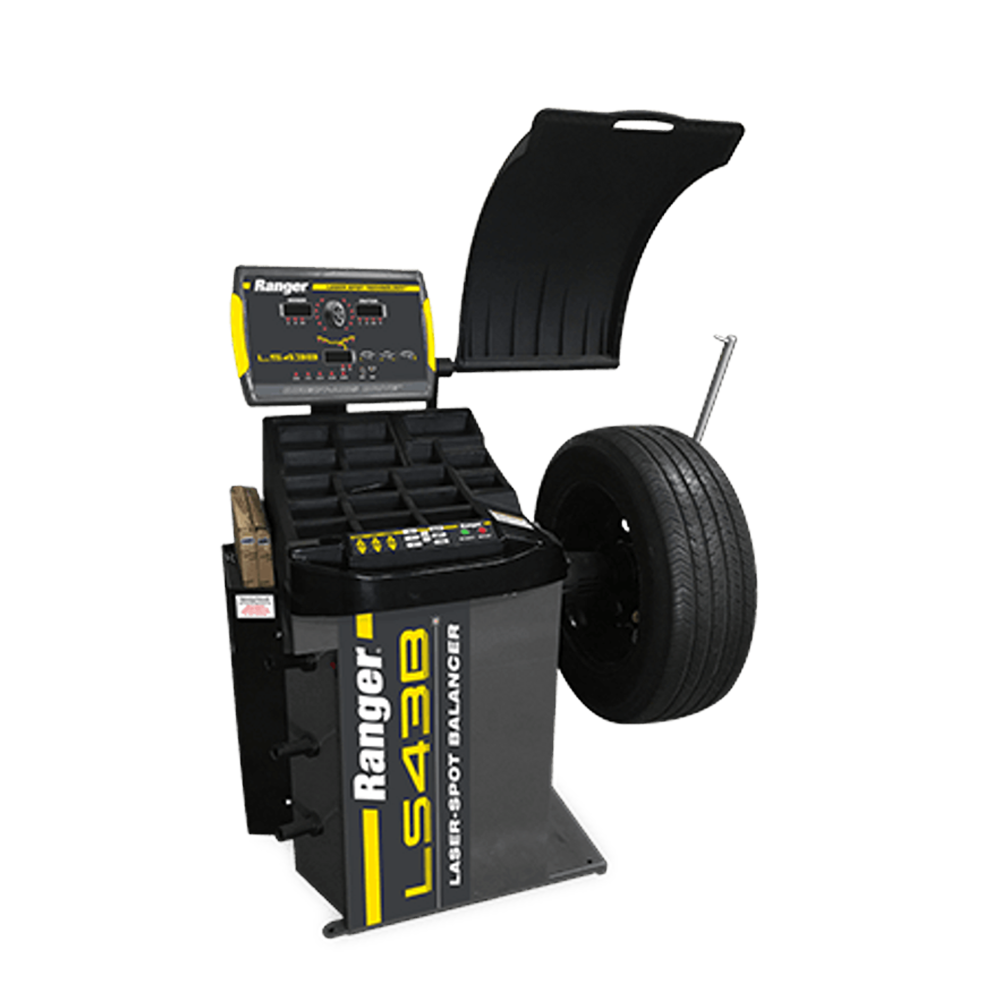

Ranger LS43B Wheel Balancer
- Style: Auto & Light Truck
- Data Entry: Automatic
- Maximum tire diameter: 47′ (1,194 mm)
- Max tire weight: 145 lbs. (65 kg)
- Max. wheel diameter: 10′ – 30′ (254 mm – 672 mm)
- Wheel width capacity: 2′ – 18′ (51 mm – 457 mm)
- Balancing increments: 0.25 or 0.01 oz.
- Balancing speed: 180 RPM
- Accuracy: +/- 1 gram (.035 oz.)
- Working temperature: 27°F (-5°C) – 82°F (50°C)
- Drive system: Belt Drive
- Balancing modes: Dynamic / Static / 3-Alloy
- Top positioning weight locator: Standard
- Inside & outside measuring: Standard
- Millimeter / inches selection: Standard
- Ounce / gram selection: Standard
- Wheel offset distance setting: Manual
- Self-calibration function: Standard
- Auto start: Standard
- Wheel spin braking: Automatic / Electronic
- Wheel holding manual brake pedal: Standard
- Centering cones included: 3 Standard / 1 truck
- Wheel callipers: Standard
- Rear cone mount spring: Standard
- No-mar rear cone mount pressure cup: Standard
- Quick-release & mount hub nut: Standard
- Shipping Weight: 418-lbs. (189 kg)
- Shipping Dimensions: 44″ x 30″ x 46″ (1,117 mm x 762 mm x 1,168 mm)
