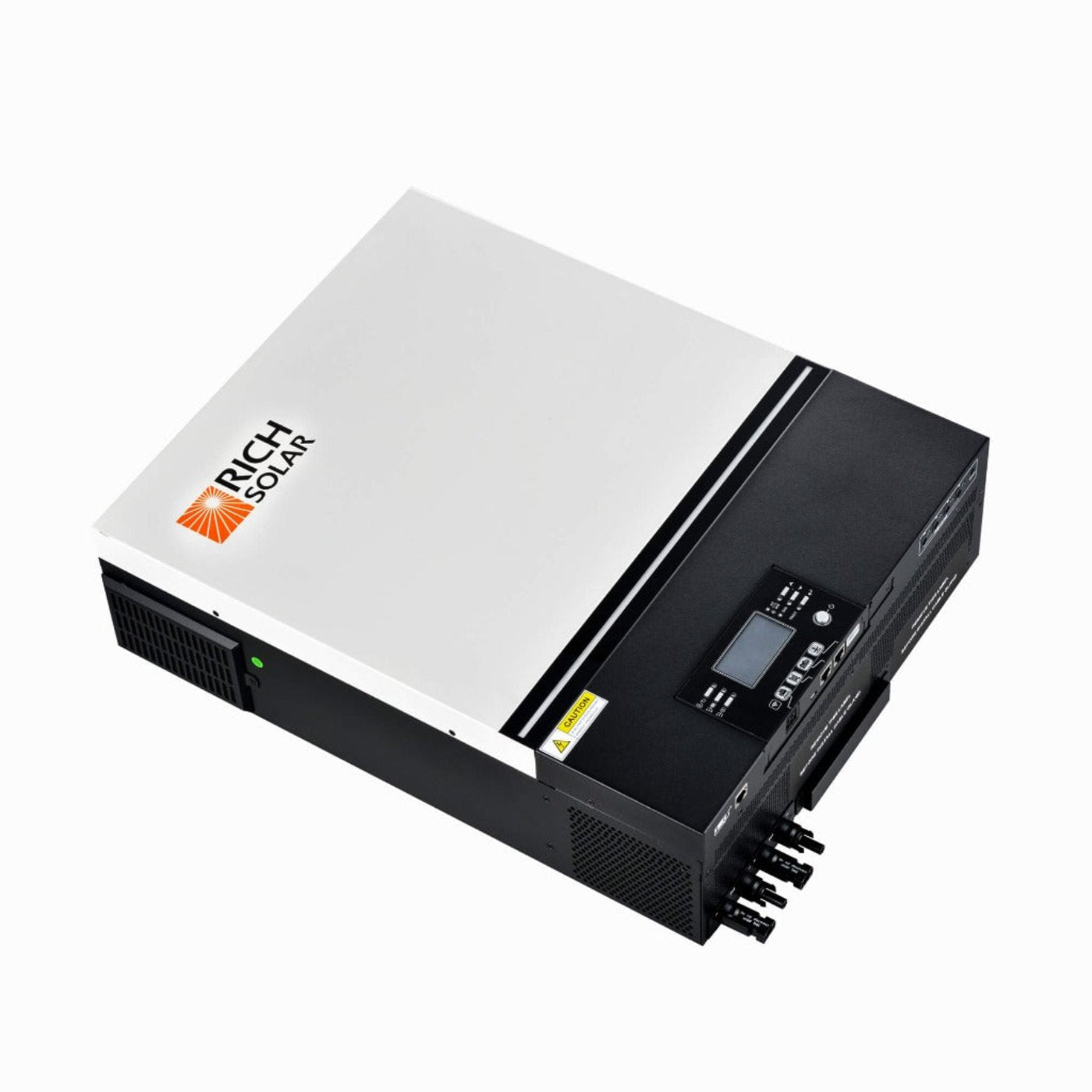

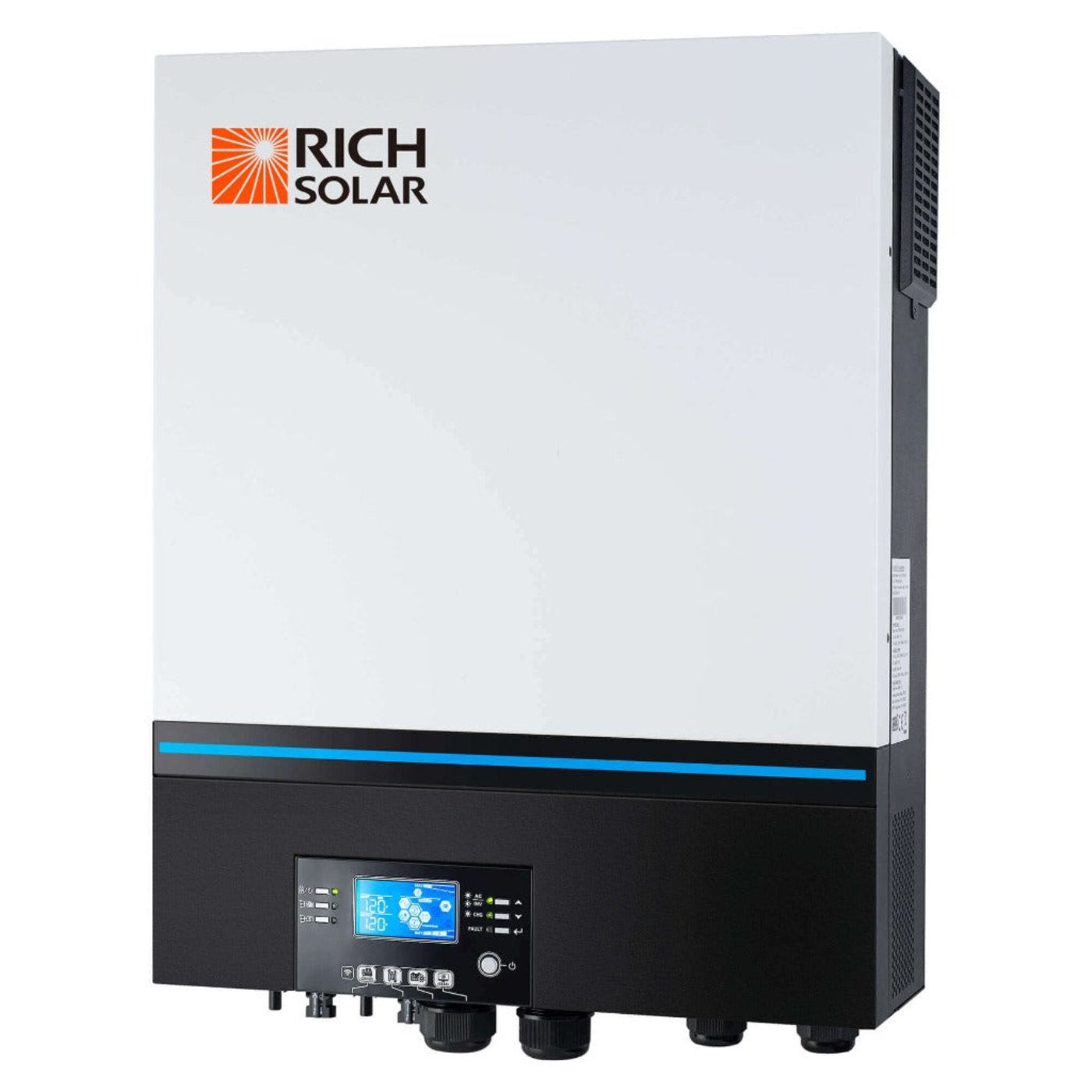

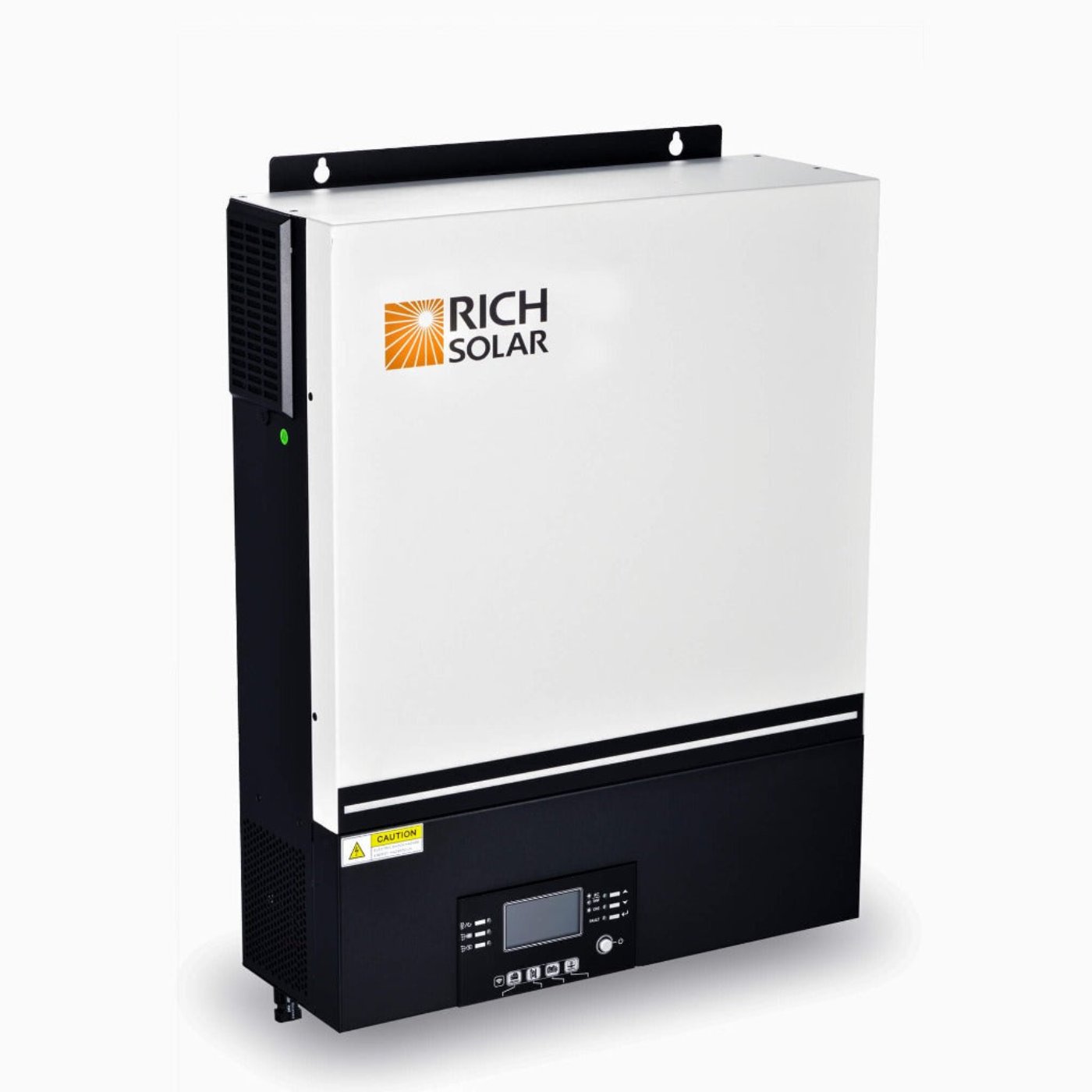

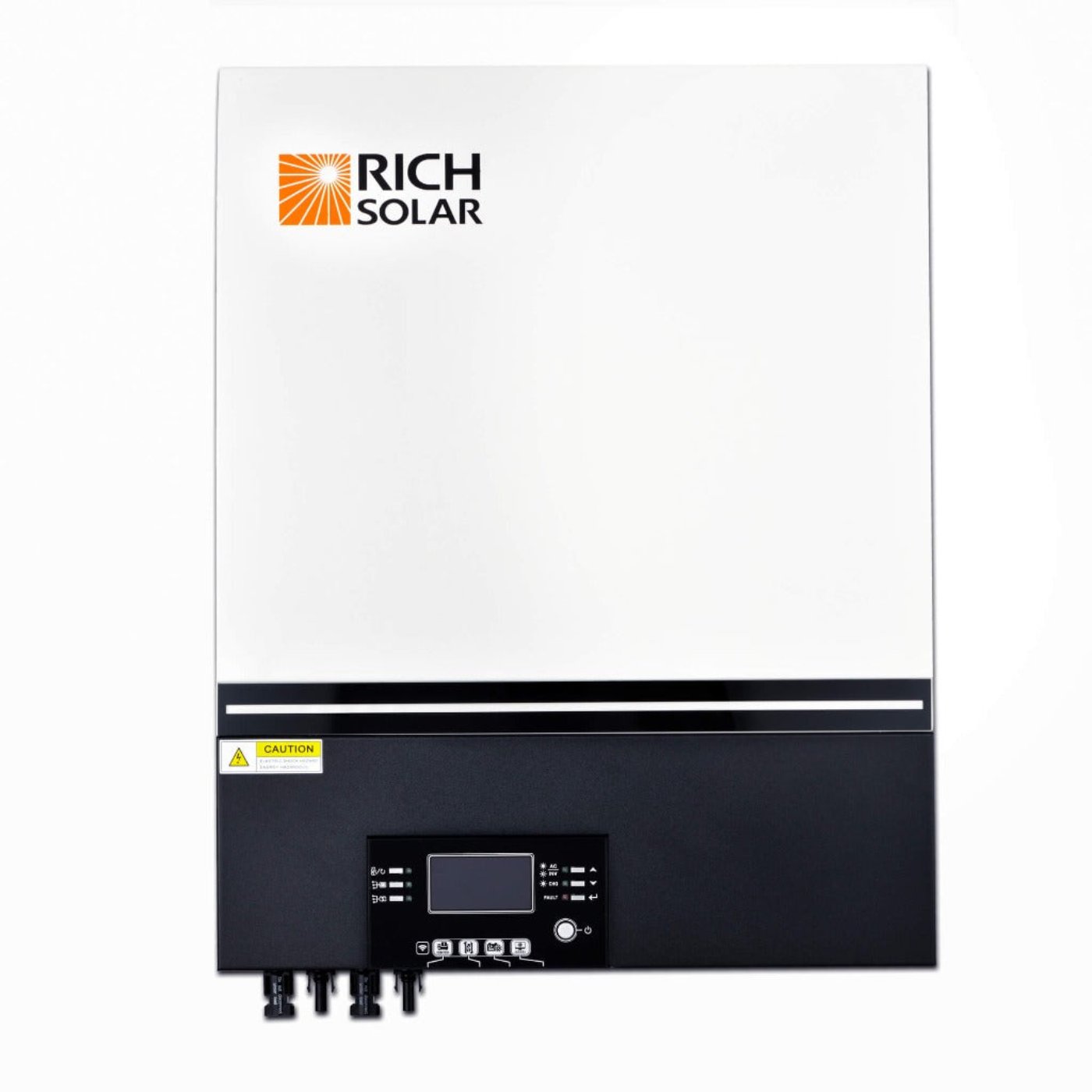

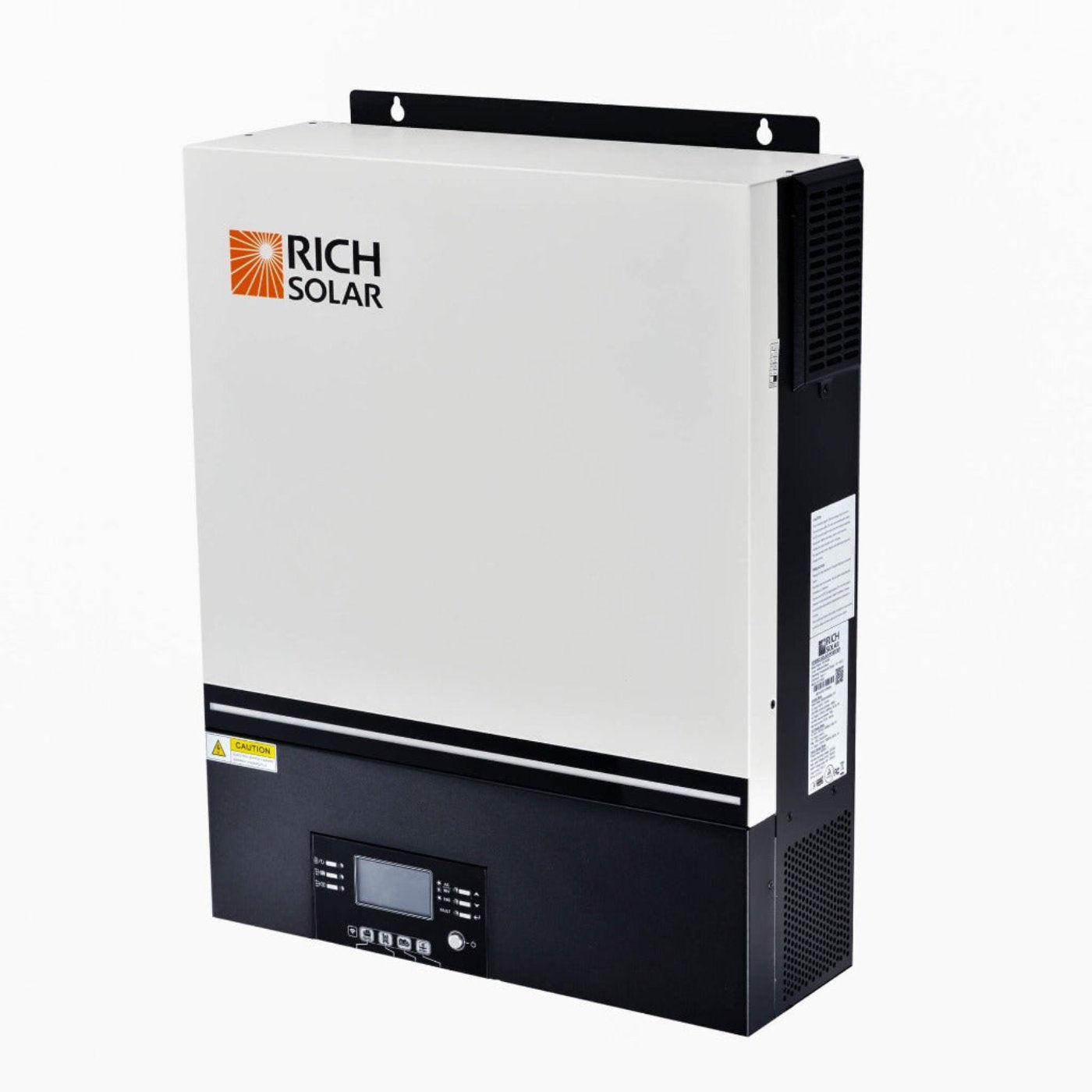

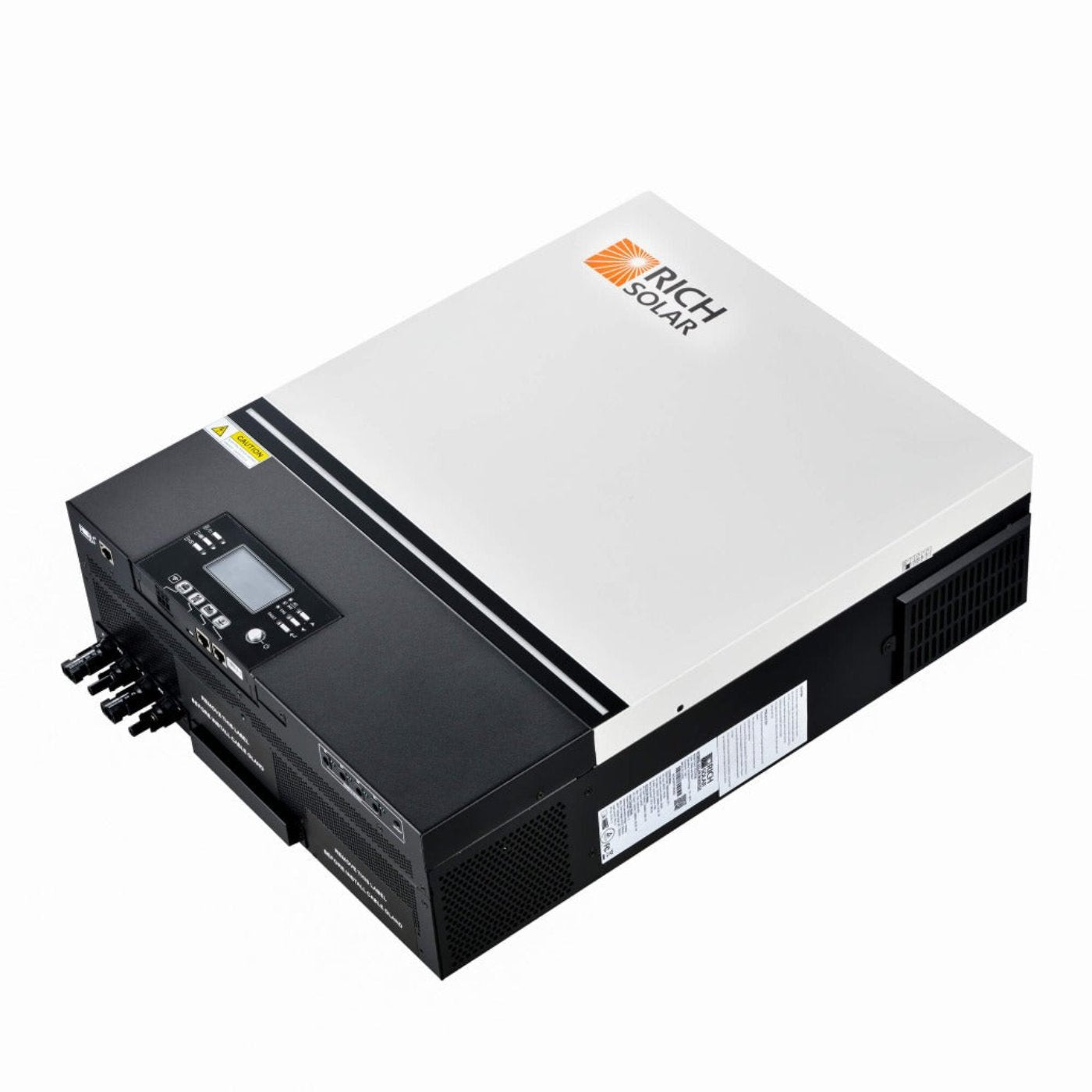

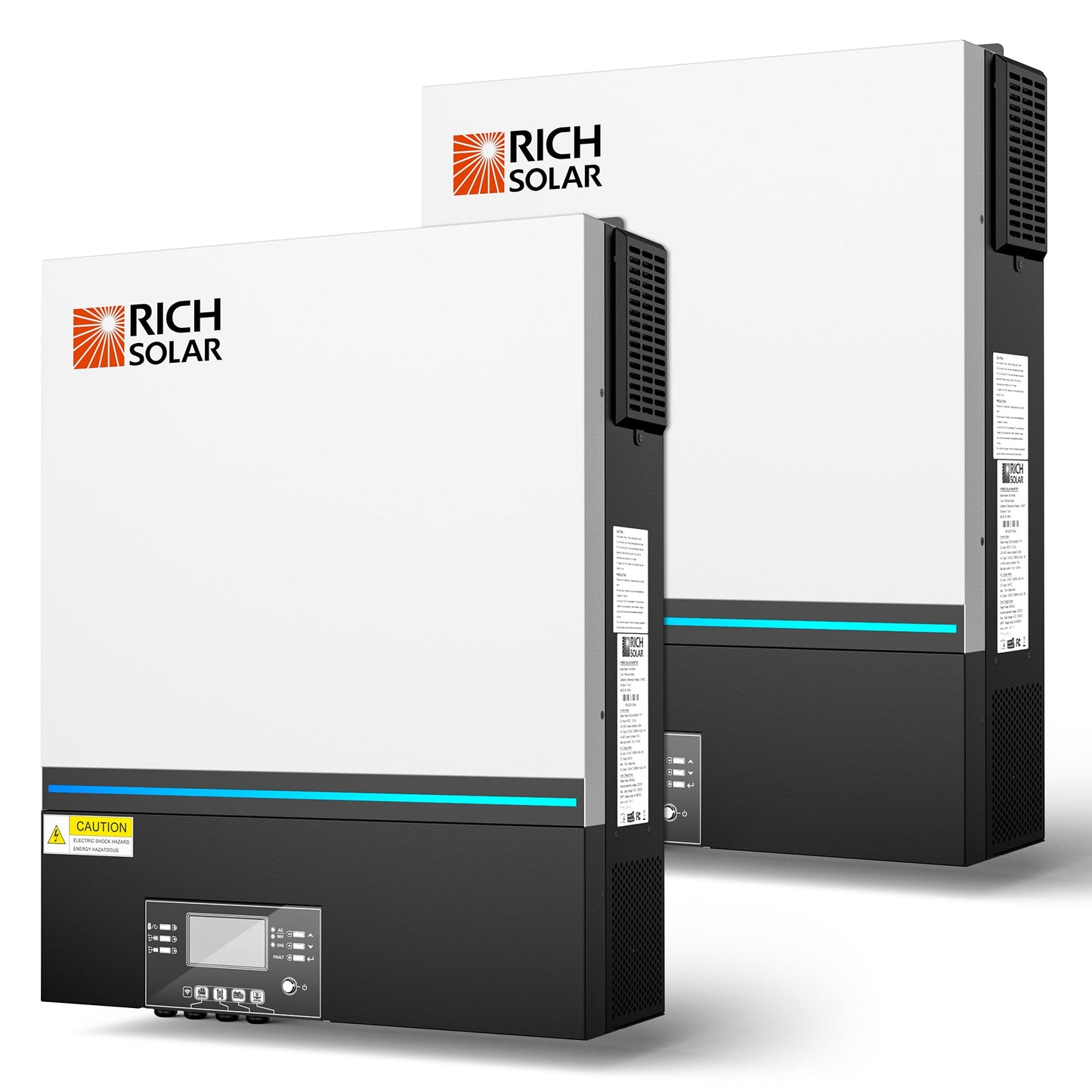

RICH SOLAR 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter

RICH SOLAR 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter

SKURS-H6548

71% Sale

Only 6 left!


Free Shipping
Limited Stock
Regular price $1,299.99
Regular price Sale price $1,299.99
View full details
payment method

Sale Ends In
00 Hours
00 Minutes
00 Seconds
don't miss it!

6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter

Features
  • Pure sine wave inverter
  • Configurable color with the built-in RGB LED bar
  • Built-in Wi-Fi for mobile monitoring (APP is required)
  • Supports USB On-the-Go function
  • Built-in anti-dusk kit
  • Detachable LCD control module with multiple communication ports for BMS(RS485,CAN-BUS, RS232)
  • Configurable input voltage ranges for home appliances and personal computers via LCD control panel
  • Configurable AC/PV output usage timer and prioritization
  • Configurable AC/Solar charger priority via LCD control panel
  • Configurable battery charging current based on applications via CD control panel
  • Compatible to utility mains or generator power
  • Auto restart while AC is recovering
  • Overload/Over temperature/short circuit protection
  • Parallel operation with 6 units
  • Smart battery charger design for optimized battery performance
  • Cold start function


How to Setup 6548 Hybrid Inverter in Split-Phase or Parallel Operations

Specs

Specifications:

Model: RS-H6548
Rated Inverter Power: 6500VA/6500W
PARALLEL CAPABILITY: Yes, 6 units

INPUT

  • Voltage: 120 VAC
  • Selectable Voltage Range: 90-140 VAC (For Computers)
  • 80-140 VAC (For Home Appliances)
  • Frequency Range: 50 Hz/60 Hz (Auto Sensing)


OUTPUT

  • AC Voltage Regulation (Batt. Mode): 120VAC ± 5%
  • Surge Power: 15000VA
  • Efficiency (Peak): 90% ~ 93%
  • Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances)
  • Waveform: Pure Sine Wave
  • No Load Power Consumption: <70W
  • Optional DC Voltage: 12 VDC ± 5%, 100W
  • Dual Outputs: Yes


BATTERY

  • Battery Voltage: 48 VDC
  • Floating Charge Voltage: 54 VDC
  • Overcharge Protection: 66 VDC


SOLAR CHARGER & AC CHARGER

  • Solar Charger Type: MPPT
  • Maximum PV Array Power: 8000W (4000W x 2)
  • MPPT Operating Voltage Range: 90 ~ 230 VDC
  • Maximum PV Array Open Circuit Voltage: 250 VDC
  • Maximum Solar Charge Current: 120A
  • Maximum AC Charge Current: 120A
  • Maximum Charge Current: 120A


PHYSICAL

  • Dimension(D X W X H): 5.8 x 17.0 x 21.8 in
  • Net Weight: 40.6 lb
  • Communication Interface: USB/RS232/RS485/WiFi/Dry-contact


OPERATING ENVIRONMENT

  • Humidity: 5% to 95% Relative Humidity(Non-condensing)
  • Operating Temperature: -10°C to 50°C
  • Storage Temperature: -15°C to 60°C


STANDARD

  • Compliance Safety: UL
Manual

User Manual & Certification

6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter

6500 WATT (6.5KW) 48 VOLT OFF-GRID HYBRID SOLAR INVERTER












What Our Experts Think
  • Hybrid Flexibility: The RICH SOLAR 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter offers a versatile, hybrid solution that combines off-grid functionality with grid-tie capabilities, providing a reliable power source whether you’re off the grid or looking to reduce reliance on the utility grid.
  • High Power Output: With a capacity of 6.5kW, this inverter can handle a wide range of household and commercial loads, ensuring it powers essential appliances, electronics, lighting, and even heavy-duty equipment like water pumps or air conditioning.
  • 48VDC Configuration: The 48VDC configuration enhances the system's overall efficiency, providing better performance with fewer losses in energy conversion, making it an excellent choice for high-demand off-grid setups.
  • Seamless Integration: As a hybrid inverter, it seamlessly integrates both solar energy and grid power, allowing users to maximize energy use from their solar panels while drawing from the grid when necessary, or even storing excess solar power in batteries for later use.
  • Reliable Backup Power: This inverter provides dependable backup power during grid outages, ensuring that your home or business continues to operate smoothly during interruptions, with the added flexibility to run off solar or battery storage.
  • Energy Management & Monitoring: Equipped with advanced energy management features, it optimizes energy storage and consumption, helping reduce overall electricity costs and increase system efficiency.
  • Durability & Longevity: Built to last, the RICH SOLAR inverter is designed to handle extreme weather conditions and operates efficiently under a variety of environmental conditions, making it suitable for both residential and commercial off-grid setups.
  • Expandable System: This inverter can be integrated with additional solar panels or batteries, offering scalability to meet growing energy needs and future-proofing your off-grid energy system.
Q&A

Q: What is the RICH SOLAR 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter?
A: The RICH SOLAR 6500W Off-grid Hybrid Solar Inverter is a high-performance inverter designed for off-grid solar systems, capable of handling 6.5kW of continuous power output with 48VDC input.

Q: What is the main benefit of a hybrid inverter?
A: A hybrid inverter combines solar power generation, battery storage, and grid backup, allowing for energy flexibility, reducing dependence on the grid, and providing reliable power during outages.

Q: Can this inverter be used with battery storage?
A: Yes, the RICH SOLAR inverter is designed to work seamlessly with battery banks, storing excess solar energy for later use and ensuring a continuous power supply when solar generation is low.

Q: How does the RICH SOLAR 6500W inverter perform in off-grid applications?
A: It efficiently converts solar power into usable AC electricity for off-grid homes or businesses, providing reliable power to a variety of appliances and devices without the need for grid electricity.

Q: What is the maximum power output of the inverter?
A: The inverter provides 6.5kW (6500 watts) of continuous power, making it suitable for medium to large off-grid setups, including powering home appliances, lighting, and other electrical needs.

Q: Is this inverter suitable for both AC and DC systems?
A: Yes, it supports both AC and DC power systems, providing flexibility to work with solar panels, batteries, and other off-grid components.

Q: What are the key features of this hybrid inverter?
A: Features include high efficiency, built-in battery charging and discharging management, grid backup support, and an LCD display for real-time system monitoring.

Q: Can this inverter be used with a solar panel array?
A: Yes, it is compatible with solar panel systems, ensuring efficient power conversion and storage for off-grid use or backup power applications.

Q: Is installation of the RICH SOLAR 6500W inverter straightforward?
A: While the inverter is designed for ease of installation, professional installation is recommended for optimal setup, particularly when integrating with solar panels and battery storage.

Q: How long is the lifespan of the RICH SOLAR 6500W inverter?
A: The inverter is built to last for many years, with a typical lifespan of 10-15 years, depending on usage and maintenance.

Q: Is the RICH SOLAR 6500W inverter weather-resistant?
A: Yes, the inverter is built to withstand outdoor conditions, offering durable protection in a variety of environmental settings.

Maintenance Tips
  • Cleaning: Keep the inverter clean by wiping it with a dry, soft cloth to remove dust and debris. Avoid using liquids that may damage electrical components.
  • Ventilation: Ensure the inverter is placed in a well-ventilated area to prevent overheating. Make sure the cooling vents are not obstructed.
  • Temperature Monitoring: Regularly check the temperature of the inverter to ensure it is within the safe operating range. Avoid placing the inverter in extremely hot or cold environments.
  • Connection Check: Inspect the connections and wiring periodically for any loose or corroded terminals. Tighten and clean as necessary to maintain optimal performance.
  • Software/Settings Check: Ensure the inverter's software is up to date and monitor its settings to prevent overload or undervoltage conditions.
  • Battery Maintenance: If used with batteries, ensure they are properly charged and maintained. Regularly check for proper charge/discharge cycles.
