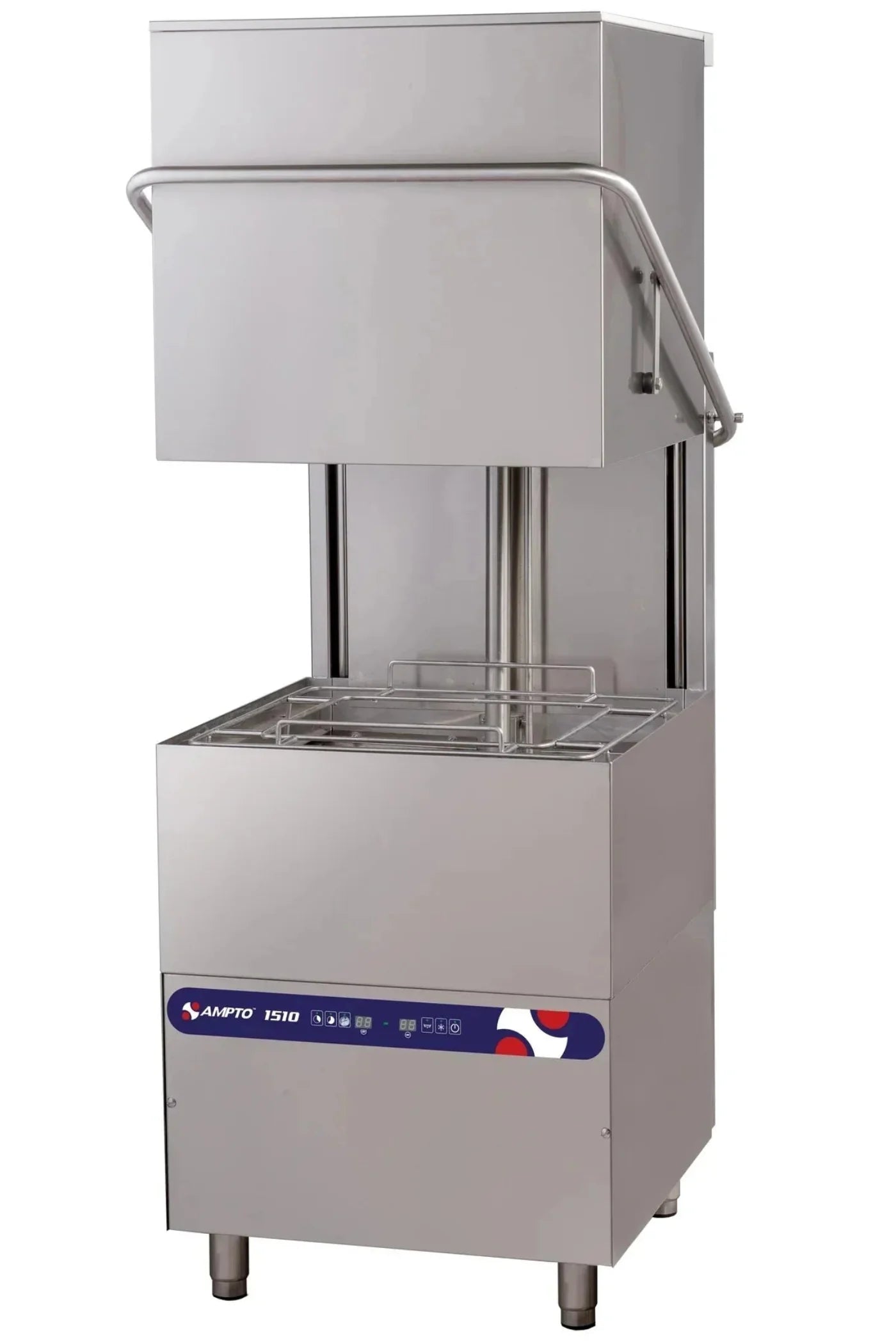

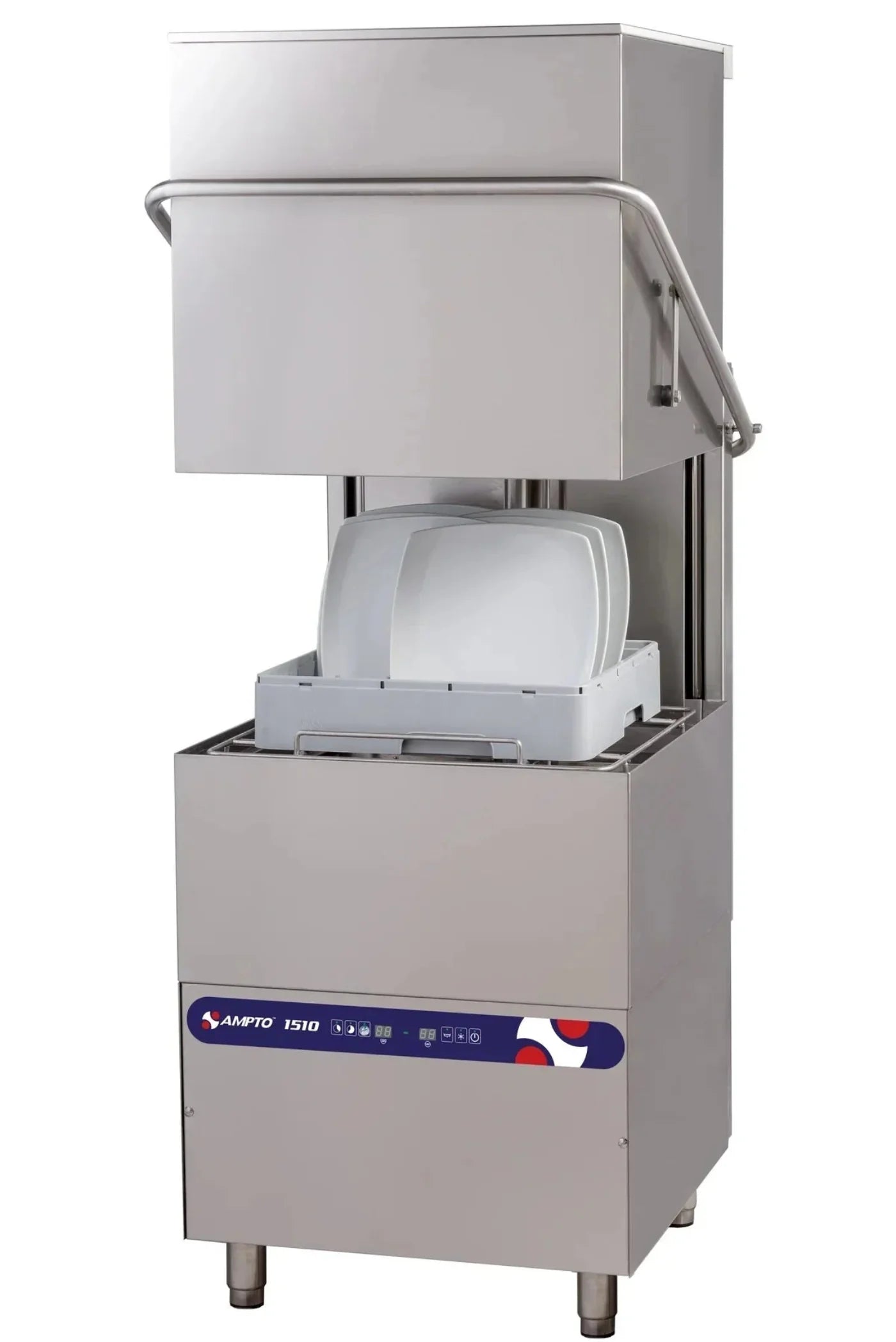

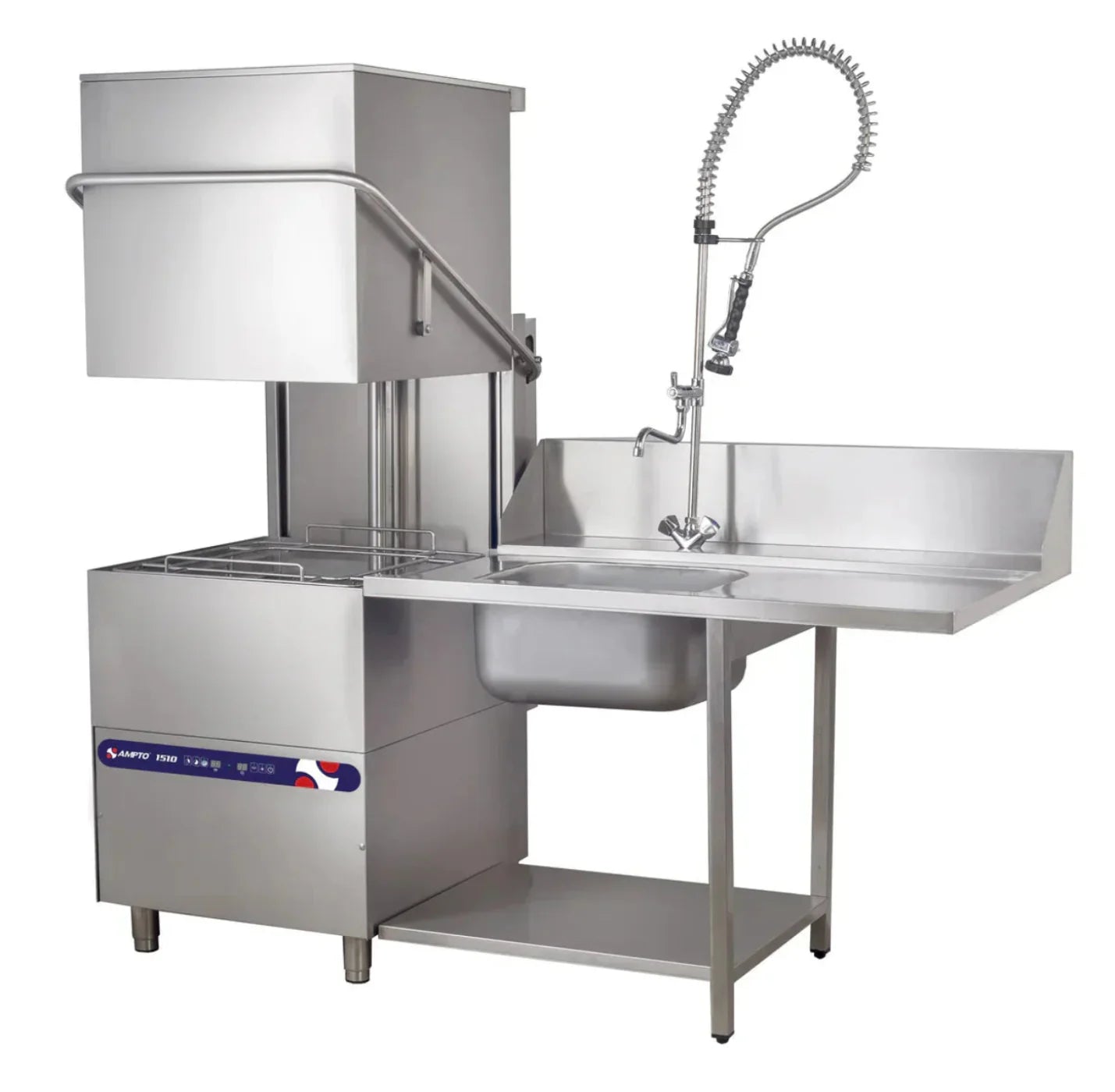

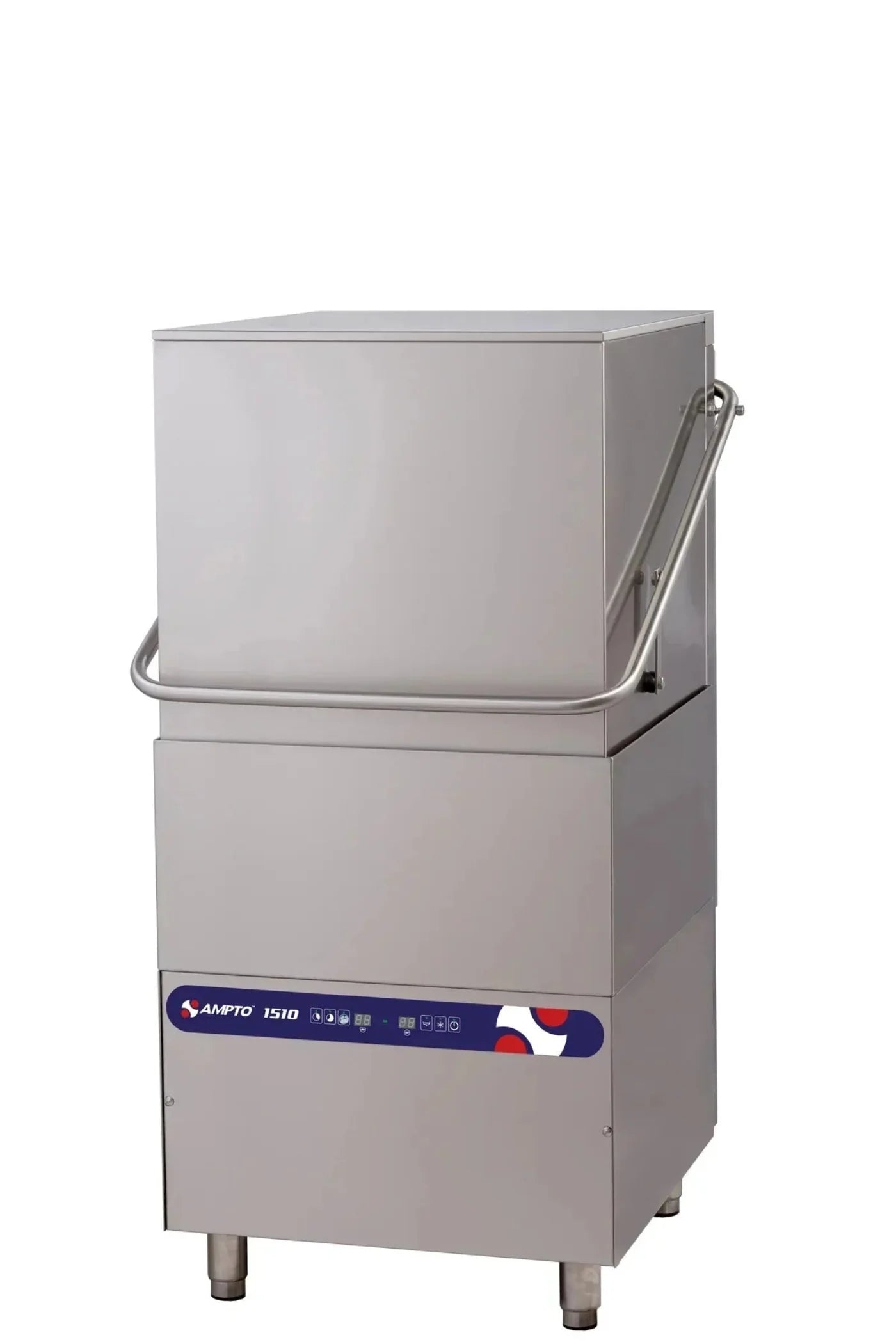

AMPTO Dishwasher, hood type, 34-5/8"W, high temperature, with 8.6kW booster heater, up to (30) racks per hour - 1510
Dishwasher, hood type, 34-5/8"W, high temperature, with 8.6kW booster heater, up to (30) racks per hour, detergent & rise-aid pumps, front-mount digital controls, drain pump, (3) operating cycles, , stainless steel exterior panels & interior, 1-1/2 HP, cETLus, ETL-Sanitation
Features
- NSF certified indicators for wash temperature, rinse temperature and rinse pressure
- 304 stainless steel body and handle, heavy duty & corrosion resistant
- Upper and lower wash/rinse arms with high temperature cycles
- 1 peg rack, 1 flat rack & 1 cutlery tray included
- Â Automatic Fill
- Double skin door
- Automatic drain pump
- Self-cleaning mode
- Built in booster heater
- Built in chemical pumps
- IP 44 washing pump
- Guarantee rinse temperature
- Self-diagnostic mode
- 3 washing programs available
- Easy access for maintenance
- Durable inox construction
- Standard pressure reducer valve (PRV)
- Standard back cover
Specifications
| Basket Size |
20” x 20” / 500 x 500 mm |
| Power Supply |
208–240V / 60Hz / 1 Ph |
| Power |
10.5 kW |
| Amperage |
39 A |
| Wash Pump Motor |
1.5 HP |
| Water Connection |
|
| Parameter |
Value |
| Flow Pressure |
20 psi ± 5 |
| Water Consumption / Rack |
0.7 gal (2nd program) |
| Water Consumption / Hour |
13.2 gph |
| Water Inlet Connection |
3/4” |
| Draining Connection |
1.2” |
| Capacity |
|
| Parameter |
Value |
| Booster Tank Capacity |
7.4 L |
| Wash Tank Capacity |
68 L |
| Booster Tank Heating Element |
7.5 kW |
| Wash Tank Heating Element |
6 kW |
| Racks per Hour (1st Program) |
28 |
| Racks per Hour (2nd Program) |
19 |
| Racks per Hour (3rd Program) |
14 |
| Wash Cycle 1 |
103 sec |
| Wash Cycle 2 |
223 sec |
| Wash Cycle 3 |
343 sec |
| Rinse Cycle |
16 sec |

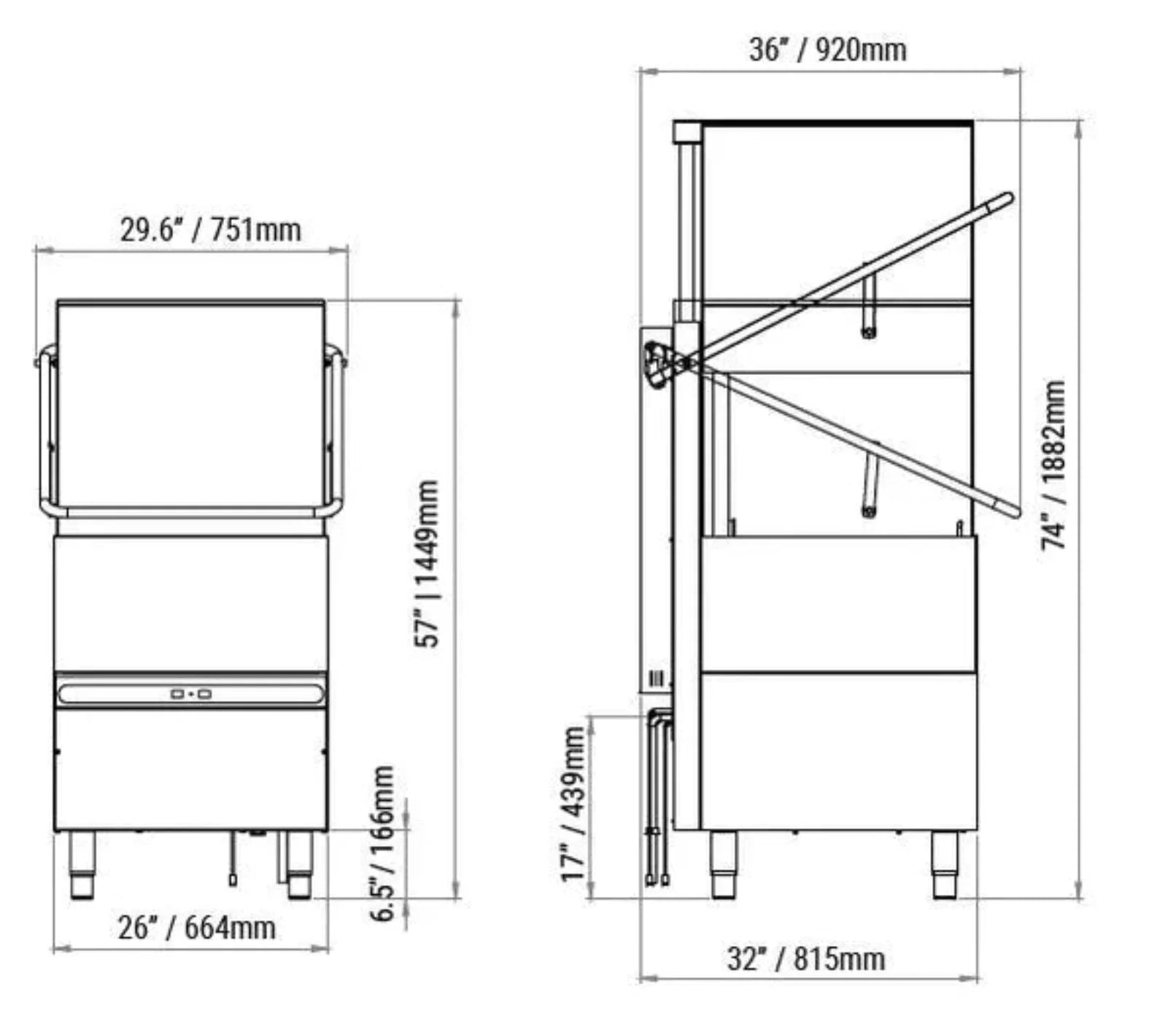

| Dimensions |
|
| Parameter |
Value |
| Door Clearance |
16” / 400 mm |
| Useful Door Opening |
15.5” / 395 mm |
| Net Dimensions (W x D x H) |
30” x 36” x 57” / 751 x 920 x 1449 mm |
| Height with Door Open |
74” / 1882 mm |
Manuals
What our Experts Think
-
High-Capacity Cleaning: With a capacity of up to 30 racks per hour, this hood-type dishwasher is perfect for high-volume kitchens, ensuring fast and efficient dishwashing without compromising on quality.
-
High Temperature & Powerful Booster: The 8.6kW booster heater ensures high-temperature washing for sanitizing dishes, delivering thorough cleaning and hygiene for your kitchenware.
-
Compact & Efficient Design: At just 34-5/8" wide, this machine is ideal for kitchens with limited space but still need heavy-duty performance for busy operations.
-
Energy & Water Efficient: Designed to reduce water usage and energy consumption, the 1510 model helps optimize operational costs while maintaining cleaning effectiveness.
-
User-Friendly Operation: Simple, intuitive controls make it easy for staff to operate, while the hood-type design allows for quick loading and unloading, improving overall workflow and productivity.
Q&A
Q: What is the AMPTO Hood-Type Dishwasher 1510 used for?
A: The 1510 is a high-temperature hood-type commercial dishwasher, designed for efficient and thorough cleaning of dishes, trays, and utensils in busy kitchens.
Q: What is its capacity?
A: This model can clean up to 30 racks per hour, making it perfect for high-volume operations such as restaurants, cafeterias, and catering services.
Q: What is the heating system?
A: The 1510 features a high-temperature wash cycle with an 8.6kW booster heater, ensuring quick and effective sanitizing at high temperatures.
Q: What are the dimensions?
A: The dishwasher has a compact design with a width of 34-5/8", making it ideal for various kitchen layouts without compromising performance.
Q: What type of power does it use?
A: The 1510 operates on electric power and requires a high-voltage connection to power the booster heater for optimal cleaning results.
Q: Why choose the 1510 model?
A: The 1510 is perfect for businesses needing a high-capacity, reliable, and energy-efficient solution for dishwashing, offering fast cycle times and excellent sanitizing capabilities.
Maintenance Tips
-
Daily Cleaning: After each use, remove debris and food particles from the interior. Wipe down the exterior and the hood area to keep it clean and free from grease.
-
Rinse Arm Care: Check and clean the rinse arms daily to ensure they are free from blockages, allowing water to spray evenly for effective cleaning.
-
Booster Heater Inspection: Check the 8.6kW booster heater for buildup and clean it monthly to maintain water temperature consistency and performance.
-
Filter Cleaning: Clean the machine’s water filters regularly (daily or weekly, depending on use) to prevent clogs and ensure proper water flow.
-
Drainage System: Inspect and clean the drainage system to prevent any blockages or buildup of food particles, ensuring smooth operation.
-
Door Seal Maintenance: Check door seals for wear and clean them to maintain a proper seal, improving cleaning efficiency and energy conservation.
-
Weekly Deep Clean: Perform a deep clean of the entire dishwasher weekly, ensuring that all parts are sanitized, and the interior is free from detergent residue and limescale.
-
Ventilation Check: Keep air vents clear of grease and dust to ensure proper airflow and prevent overheating or poor drying performance.
