Stanley Hydraulics Underwater Hydraulic Chipping Hammer - CH1533101

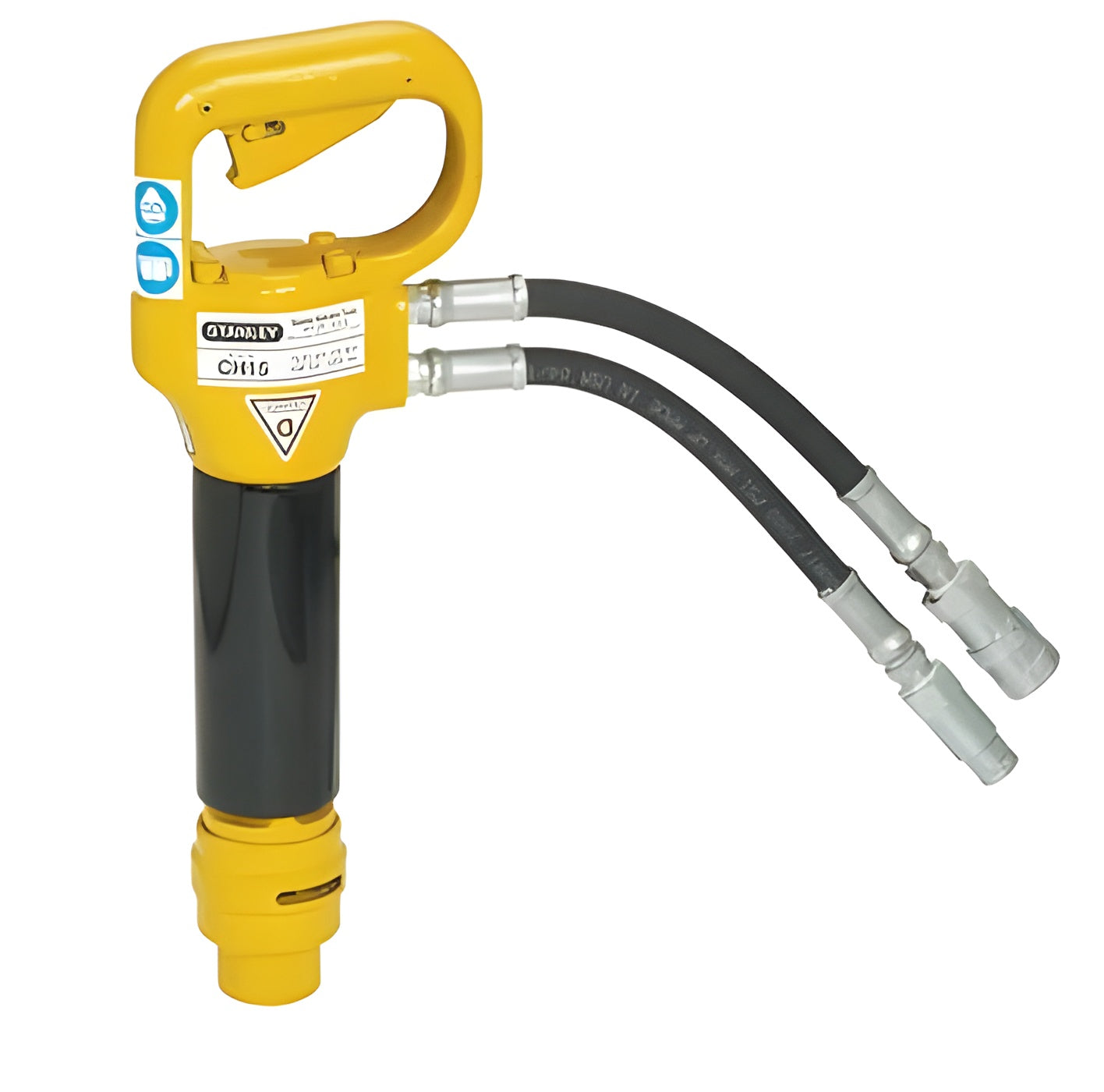

Stanley’s CH1533101 is a small and compact hydraulic chipping hammer is used for light chipping and scaling underwater. The ergonomic “D” handle and short 17” over all length, makes it easy to use in confined and hard to access locations. The floating trigger design requires minimal pressure across any part of its surface to engate the tool. The CH15 has a solid bit retainer and will accept .580 hex shank, oval collar tool bits.
Specifications
Steel Capacity: .580 Hex Shank, Oval Collar Tool Bits
Handle Type: “D” Handle with Inside Trigger
Circuit Type: Open Center
Flow Range: 7-9 GPM / 26-34 LPM
Optimum Flow: 8 GPM / 30 LPM
Working Pressure: 1000-2000 PSI / 70-140 BAR
Full Relief Setting: 2250 PSI / 155 BAR
Weight: 16 LBS / 7.25 KG
Length: 17” / 43 CM
Hydraulic Ports: -6 SAE O-Ring
Comes With Couplers: Yes
Comes With Whips: Yes
Manual
Download the CH15 Spec Sheet!
What Our Experts Think
-
High-Impact Performance: Delivers up to 1,500 blows per minute (BPM) for fast and efficient chipping underwater.
-
Built for Harsh Conditions: Features corrosion-resistant materials and a sealed hydraulic system for durability.
-
Compact & Maneuverable: Lightweight design ensures easy handling in confined underwater spaces.
-
Ergonomic & Low Vibration: Reduces operator fatigue, making it ideal for extended underwater use.
-
Versatile Applications: Perfect for underwater concrete removal, demolition, and maintenance work.
Q&A
Q: What is the Stanley CH1533101 Underwater Hydraulic Chipping Hammer?
A: The CH1533101 is a compact and powerful hydraulic chipping hammer designed for underwater concrete and metal removal.
Q: What materials can it break through?
A: It is ideal for chipping concrete, rock, and metal in submerged environments.
Q: What hydraulic flow rate does it require?
A: It operates at 5-9 GPM for efficient chipping performance.
Q: What makes it ideal for underwater use?
A: It features a corrosion-resistant build, a durable impact mechanism, and an ergonomic handle for diver comfort and control.
Q: What industries use the CH1533101?
A: It is widely used in underwater construction, marine salvage, offshore maintenance, and ship repair.
Maintenance Tips
-
Pre-Use Inspection – Check hoses, fittings, and seals for leaks or wear.
-
Flush After Use – Rinse with fresh water to remove salt, silt, and debris.
-
Hydraulic Fluid Maintenance – Use recommended oil; monitor levels and contamination.
-
Bit & Retainer Care – Clean and lubricate for smooth operation and longevity.
-
Seal & O-Ring Replacement – Inspect and replace worn components to prevent leaks.
-
Hose & Connection Checks – Ensure secure, undamaged hydraulic connections.
-
Proper Storage – Store in a dry, ventilated area away from extreme temperatures.
