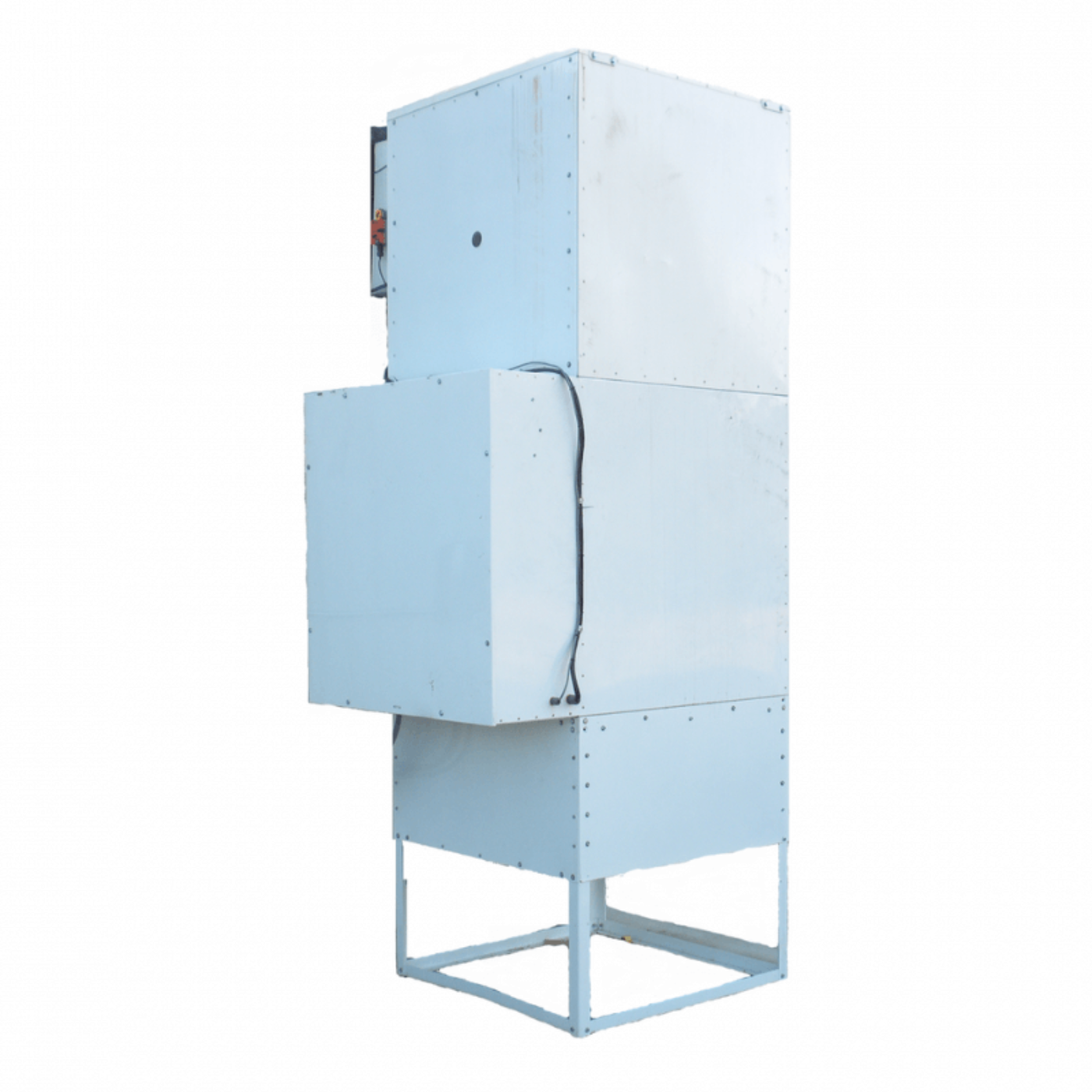

IDEAL Rammstein RS-1001-EHS-30KW Direct Fired AMU Heating System - RS-1001-3PH-230V-13K-5HP
The RS-1001 Direct Fired AMU Heating System by CPI/Rammstein Air is a dependable, high-performance solution for paint booth heating. Engineered for efficiency, it features a vertical or side discharge configuration and a durable white powder-coated finish, ensuring both longevity and reliability. Its ETL-listed control panel provides a single-point connection, fused and wired exhaust VFD, and a clear hour meter for effortless monitoring. Offering real-time updates on cycle time, elapsed time, and interlock status, the advanced control panel streamlines operation. With truly variable airflow and a 30-foot umbilical cord, the RS-1001 delivers superior performance and user-friendly functionality in industrial settings.
Engineered to run on natural gas (NG) or liquid propane (LP) with a heating capacity of 1.2M BTUH, this AMU heater is ideal for applications requiring precise temperature management. It supports up to 13,000 CFM with an intake motor powered by a 230V, 10HP, 3-phase connection. Compatible with side down and semi down draft paint booth models, the RS-1001 is a versatile addition to your setup. With a rugged design, including a triple-phase exhaust VFD motor and interlocked safety features, this system prioritizes both efficiency and user safety. Weighing 1,395 lbs., it is built to meet the demands of heavy-duty operations while complying with all relevant safety standards.
Specification
-
Fuel Type: Natural Gas (NG) or Liquid Propane (LP)
-
Heating Capacity: 1.2M BTUH
-
Gas Train Size: 1″
-
Airflow Capacity: 13,000 CFM
-
Intake Motor: 230V, 10HP, 3-Phase
-
Exhaust VFD: 230V, 10HP, 3-Phase
-
Blower Motor: N/A
-
Heating Element: N/A
-
Temperature Rise: N/A
-
Ship Weight: 1,395 lbs.
-
Compatible Booth Models: Side Down & Semi Down Draft (Plenum/Canopy Required)
Features
-
Vertical/Side Discharge configuration for versatile installation.
-
Durable white powder coat finish for longevity.
-
ETL Listed Control Panel for safety and compliance.
-
Single-point connection for streamlined setup.
-
Exhaust VFD fused and wired for efficient operation.
-
Hour meter for tracking system runtime.
-
Control panel displays cycle time, elapsed time, and system messages.
-
Truly variable airflow for precise control.
-
Interlock status indicator lights enhance safety monitoring.
-
30-foot umbilical cord for flexible installation.
-
Easy-to-use controls for straightforward operation.
Documentation
Warehouse Pickup locations
What Our Experts Think
-
The IDEAL Rammstein RS-1001-EHS-30KW is a direct fired air make-up (AMU) heating system engineered for industrial paint booths, manufacturing facilities, and large commercial applications.
-
With a 30KW electric heating capacity, it delivers consistent, high-volume heated airflow for environments requiring strict temperature control and air quality management.
-
Designed with direct-fired technology, it ensures maximum energy efficiency and rapid response times.
-
Powered by a 3-phase, 230V system with a 13K BTU rating and a 5HP motor, it provides reliable performance for heavy-duty operations.
-
Built with robust steel construction and advanced safety controls, it complies with EPA, OSHA, and NFPA standards for industrial heating systems.
Q&A
-
Q: What type of facility is this best suited for?
A: It’s ideal for automotive paint booths, industrial finishing lines, warehouses, and large-scale ventilation/heating applications.
-
Q: What is the heating capacity?
A: The system delivers 30KW of heating power for consistent airflow and temperature regulation.
-
Q: Does this unit support 3-phase power?
A: Yes, it operates on 3-phase, 230V electrical supply.
-
Q: Is this system safe for continuous use?
A: Yes, it features advanced safety interlocks, high-temp cutoffs, and durable construction for continuous, heavy-duty operation.
Maintenance Tips
-
Regularly inspect and clean burners to maintain heating efficiency and safety.
-
Check filters, ducting, and airflow systems for buildup or obstructions.
-
Ensure motors and electrical connections are serviced according to manufacturer recommendations.
-
Schedule periodic professional inspections to keep the system compliant with safety codes and extend service life.
