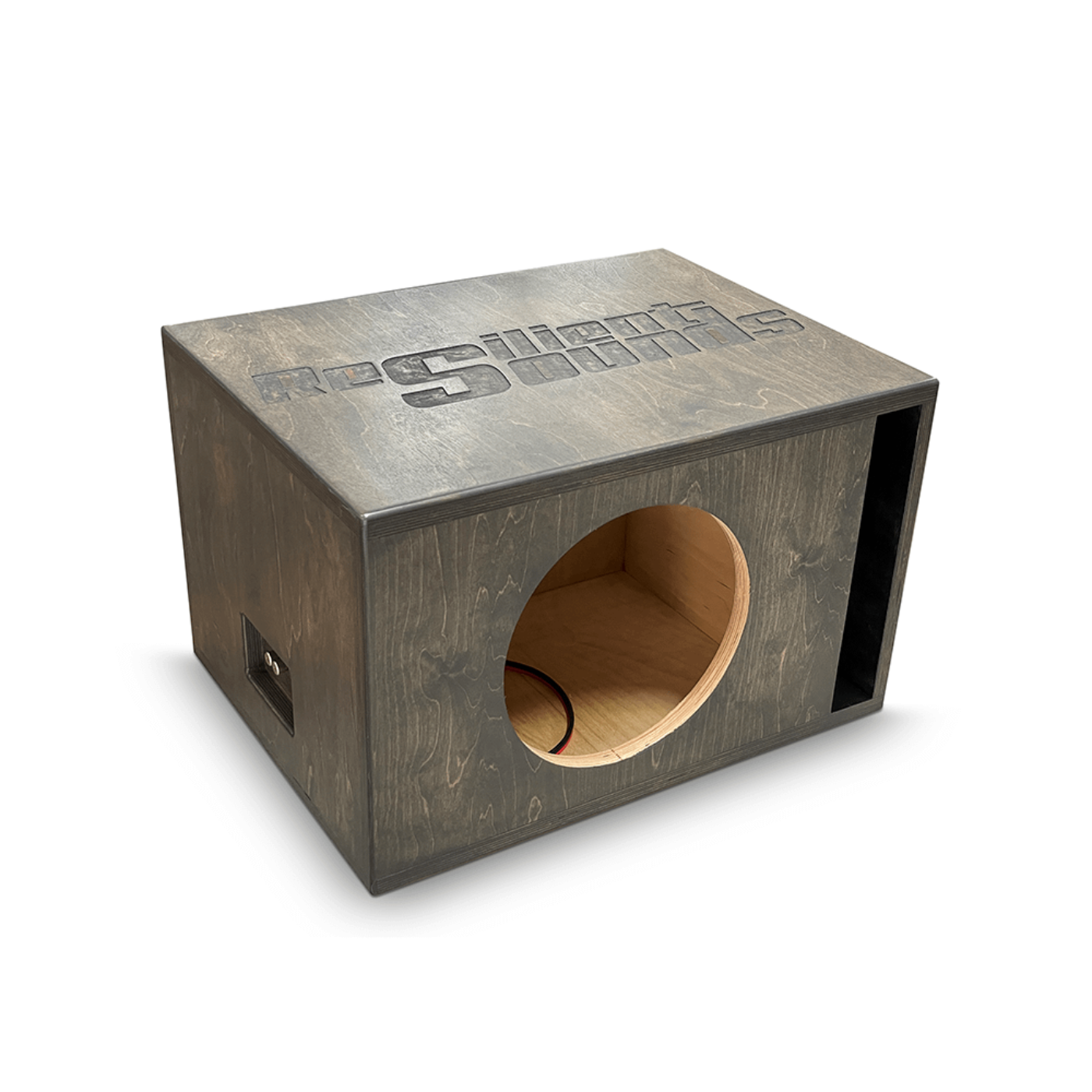

Resilient Sounds Single 12" Platinum v2 Subwoofer Enclosure - AABE-RS-PTv2-S12-HD
Custom built enclosure specifically for a Resilient Sounds Platinum v2 12" subwoofer.
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for a Resilient Sounds Platinum v2 12” subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.
Specifications
| Net Enclosure Volume |
2.25 cubic feet |
| Tuning Frequency |
32 Hz |
| Port Area |
33.25 square inches |
| Port Dimensions |
14" x 2.375" |
| Subwoofer Cut-Out Diameter |
11.175 inches |
| Material |
Entire Enclosure: 1" Birch Plywood |
| Ply Construction |
17-ply Birch Veneer |
| Finish |
Gray Stained |
| Terminal |
Pre-wired Metal Binding Post |
Dimensions
- 16.0” tall
- 25.5” wide
- 19” deep
What our Experts Think
-
Deep, Powerful Bass: Designed to bring out the full potential of the 12" Platinum v2 subwoofer, delivering rich, low-end frequencies with incredible clarity.
-
Optimized Porting for Maximum Output: The ported enclosure enhances airflow, improving bass response and efficiency while minimizing distortion.
-
Rugged and Reliable: Built with premium MDF for durability, it ensures long-lasting performance even with high-power subwoofer setups.
-
Perfectly Tuned for Platinum v2: Tailored specifically for the Platinum v2 12" subwoofer, ensuring seamless integration and balanced sound.
-
Ideal for Larger Vehicles: Perfect for those looking to fill larger spaces with deep, impactful bass, ideal for trucks, SUVs, or custom audio builds.
Q&A
Q: Who is this enclosure ideal for?
Perfect for audiophiles and car audio enthusiasts seeking high-performance bass from a 12" subwoofer in a well-built, visually appealing enclosure.
Q: How does the ported design enhance performance?
The ported design increases low-end efficiency, providing louder and more accurate bass compared to sealed enclosures, making it suitable for both daily driving and competitive audio setups.
Q: Is this enclosure ready to use out of the box?
Yes, it comes pre-loaded and pre-wired, allowing for quick installation and immediate enjoyment of enhanced bass performance.
Maintenance Tips
-
Clean regularly with a soft cloth to remove dust and preserve the finish.
-
Inspect port opening to ensure it’s clear of debris for optimal airflow.
-
Check subwoofer and wiring connections monthly for tightness and wear.
-
Avoid moisture exposure and direct sunlight to protect the enclosure’s durability.
-
Secure the enclosure in your vehicle to prevent excessive vibration and damage.
-
Use a compatible amplifier within the recommended power range to avoid subwoofer distortion.
-
Inspect terminal connections every 1–2 months for any signs of corrosion or loosening.
