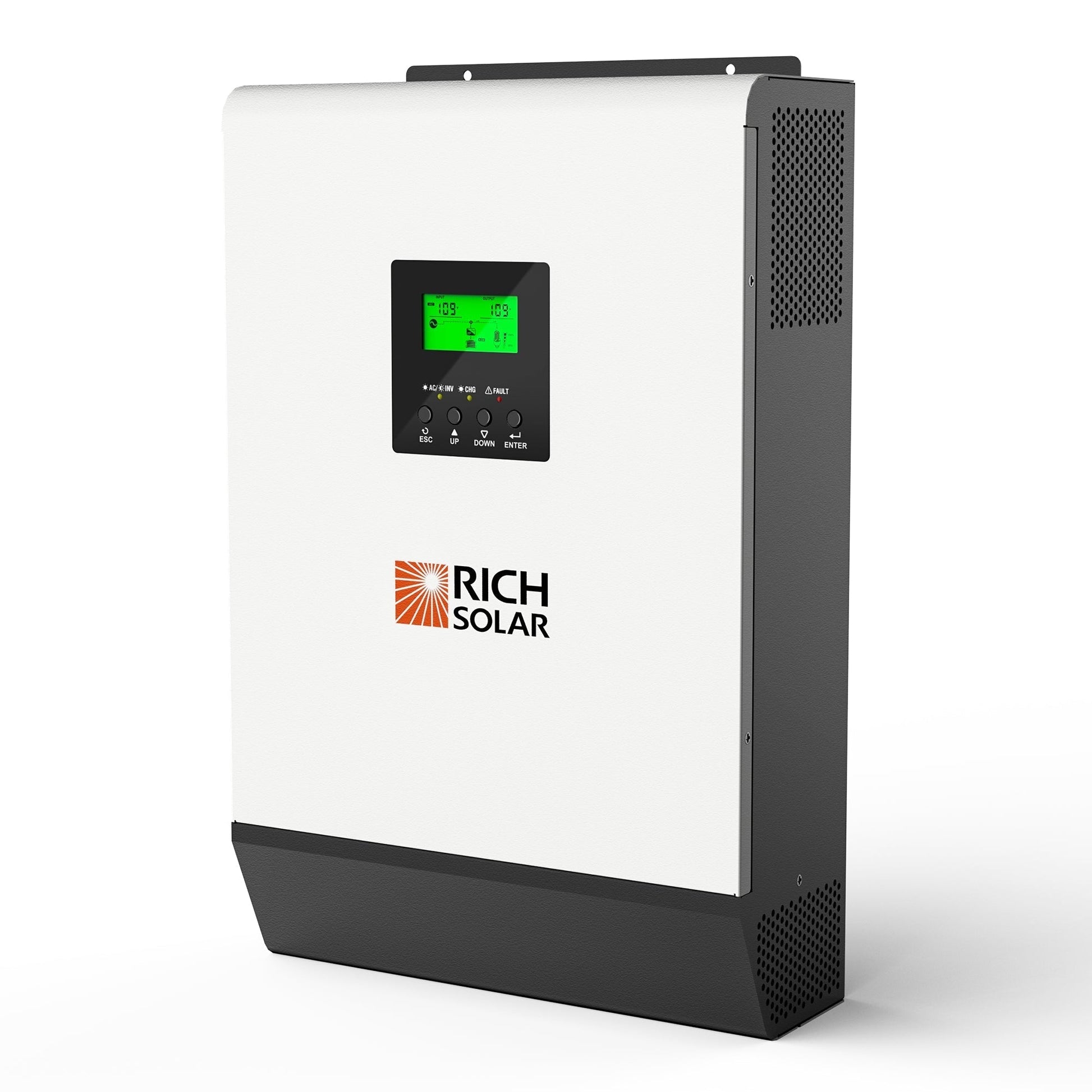

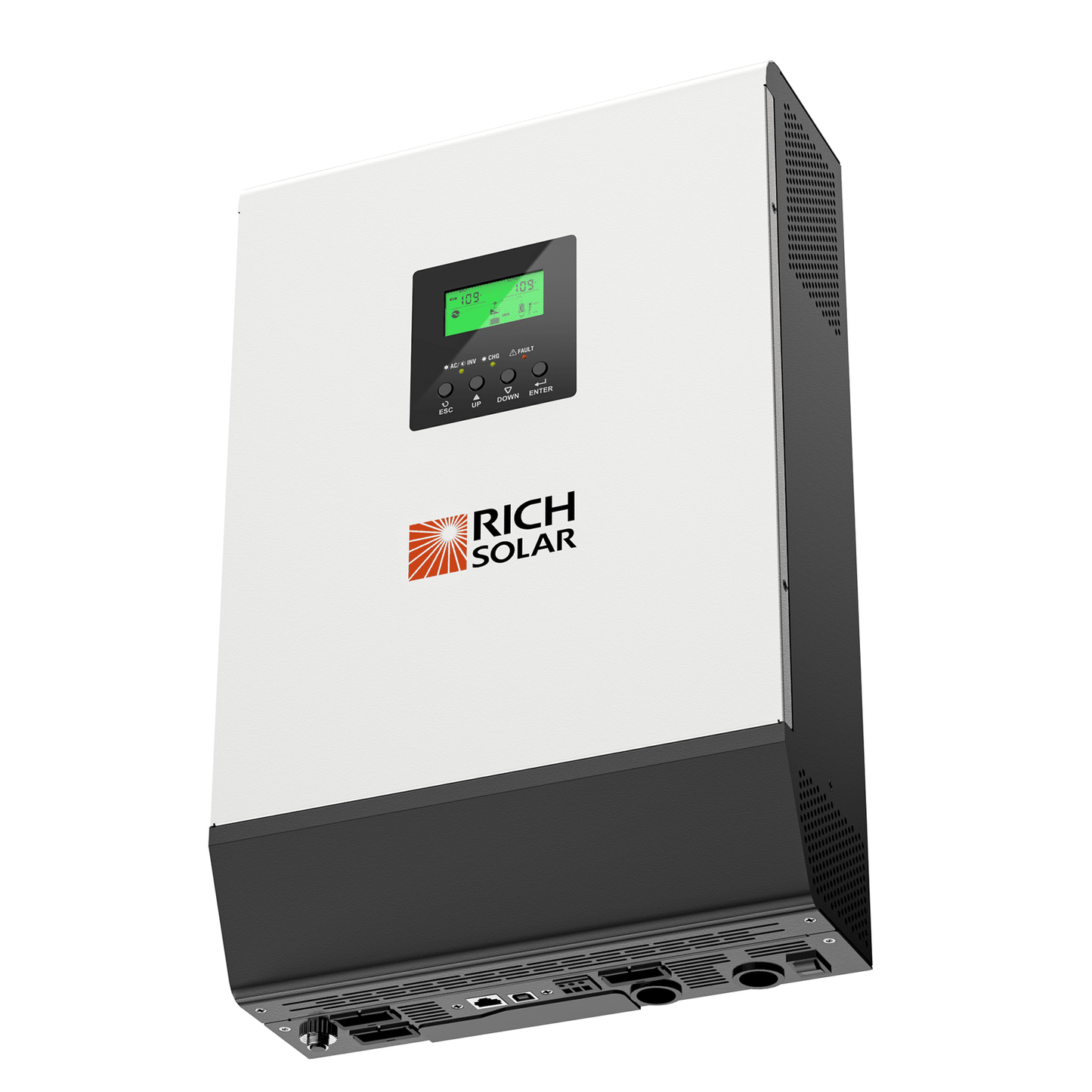

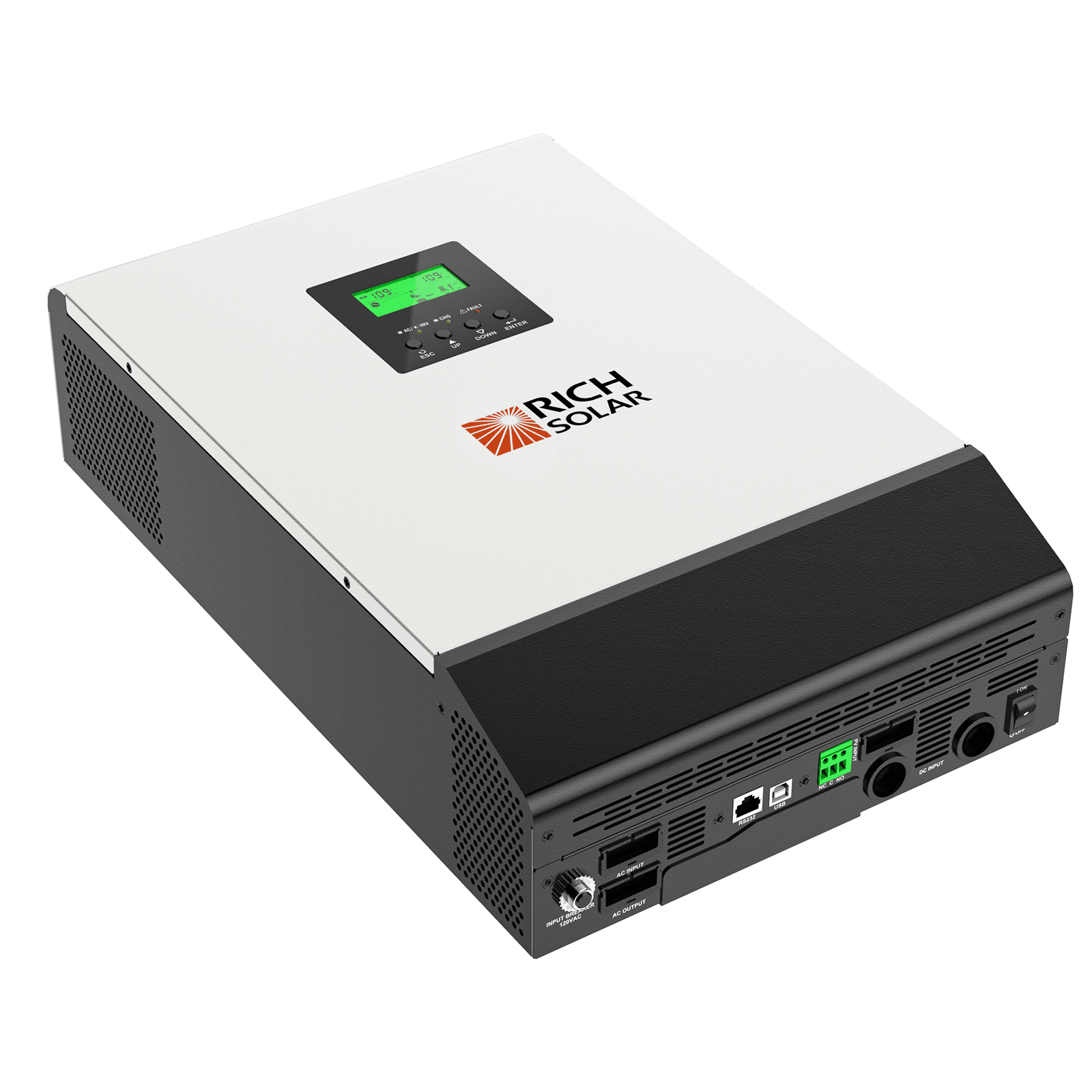

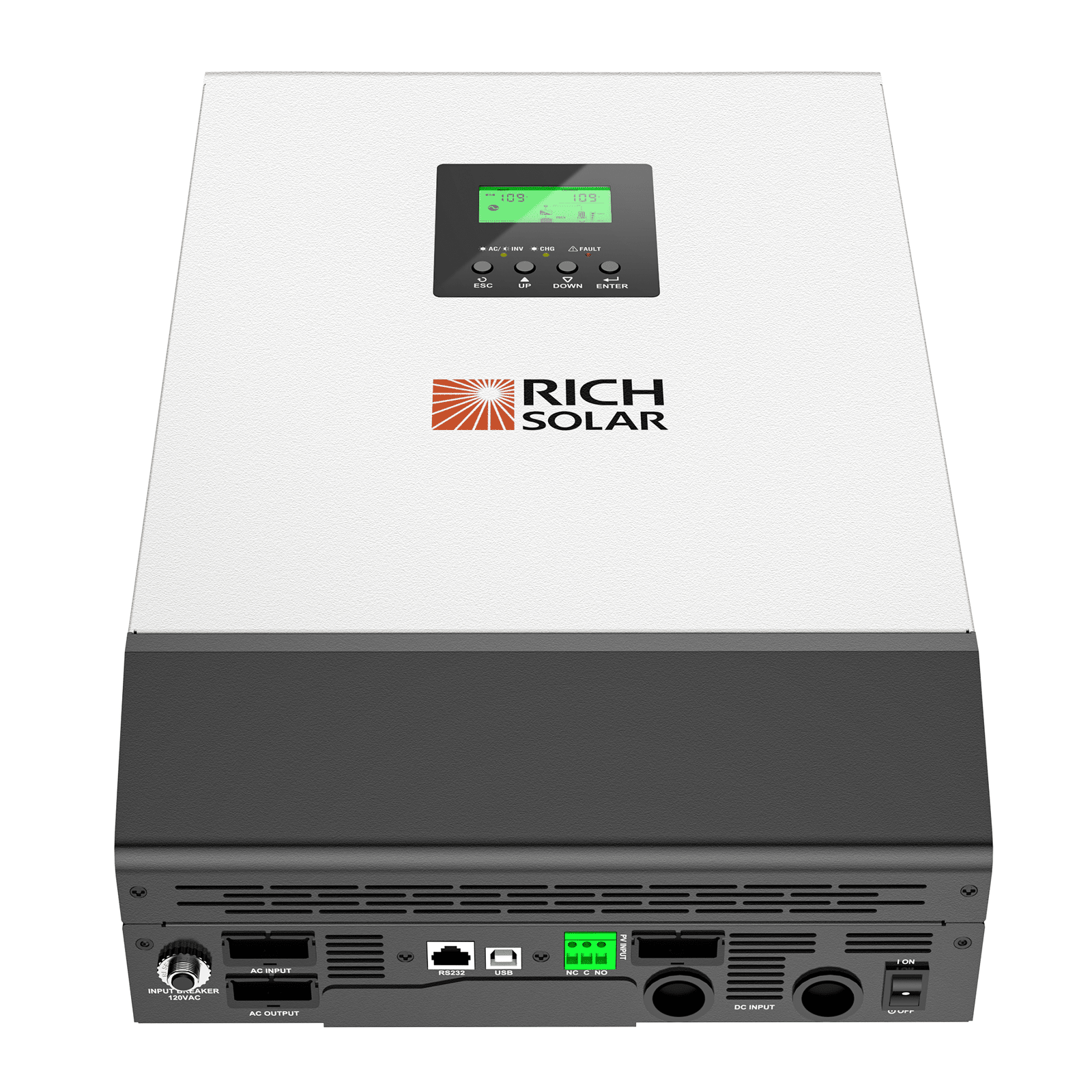

RICH SOLAR Hybrid Off-Grid Inverter | 2400W 24V 120A Output + 2.4kW Solar Input | 80A MPPT Charge Controller (Grid Feedback Optional)

RICH SOLAR Hybrid Off-Grid Inverter | 2400W 24V 120A Output + 2.4kW Solar Input | 80A MPPT Charge Controller (Grid Feedback Optional)

Features

• Pure sine wave output
• Self-consumption and Feed-in to the grid
• Programmable supply priority for PV, Battery or Grid
• User-adjustable charging current and voltage
• Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
• Monitoring software for real-time status display and control
• Parallel-able up to 9 units

Specifications

Model: RS-H2424
Max.PV Array Power: 2400W
Maximum PV Array Open Circuit Voltage: 145 VDC
MPPT Range @ Operating Voltage: 30 VDC ~ 115 VDC
Number of MPP Tracker: 1 .

GRID OUTPUT (AC)

Nominal Output Voltage: 101/110/120 VAC
Rated Output Power: 2400W
Output Voltage Range:
89~111 VAC @ 101 VAC output
97~121 VAC @ 110 VAC output
106~132 VAC @ 120 VAC output
Output Frequency Range:
47.5~51.5Hz @ 50Hz
57.5~61.5Hz @ 60Hz
Nominal Output Current:
29.7A @ 101Vac
27.2A @ 110Vac
25.0A @ 120Vac
Power Factor: >0.99

EFFICIENCY

Maximum Conversion Efficiency (DC/AC): 85%

OFF-GRID, HYBRID OPERATION

AC Start-up Voltage / Auto Restart Voltage: 60 - 70 VAC / 90 VAC
Acceptable Input Voltage Range: 65-140 VAC or 85-140 VAC
Maximum AC Input Current: 40A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage: 101/110/120 VAC
Rated Output Power: 2400W / 3000VA
Output Waveform: Pure Sine Wave
Efficiency (DC to AC): 90%

BATTERY & CHARGER

Nominal DC Voltage: 24 VDC
Maximum Charging Current (from Grid): 60A
Maximum Charging Current (from PV): 80A
Maximum Charging Current: 140A

PHYSICAL

Dimension, D X W X H (mm): 120 x 295 x 468
Net Weight (kgs): 11

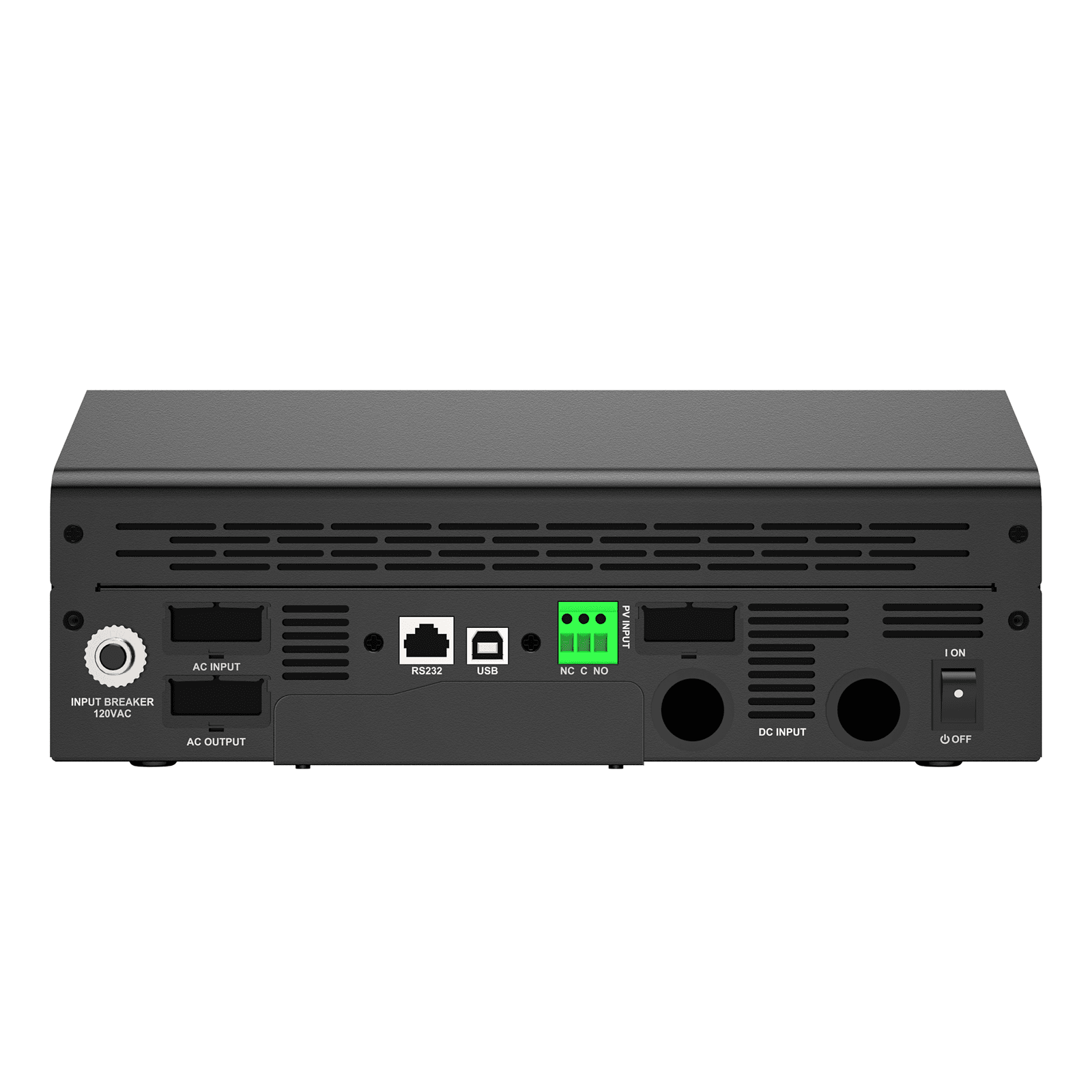

INTERFACE

Parallel-able: Yes. Single phase, Split phase, Three phase
External Safety Box (Optional): Yes
Communication: USB or RS-232/Dry contact

ENVIRONMENT

Humidity: 0 ~ 90% RH (No condensing)
Operating Temperature: 0 to 50°C

What Our Experts Think

• Compact Hybrid Solution: The RICH SOLAR Hybrid Off-Grid Inverter | 2400W 24V is an efficient and versatile inverter ideal for smaller off-grid applications, combining solar power generation with backup grid support, making it suitable for homes, cabins, or small businesses.
• 2400W Power Output: With a 2400W output and 24V configuration, this inverter is designed to handle moderate power demands, providing reliable electricity for essential appliances, lighting, and electronics, while being energy-efficient.
• 2.4kW Solar Input: The 2.4kW solar input ensures robust solar power generation, making this system ideal for locations with good sunlight exposure. The inverter maximizes solar energy use, reducing reliance on grid electricity.
• 80A MPPT Charge Controller: The included 80A MPPT (Maximum Power Point Tracking) charge controller ensures optimal solar energy harvesting by adjusting to changing sunlight conditions. This enhances charging efficiency, ensuring faster and more reliable battery charging.
• Grid Feedback Option: The inverter’s grid feedback feature provides flexibility for users who want to integrate their off-grid system with the utility grid, offering the possibility of feeding excess energy back into the grid for potential savings or incentives.
• Durable & Easy to Install: Designed for durability and simplicity, this inverter is built to withstand varying weather conditions, while the straightforward installation process makes it accessible for both DIY and professional setups.
• Energy Monitoring & Efficiency: The inverter features integrated monitoring systems, allowing users to track energy production, consumption, and battery status, optimizing the overall energy flow for maximum efficiency.
• Cost-Effective & Scalable: This inverter offers a cost-effective solution for users with moderate energy needs, while also allowing future upgrades or additions of solar panels or batteries to scale up the system as required.

Q&A

Q: What is the RICH SOLAR Hybrid Off-Grid Inverter (2400W 24V)?
A: The RICH SOLAR Hybrid Off-Grid Inverter is a 2400W inverter designed for off-grid applications, with 24V input and 120A output, featuring an integrated 80A MPPT charge controller and optional grid feedback.

Q: What is the maximum solar input for this inverter?
A: This inverter supports a maximum solar input of 2.4kW, allowing it to handle solar panel systems of similar size for efficient off-grid power generation.

Q: What is an MPPT charge controller and how does it work?
A: The built-in 80A MPPT (Maximum Power Point Tracking) charge controller optimizes energy harvest from solar panels, ensuring the most efficient conversion and charging of the battery bank.

Q: Can this inverter provide backup power?
A: Yes, it can provide reliable backup power in off-grid settings or as part of a hybrid system that switches between solar, battery, and grid power (when grid feedback is enabled).

Q: How does the RICH SOLAR Hybrid Inverter function with grid feedback?
A: The optional grid feedback feature allows the inverter to send excess power back to the grid, reducing electricity costs and potentially earning credits, making it a versatile hybrid solution.

Q: How much power can the 2400W inverter support?
A: The inverter provides 2400W of continuous output, suitable for running essential off-grid appliances such as lights, small appliances, or low-power equipment.

Q: What are the benefits of using a hybrid inverter?
A: The hybrid inverter offers flexibility, combining solar power, battery storage, and grid support, ensuring uninterrupted power supply and greater energy independence.

Q: Is this inverter suitable for off-grid solar systems?
A: Yes, it is designed for off-grid solar systems, providing the necessary power conversion and battery charging capabilities for remote homes, cabins, or RVs.

Q: Can I expand the system with additional solar panels or batteries?
A: Yes, the system can be expanded by adding more solar panels or batteries to meet higher energy demands.

Q: Is installation of the RICH SOLAR 2400W inverter easy?
A: While the inverter is designed for easy installation, it’s recommended to have a professional install it to ensure proper integration with solar panels, batteries, and the grid (if applicable).

Q: How long will the RICH SOLAR Hybrid Off-Grid Inverter last?
A: With proper maintenance, this inverter has a long lifespan, typically lasting 10-15 years or more, depending on usage.

Maintenance Tips

• Cleaning: Regularly wipe down the inverter and charge controller with a soft, dry cloth to remove dust and debris. Avoid using water or harsh chemicals.
• Cooling: Ensure proper ventilation around the inverter and charge controller. Keep vents unobstructed to prevent overheating.
• Battery Monitoring: If connected to batteries, check battery charge levels and health regularly. Clean terminals to prevent corrosion and ensure secure connections.
• Wiring Check: Inspect all wiring and connections for wear, corrosion, or loose terminals. Tighten or replace as needed to ensure safe and efficient operation.
• MPPT Charge Controller: Periodically check the MPPT charge controller settings and monitor performance to avoid overcharging or discharging of batteries.
• Software Updates: Keep the inverter's software updated and monitor system logs to ensure the system is running efficiently.
• Grid Feedback (Optional): If using grid feedback, ensure that the system is properly synchronized with the grid and all safety protocols are in place.
