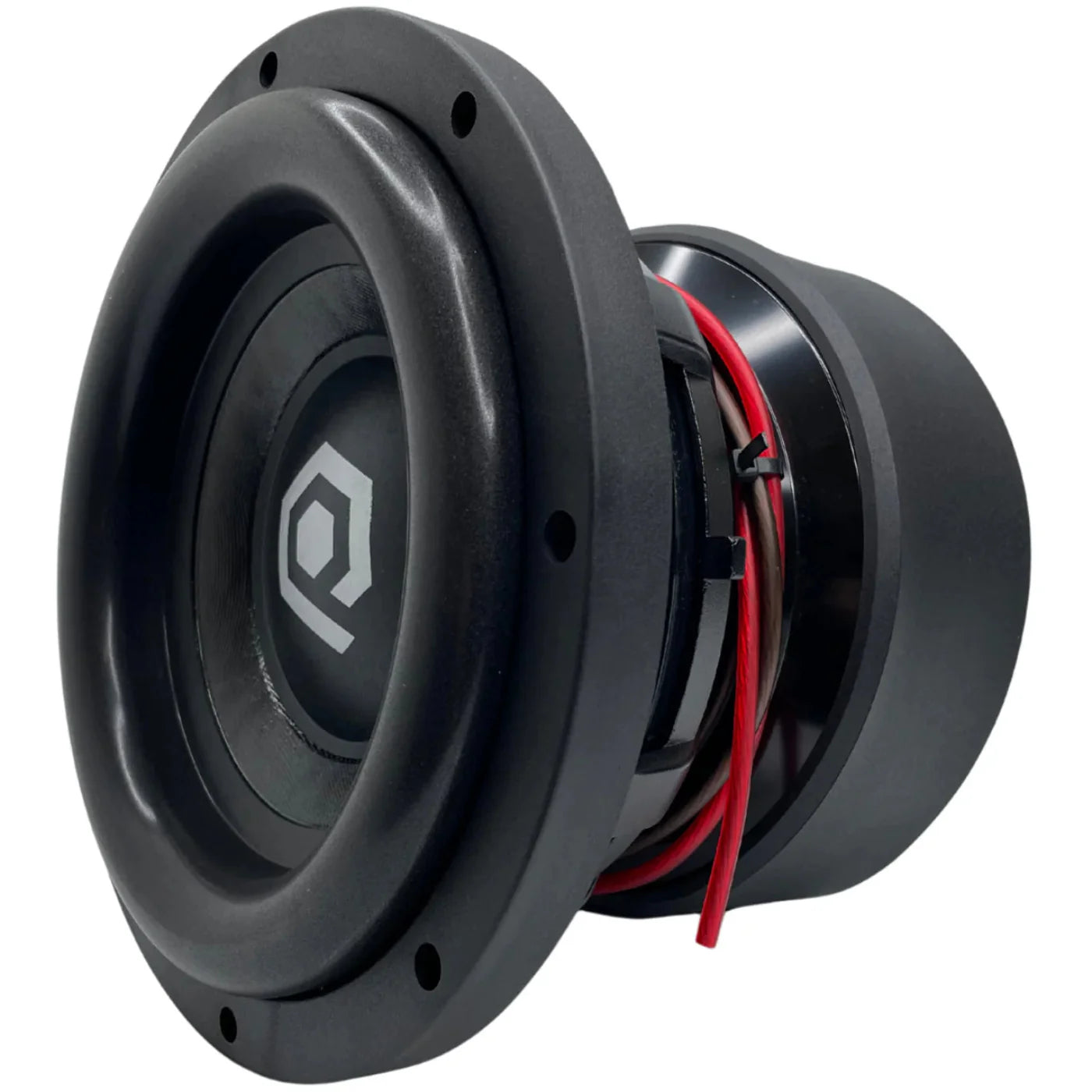

SoundQubed HDX3 10" - SQ-HDX3-10
The HDX3 series heavy-duty subwoofer is well suited for use as a competition subwoofer with a beefy, monstrous, made in the USA dual voice coil! Find it in 12 inch, 15 inch and 18 inch sizes!
The HDX3 can handle 1500 Watts RMS power and 4500 Watts Peak power for burps.

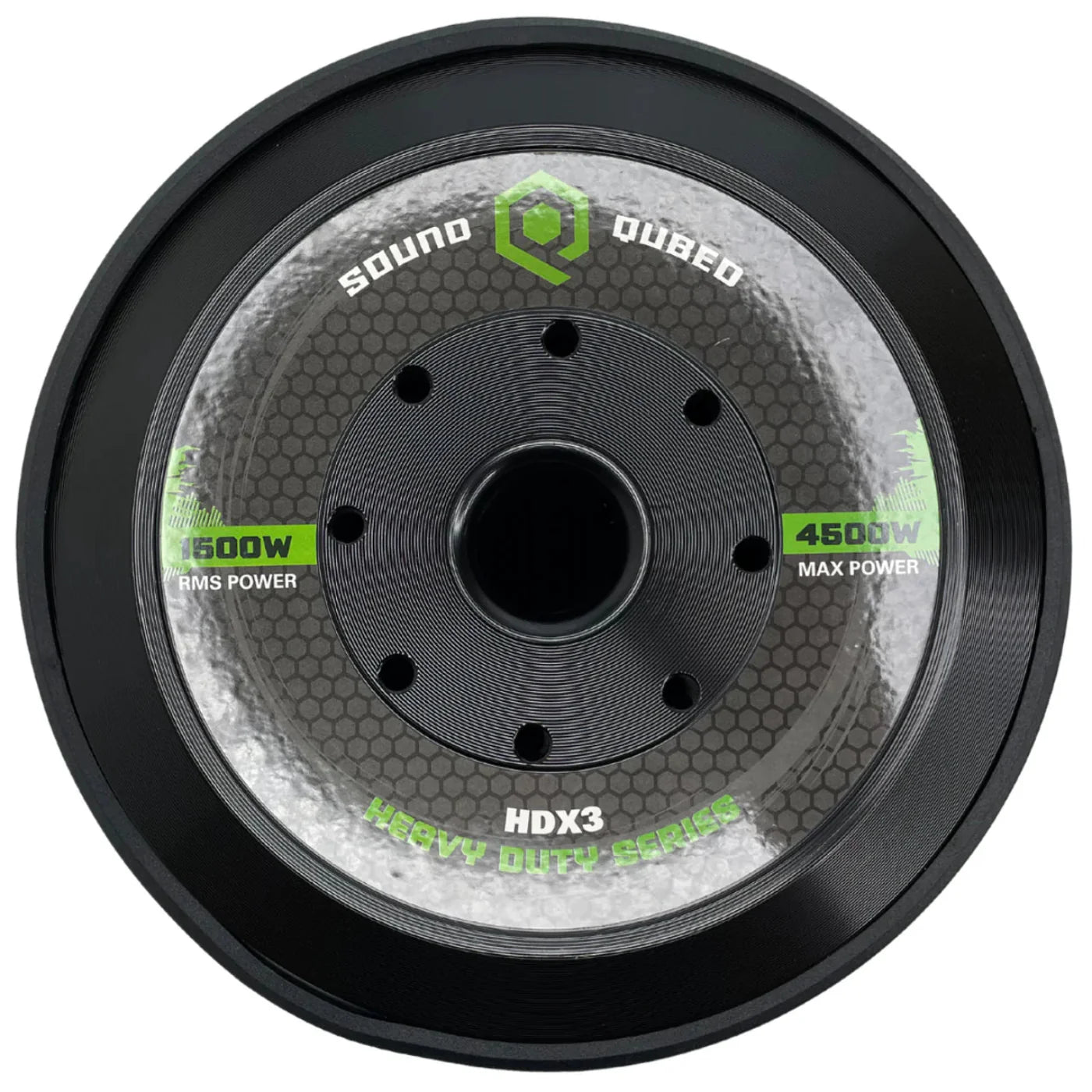

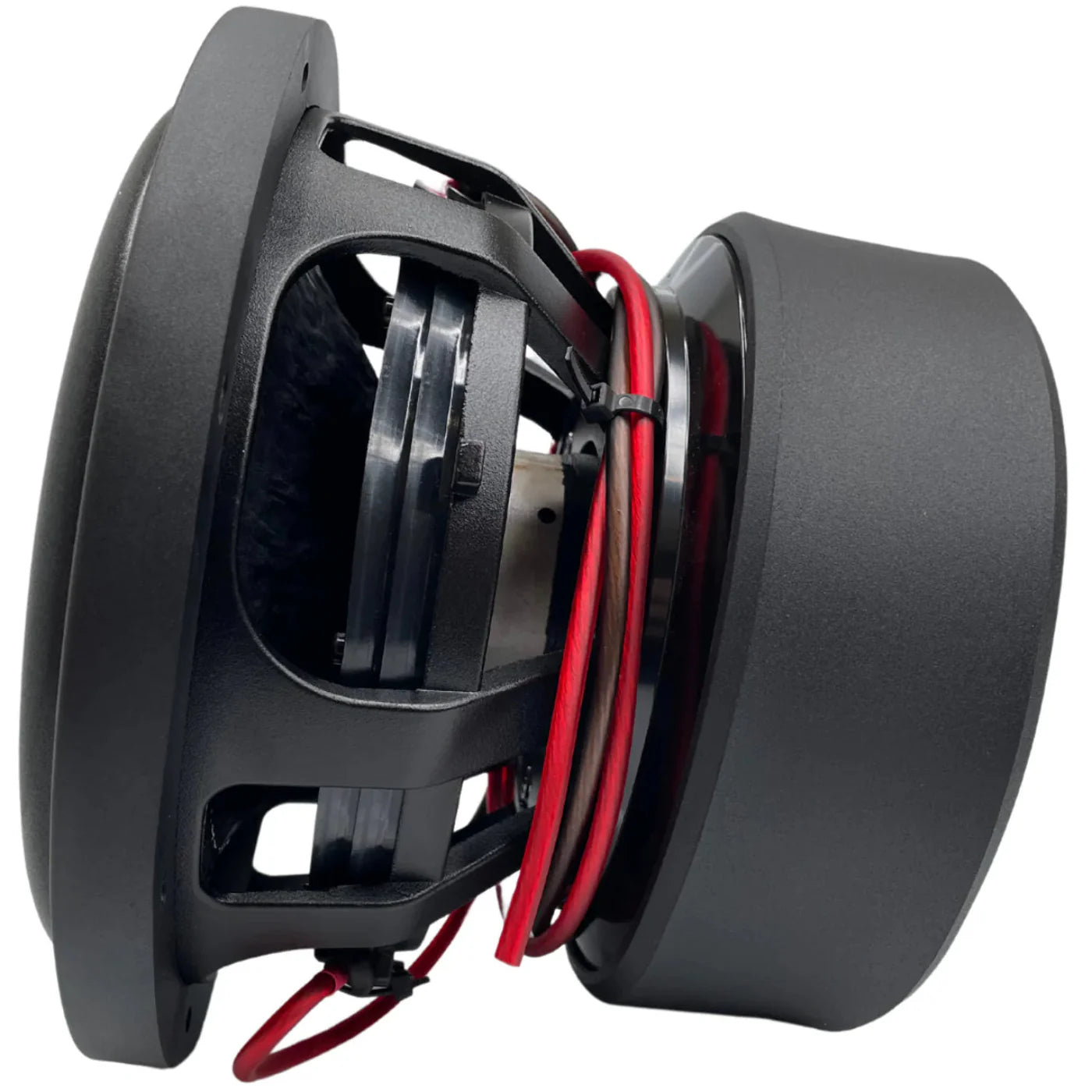

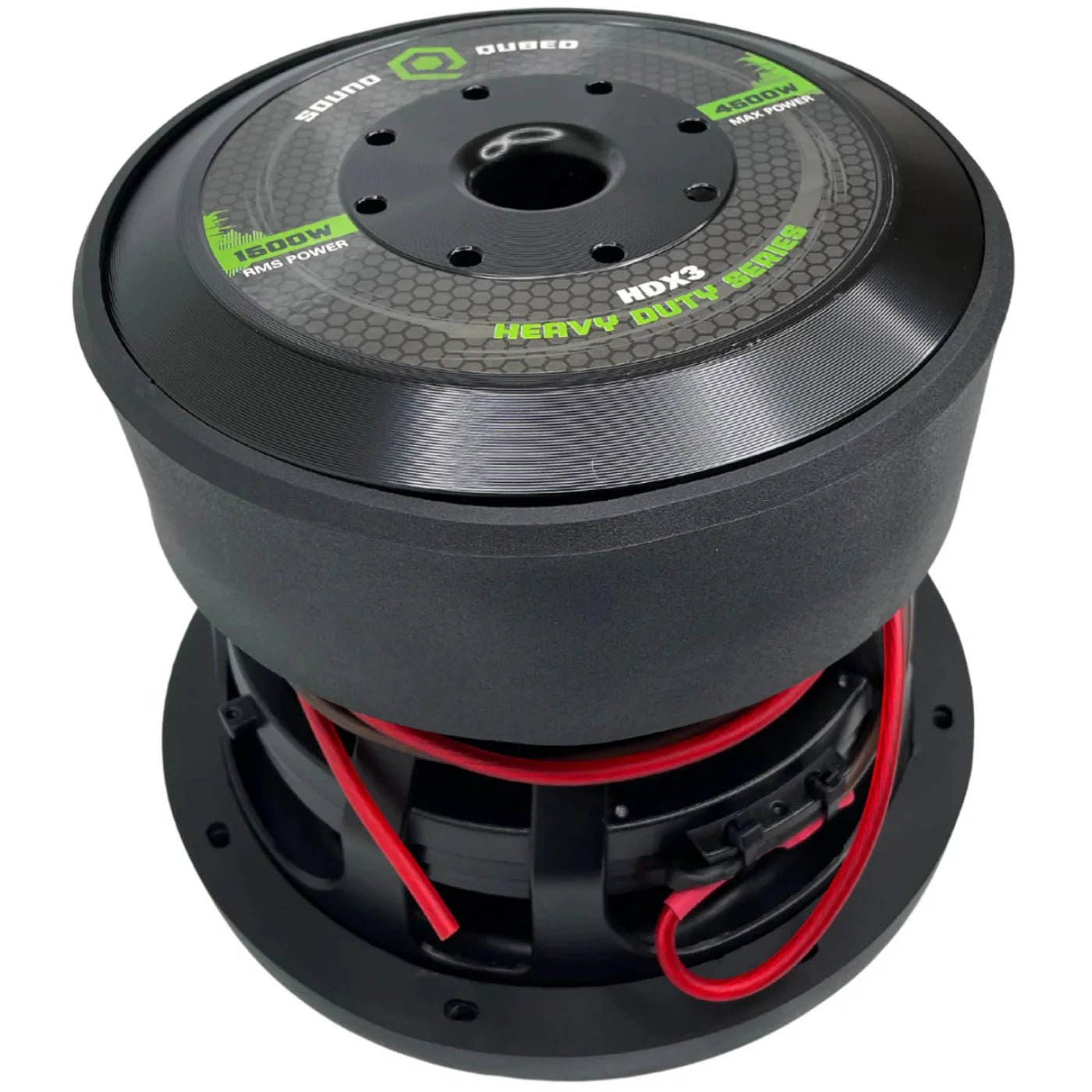

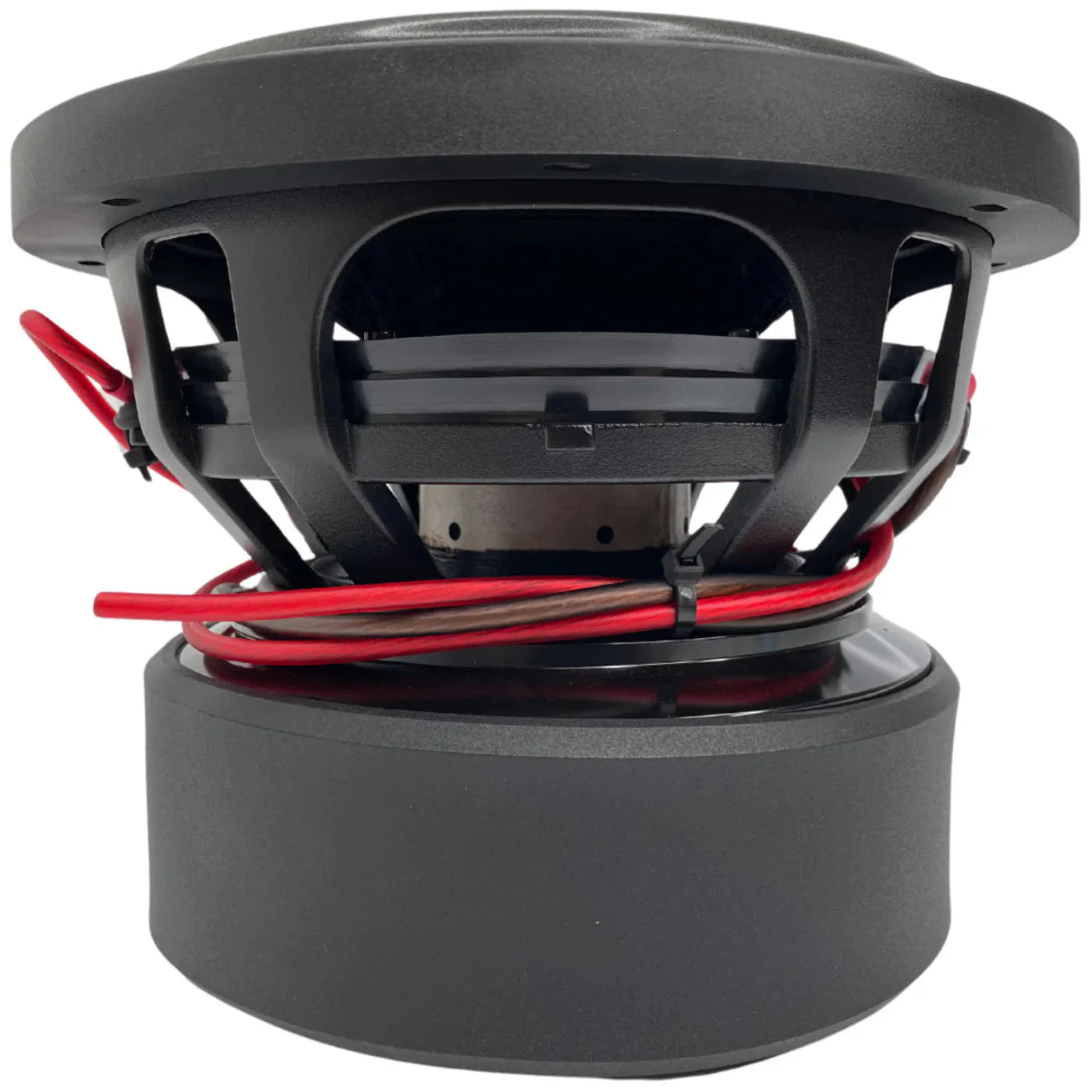

HDX3’s motor features a thick top plate, high motor force, and a tight gap for high-efficiency speaker design. A taller 4-spoke, cast aluminum frame makes room for a larger diameter spider for lower tuning and greater accuracy. The larger diameter spider’s new roll profile allows for low F’s without sacrificing power handling or control.

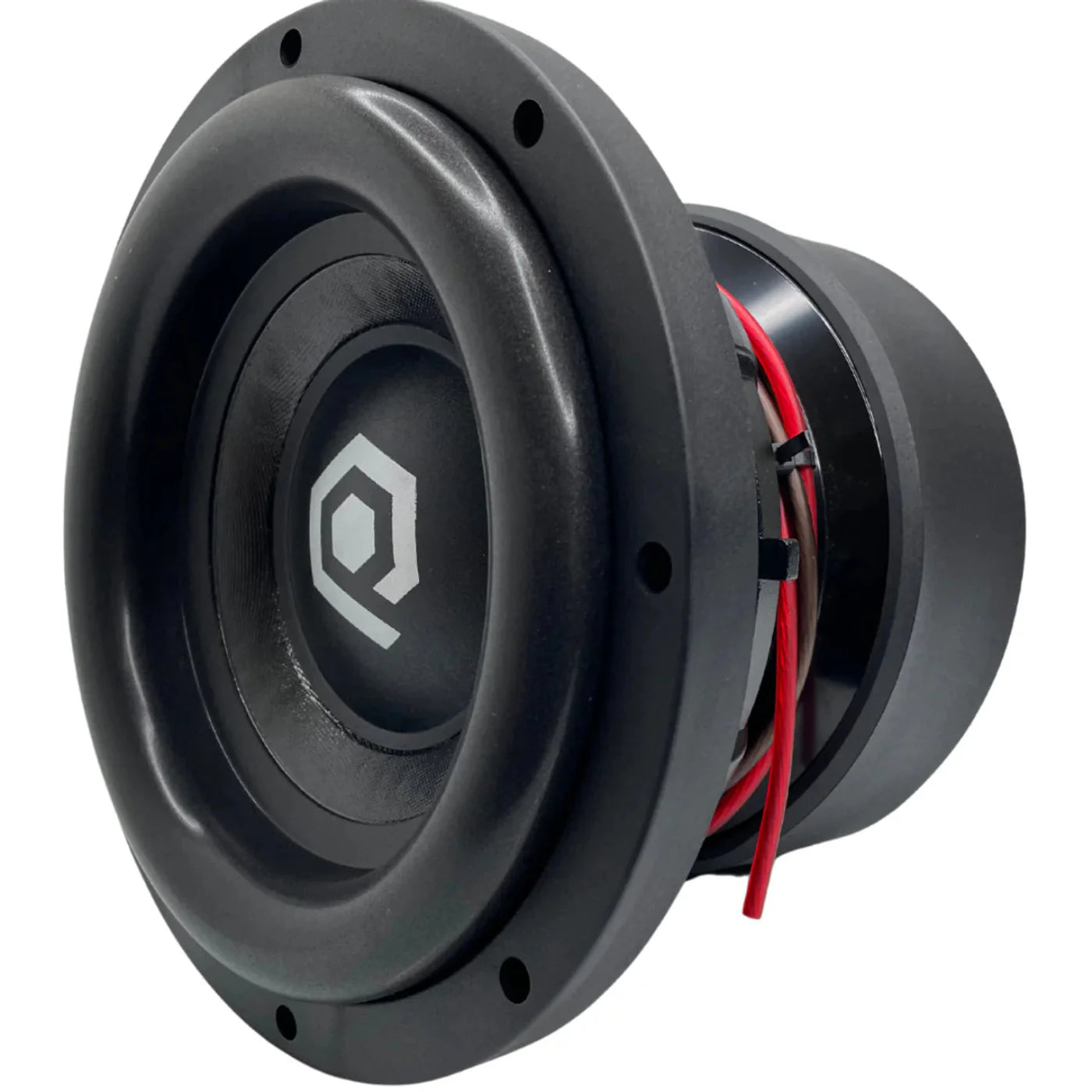

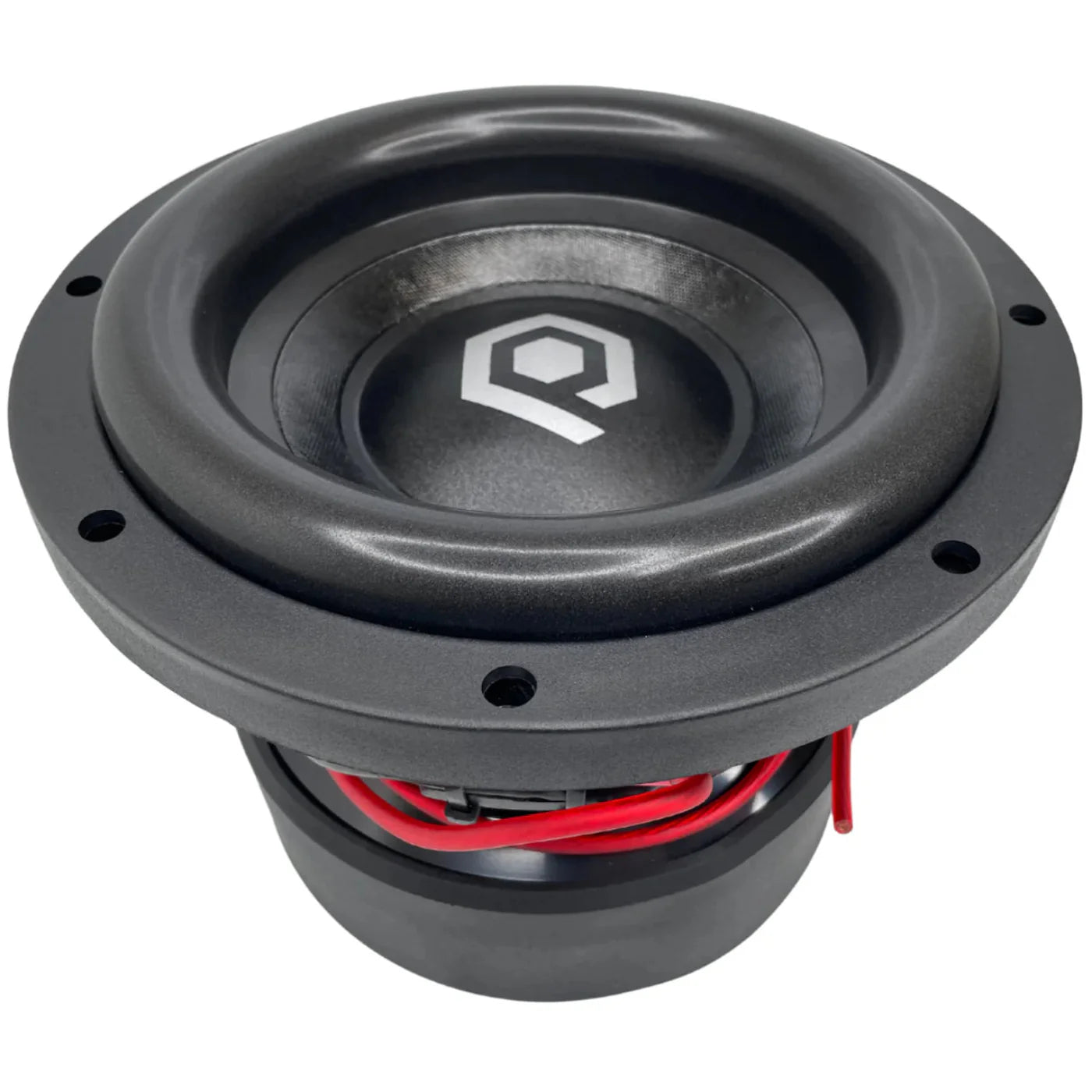

The HDX3’s taller and wider surround allows for even more precise excursion and new pulp-blend cones are stronger than previous fiberglass-laminate designs- And they’re lighter too!
We are ditching the stitching on the 1500 Watt Power Band.
Other improvements over the HDC series subwoofers include the presence of a thicker, more robust aluminum former, as well as black anodizing. Double slit venting and a higher temperature resin are included for increased cooling abilities, enhanced performance, and a longer subwoofer life.
Specifications
| Model |
HDX310 |
HDX312 |
HDX315 |
HDX318 |
| RMS Power |
1500 W |
1500 W |
1500 W |
1500 W |
| Peak Power |
4500 W |
4500 W |
4500 W |
4500 W |
| Magnet Weight |
300 oz |
300 oz |
300 oz |
300 oz |
| Coil Diameter |
3" |
3" |
3" |
3" |
| Coil Length |
50 mm |
50 mm |
50 mm |
50 mm |
| Usable Throw |
68 mm |
68 mm |
68 mm |
68 mm |
| Woofer Size |
10" |
12" |
15" |
18" |
| F(s) |
30.04 Hz |
26.92 Hz |
26 Hz |
27.59 Hz |
| Impedance |
D1/D2 |
D1 / D2 |
D1 / D2 |
D1 / D2 |
| Q(ms) |
4.88 |
4.95 |
4.847 |
5.777 |
| Q(es) |
0.285 |
0.3409 |
0.3665 |
0.4724 |
| Q(ts) |
0.267 |
0.3189 |
0.3408 |
0.4367 |
| V(as) |
12.98 Liters |
28.59 Liters |
78.08 Liters |
168.6 Liters |
| M(ms) |
281.4 grams |
440.9 grams |
472.8 grams |
410.9 grams |
| C(ms) |
0.074 |
0.079 |
0.082 |
0.081 |
| Sensitivity 1W/1m |
83.9 dB |
84.03 dB |
87.41 dB |
90.64 dB |
| Xmax |
36mm |
36mm |
36mm |
36mm |
| Sd |
.044 m2 |
0.051 m2 |
0.082 m2 |
.121 m2 |
| Displacement |
0.14³ |
0.16³ |
0.18³ |
0.23³ |
| Mounting Depth |
7 13/16" |
8 7/8" |
9 1/2" |
10.5" |
| Circle Cutout |
9 3/8" |
11 1/2" |
13 7/8" |
16 9/16" |
| Ported Enclosure (Cu Ft): |
1.25-1.75 FT³ |
1.75-2.75 FT³ |
3-6 FT³ |
5-7 FT³ |
What Our Experts Think
-
High-Excursion Design: Delivers powerful bass response with minimal distortion.
-
Dual 2-ohm Voice Coils: Offers wiring flexibility to match various amplifier configurations.
-
Rugged Construction: Built with a reinforced cone and durable surround to withstand high power levels.
-
Ideal for Sealed Enclosures: Performs optimally in compact, sealed boxes, making it suitable for space-constrained installations.
-
Versatile Application: Perfect for both daily driving and SPL competitions, providing a balance between sound quality and output.
Q&A
Q: What is the SoundQubed HDX3 10" Subwoofer?
A: A high-performance 10-inch subwoofer engineered for deep bass and powerful sound in car audio systems.
Q: How much power does it handle?
A: Handles up to 600W RMS, delivering clean and dynamic low-end sound with impressive punch.
Q: Is it compatible with my audio setup?
A: Yes, it's ideal for both sealed and ported enclosures, offering versatility for various car audio builds.
Q: What makes the HDX3 unique?
A: Built with a durable design, high excursion capabilities, and advanced cooling technology for optimal performance.
Q: Why choose the HDX3 10" Subwoofer?
A: Offers exceptional sound quality and reliability, making it perfect for those seeking deep, impactful bass.
Maintenance Tips
-
Proper Break-In: Follow the recommended break-in procedure to allow the suspension to loosen for better performance and longevity.
-
Correct Enclosure: Use an appropriate sealed or ported enclosure that matches the specifications for optimal sound and power handling.
-
Wiring and Amplification: Ensure proper impedance matching between the subwoofer and amplifier. Use quality wires to prevent power loss and potential damage.
-
Regular Inspection: Periodically check for damage to the cone, dust cap, and surround. Address any issues promptly to avoid sound distortion or failure.
-
Avoid Overpowering: Don't exceed the subwoofer’s rated power to prevent distortion and potential damage. Use an amplifier that matches the subwoofer’s RMS power rating.
-
Environment: Keep the subwoofer dry and away from excessive moisture, which can damage components over time.
