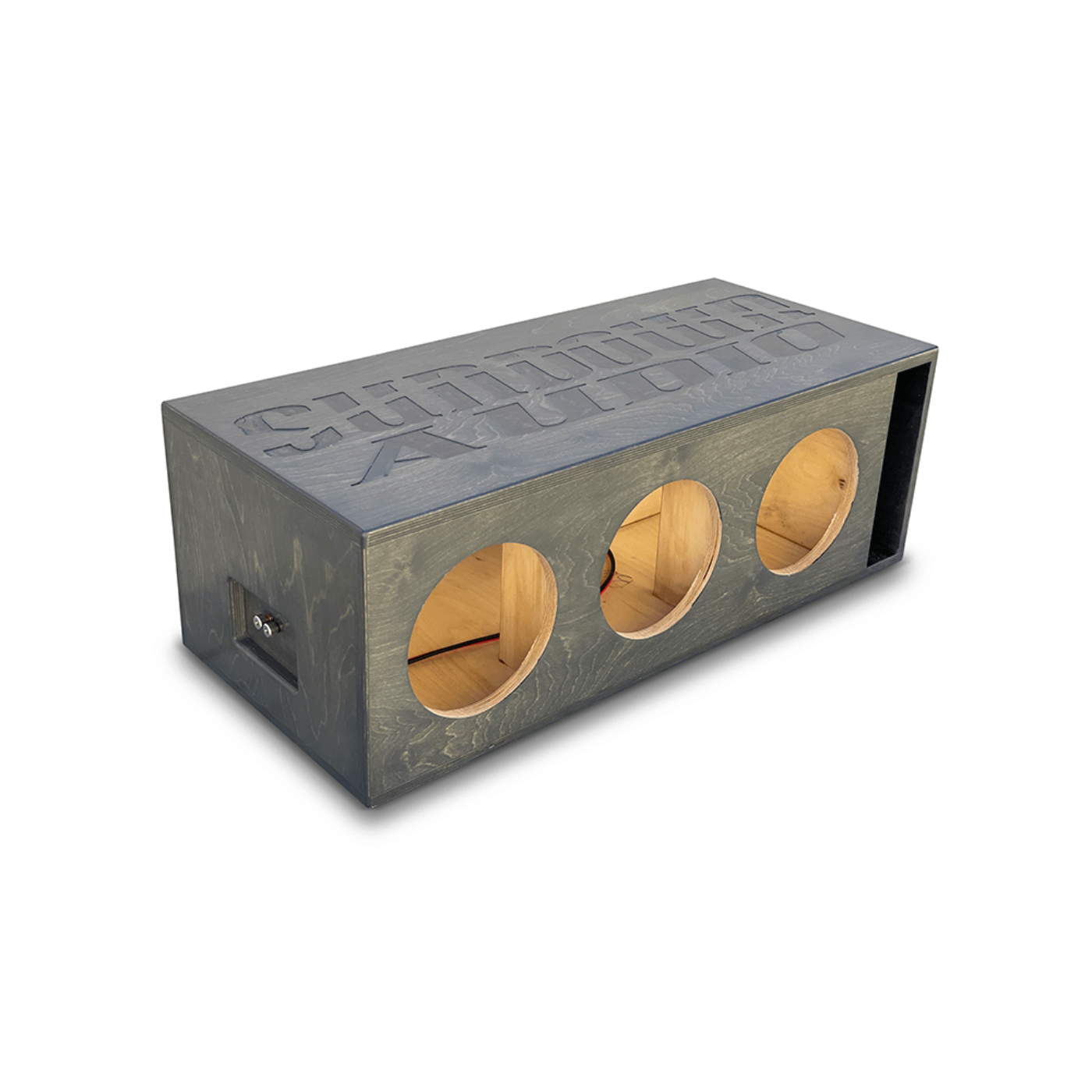

Sundown Audio Triple 8" Xv2 Ported Enclosure - AABE-SA-Xv2-T8-RD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for three Sundown Audio Xv2 8" subwoofers. At Basshead Supply the goal with the “branded series” enclosures is to offer a well build, well performing and good looking enclosure at an affordable price. Using premium ¾” Baltic Birch all around with a 1” baffle for added baffle strength, we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 18mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle subwoofer setups up to 2000W RMS (dual enclosures – 4000W RMS). Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.
Custom built enclosure specifically for three Sundown Audio Xv2 8" subwoofers.
Specifications
| Net Internal Volume |
3.0 cubic feet |
| Tuning Frequency |
34 Hz |
| Port Area |
39.96 sq in |
| Port Dimensions |
13.5" (L) x 2.96" (H) |
| Subwoofer Cutout Diameter |
7.36" |
| Enclosure Material |
3/4" (18mm) Birch Plywood |
| Baffle Construction |
Solid 1" (24mm) Baffle |
| Center Brace |
3/4" (18mm) Center Baffle Brace |
| Plywood Construction |
13-ply Birch Veneer (1” Baffle: 17-ply) |
| Finish |
Gray Stained |
| Terminal Type |
Pre-wired Metal Binding Post |
Dimensions/Weight
- 15" tall
- 33" wide
- 18″ deep
What Our Experts Think
-
Optimized for Triple Xv2 8"s: Purpose-built to extract full SPL and low-end depth from three Sundown Xv2 8" subwoofers.
-
High Output, Low Profile: Compact ported design delivers surprisingly powerful bass in a tight space.
-
Durable and Road-Ready: Constructed from premium MDF with internal bracing to handle high power and hard hits.
-
Flared Port Engineering: Reduces turbulence, boosts efficiency, and ensures clean, distortion-free bass.
-
Perfect for Space-Limited Builds: Ideal for trucks or compact installs needing serious low-end punch.
Q&A
Q: What is the Sundown Audio Triple 8" Xv2 Ported Enclosure?
A: A compact, high-performance ported enclosure built specifically for three Sundown Audio 8" Xv2 subwoofers, engineered to deliver deep, clean, and punchy bass.
Q: Is this enclosure tuned for daily use or SPL setups?
A: Tuned for loud, clear daily use with strong SPL potential—ideal for enthusiasts who want serious bass from small drivers.
Q: What materials is it made from?
A: Built from ¾" MDF with internal bracing and precision port tuning for enhanced strength, airflow, and accurate sound reproduction.
Q: Will it fit other 8" subwoofers?
A: No, it’s specifically designed for the Sundown Audio 8" Xv2. Other subs may not fit or perform correctly.
Q: Is the enclosure pre-assembled?
A: Yes, it comes fully assembled—just mount your Xv2 subs and wire them in.
Maintenance Tips
-
Regular Cleaning: Gently wipe the gray-stained birch veneer surface with a soft, dry cloth to prevent dust accumulation and preserve the finish.
-
Inspect for Damage: Periodically examine the subwoofers and ports for any signs of wear, such as cracks or tears, especially after extended use.
-
Amplifier Matching: Ensure your amplifier's power output aligns with the subwoofers' recommended specifications to prevent overdriving.
-
Maintain Ventilation: Place the enclosure in a well-ventilated area to allow proper airflow and prevent overheating during prolonged use.
-
Secure Installation: Mount the enclosure securely to minimize vibrations and avoid potential damage to the subwoofers.
