| Size |
1-1/4 inches |
| Material |
Brass, Bronze |
| Weight |
3.25 pounds |
| Connection Type |
Threaded |
| Flow Capacity (Cv) |
17.3 |
| Depth |
9 inches |
| Width |
9 inches |
| Height |
4 inches |
What our Experts Think
-

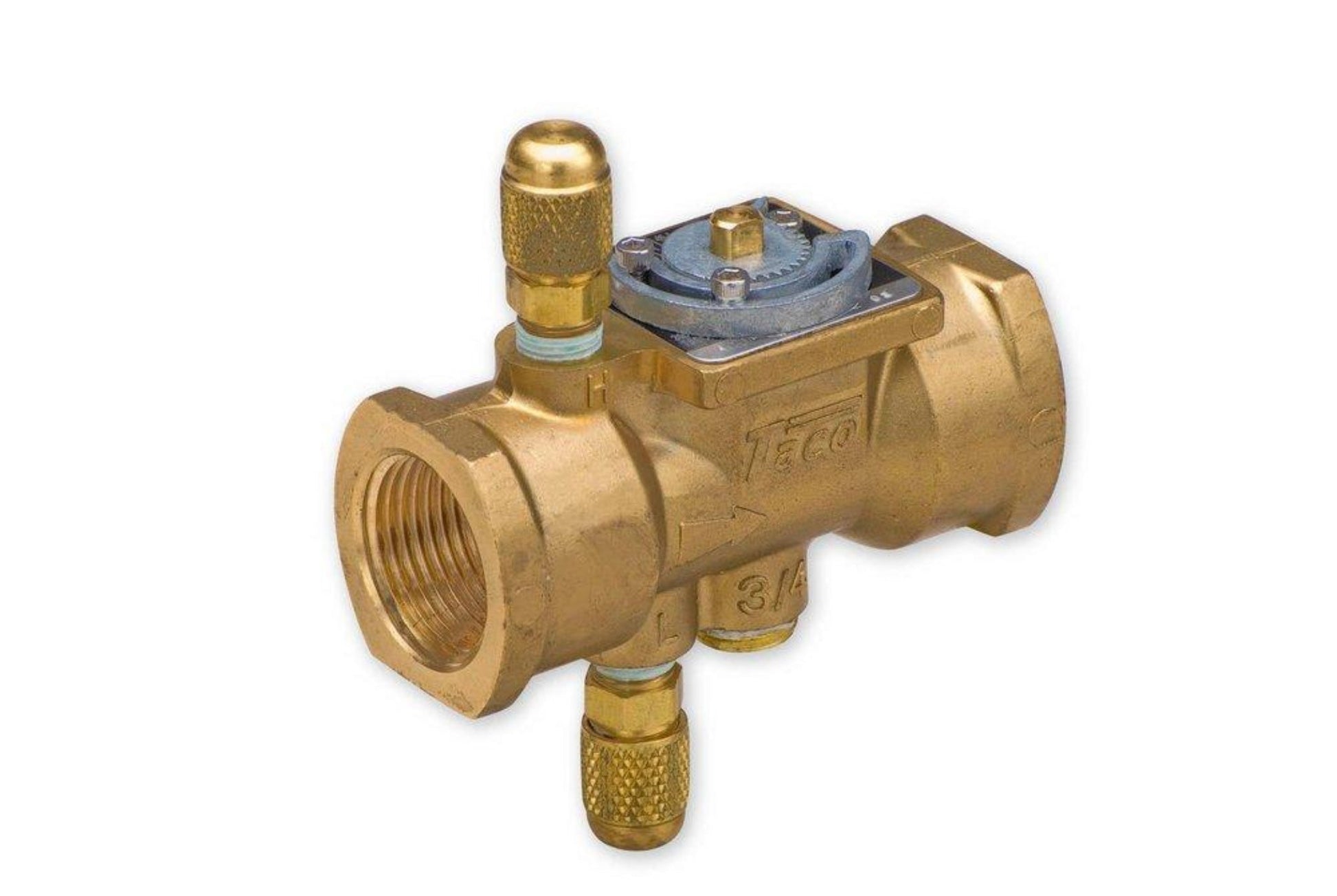

Superior Accuracy: The Taco ACUF-125-AT-2 features a modified venturi design, providing 4–5 times greater accuracy than traditional variable orifice balancing valves.
-
Independent Flow Measurement: Flow measurement is independent of stem and ball position, ensuring consistent performance and eliminating the need to read the nameplate setting to determine flow.
-
Durable Construction: With a bronze body and brass interior parts, this valve is designed for long-lasting durability and resistance to corrosion.
-

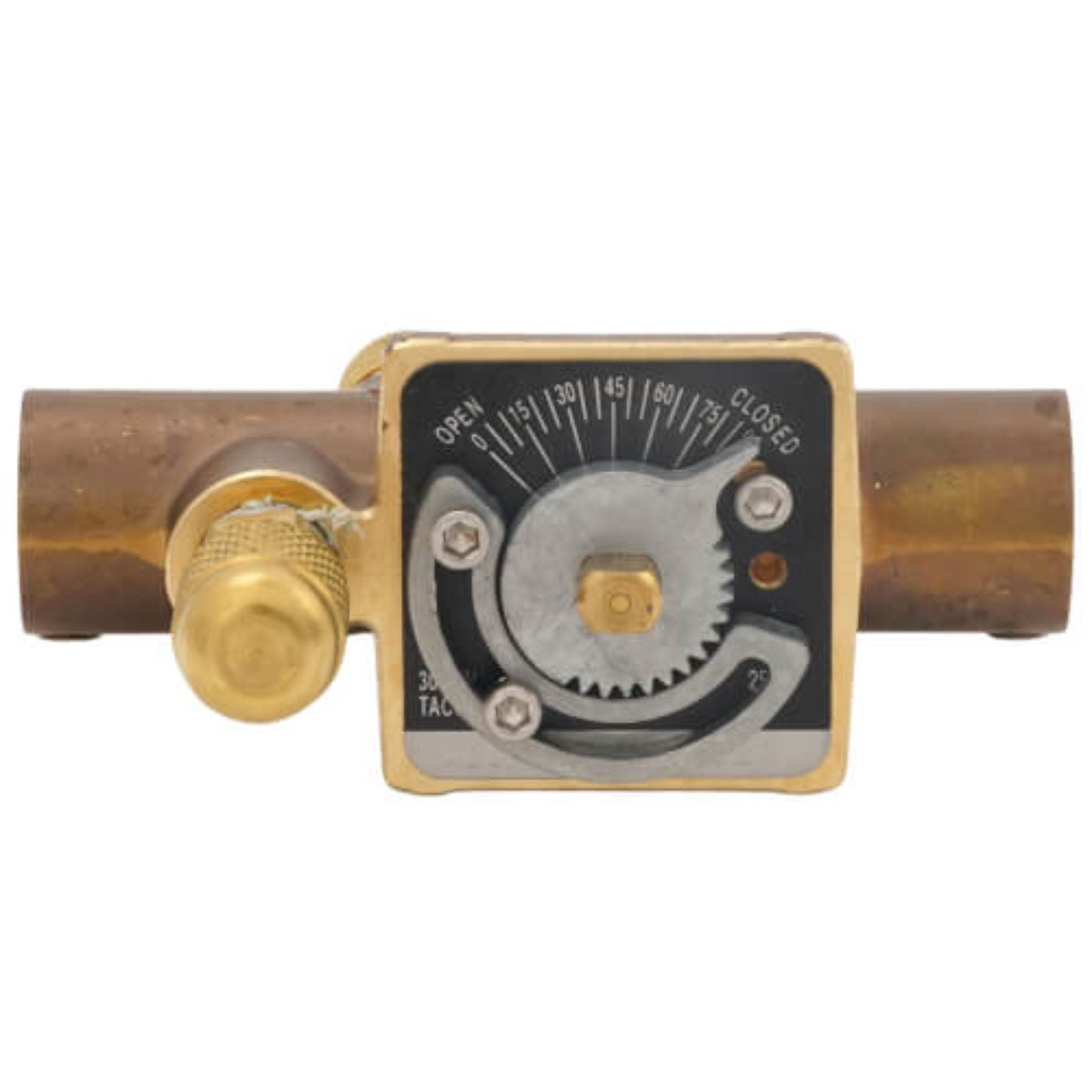

Tamper-Resistant Memory Stop: Equipped with a tamper-resistant memory stop, it allows for accurate resetting and ensures the system remains balanced over time.
-
Positive Shut-Off: Provides a positive shut-off, ensuring complete closure and preventing unwanted flow when needed.
-
Versatile Applications: Ideal for use in hot water heating systems, closed cooling circuits, air conditioning systems, hydronic heating, and cooling, water/glycol systems, and solar/geothermal applications.
Q&A
Q: What is the Taco ACUF-125-AT-2 Balancing Valve?
A: The Taco ACUF-125-AT-2 is a precision 1-1/4" threaded ACCU-FLO balancing valve designed for hydronic heating and cooling systems. It features a fixed-port venturi design for highly accurate flow measurement and system balancing.
Q: What is the valve used for?
A: This valve is used for balancing flow in hydronic systems, including commercial HVAC, boiler and chiller systems, and closed-loop heating/cooling applications.
Q: Is it suitable for potable water?
A: Yes, the valve can be used in potable water systems when installed in accordance with local codes and using approved materials.
Maintenance Tips
-
Inspect Regularly: Check for leaks, corrosion, or signs of wear. Ensure fittings are secure and free from debris.
-
Protect During Soldering: Always close the valve before soldering. Avoid direct heat to prevent internal damage—use low-temp solder only.
-
Flush System Before Use: Before installation, flush the piping system to clear out particles that might clog the valve.
-
Adjust Flow Precisely: Use the calibrated memory stop to accurately set and reset flow without re-reading the dial.
-
Monitor Pressure: Use pressure taps for flow verification. Always ensure gauges are appropriate for system pressure.
-
Avoid Excessive Force: Do not overtighten during installation or adjustment. Use proper tools for valve control.
-
Store Properly: If not in use, store in a dry, temperature-controlled area to prevent rust or degradation.
