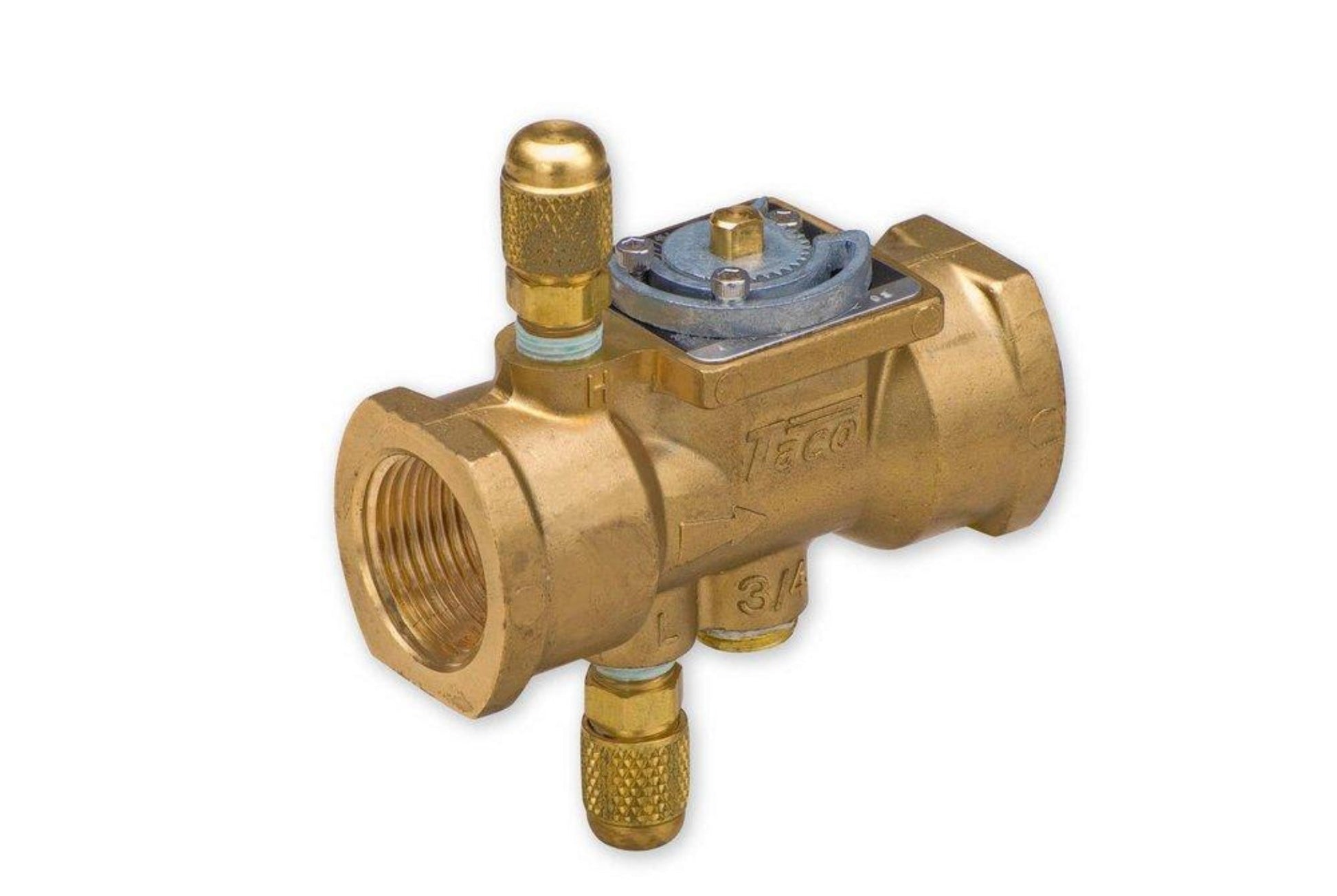

Taco ACUF200AT2 2 in IPS Circulator Setter - ACUF200AT2
The Taco 2 in IPS Circulator Setter, MPN ACUF200AT2, provides precision flow measurement and balancing for hydronic systems.
Product Highlights
This product ensures reliable performance and compatibility with various HVAC systems, making it suitable for trade professionals.
Features
- Accurate flow measurement independent of stem and ball position.
- Calibrated nameplate with tamper-resistant memory stop.
- Blowout-proof stem and positive shut-off feature.
Specifications
| Flow Capacity (Cv) |
62.3 |
| Size |
2 inches |
| Connection Type |
Threaded |
| Material |
Brass, Bronze |
| Weight |
7 pounds |
| Shipping Depth |
9 inches |
| Shipping Width |
9 inches |
| Height |
4 inches |
What our Experts Think
-
Enhanced Accuracy: The Taco ACUF200AT2 uses a modified venturi design, delivering 4–5 times greater accuracy than traditional variable orifice balancing valves.
-
Independent Flow Measurement: The flow measurement is independent of the stem and ball position, ensuring consistent performance without needing to read the nameplate setting to determine the flow.
-

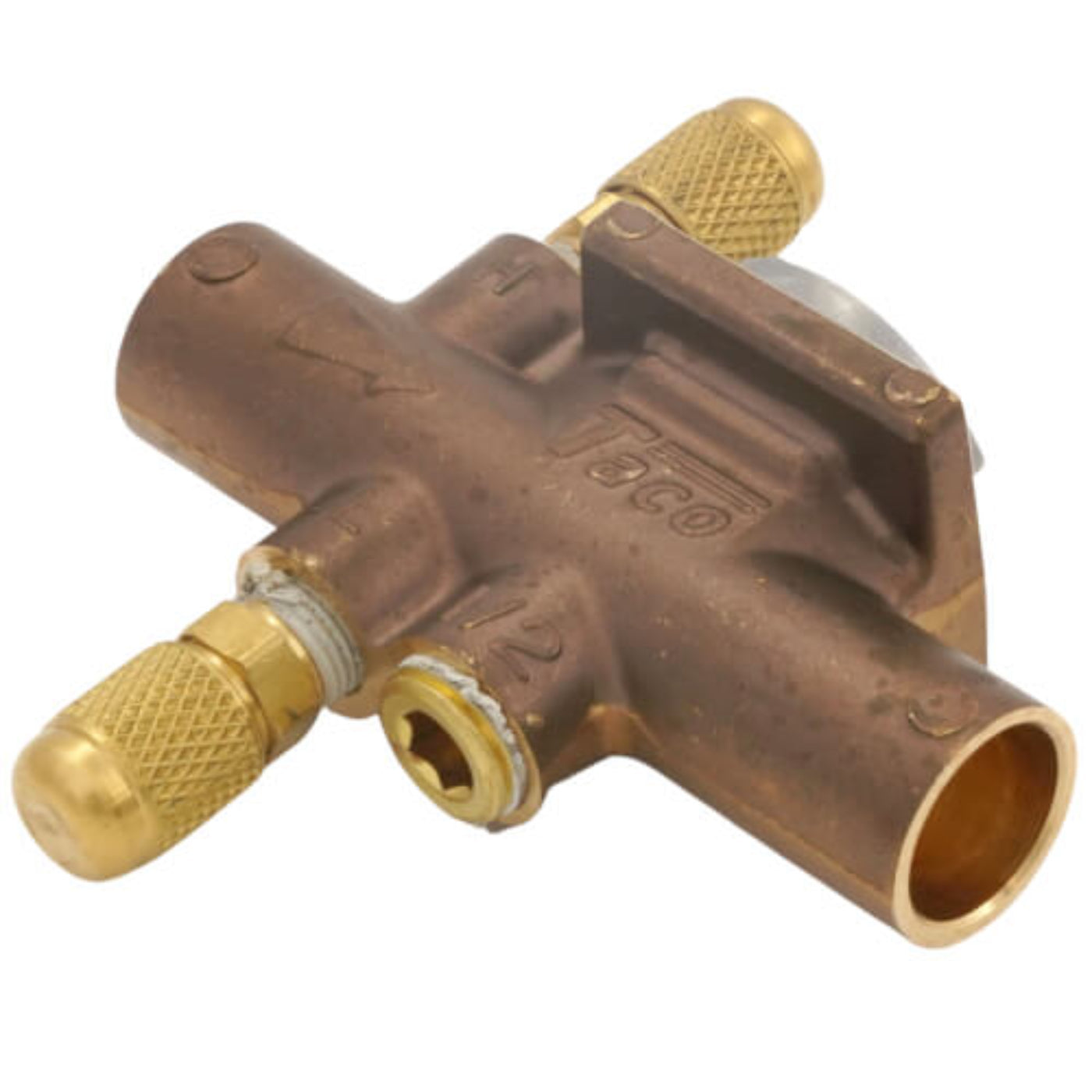

Durable Construction: Featuring a bronze body with brass interior parts, this valve is designed for long-lasting durability and resistance to corrosion.
-
Tamper-Resistant Memory Stop: The valve includes a tamper-resistant memory stop, ensuring accurate resetting and maintaining system balance over time.
-
Positive Shut-Off: It provides a positive shut-off, ensuring complete closure and preventing unwanted flow when needed.
-
Versatile Applications: Ideal for use in hot water heating systems, closed cooling circuits, air conditioning systems, hydronic heating and cooling, water/glycol systems, and solar/geothermal applications.
Q&A
Q: What is the Taco ACUF-200-AT-2 Circulator Setter?
A: The Taco ACUF-200-AT-2 is a 2-inch IPS threaded Accu-Flo balancing valve designed for accurate flow measurement and system balancing in hydronic heating and cooling systems.
Q: What applications is the Taco ACUF-200-AT-2 suitable for?
A: This valve is ideal for use in hydronic heating and cooling systems, including commercial and industrial HVAC systems, boiler and chiller plants, and closed-loop water systems.
Q: Is the Taco ACUF-200-AT-2 suitable for potable water systems?
A: Yes, the Taco ACUF-200-AT-2 can be used in potable water systems when installed in accordance with local codes and regulations.
Maintenance Tips
-
Regular Inspection: Periodically check the valve for leaks, corrosion, or signs of wear. Ensure that the valve body and connections are intact and free from damage.
-

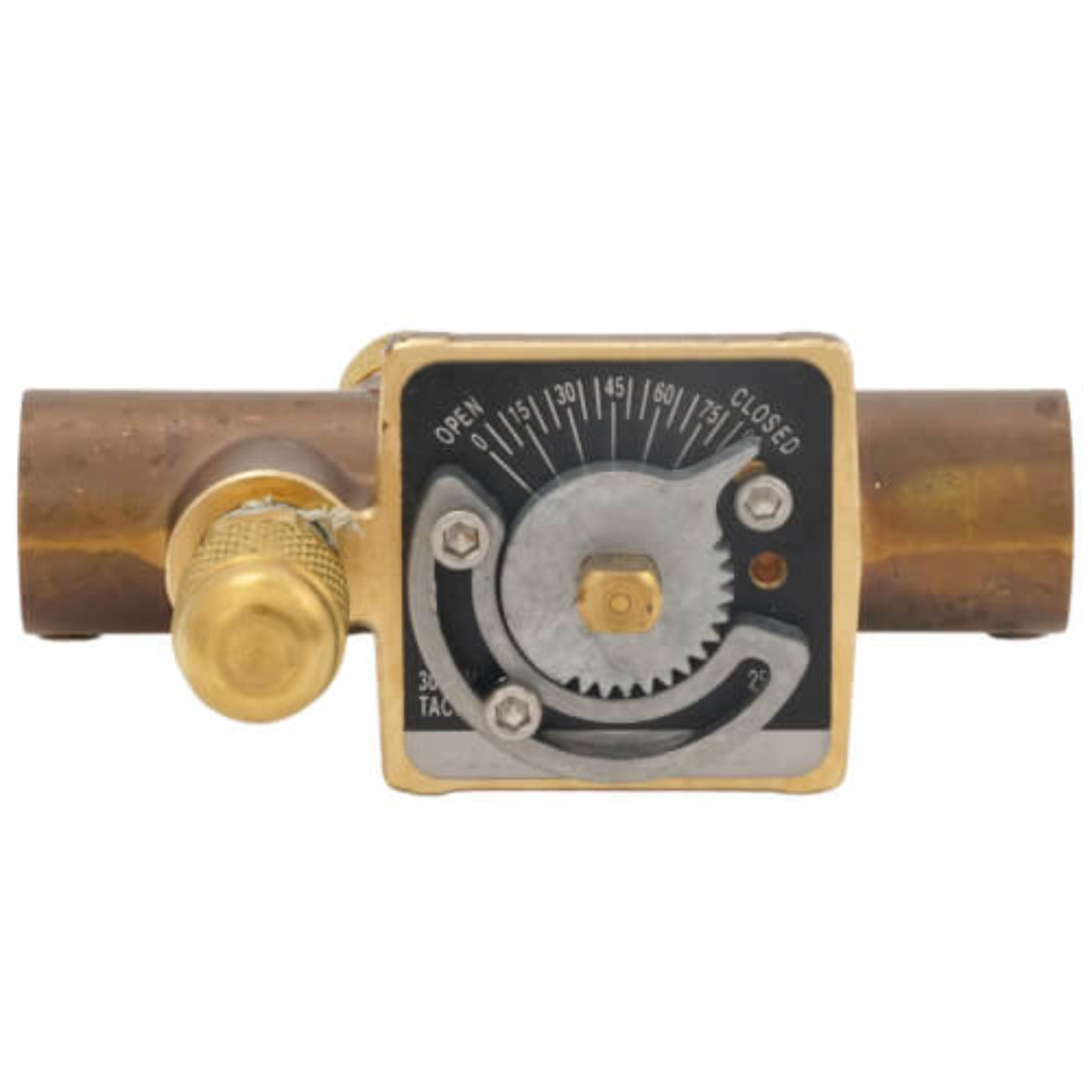

Flow Adjustment: Use the calibrated nameplate to set the desired flow rate. The tamper-resistant memory stop allows for accurate resetting without the need to read the nameplate setting.
-
Pressure Measurement: To measure flow, connect a compatible pressure gauge to the valve's pressure ports. Ensure that the gauge is rated for the expected pressure range and follow safety protocols when handling pressurized systems.
-
Avoid Overheating: When soldering or brazing near the valve, ensure that the valve is in the closed position and protect it from excessive heat. Use low-temperature solders and avoid brazing to prevent damage to internal components.
-
System Flushing: Before installation, flush the system to remove debris that could obstruct the valve's internal components.
-
Storage: If the valve is not in use for an extended period, store it in a dry, clean environment to prevent corrosion and damage.
