Tamarack Solar Four Module Pole Top Mount - TTP-A-4-93

Tamarack Solar Four Module Pole Top Mount - TTP-A-4-93

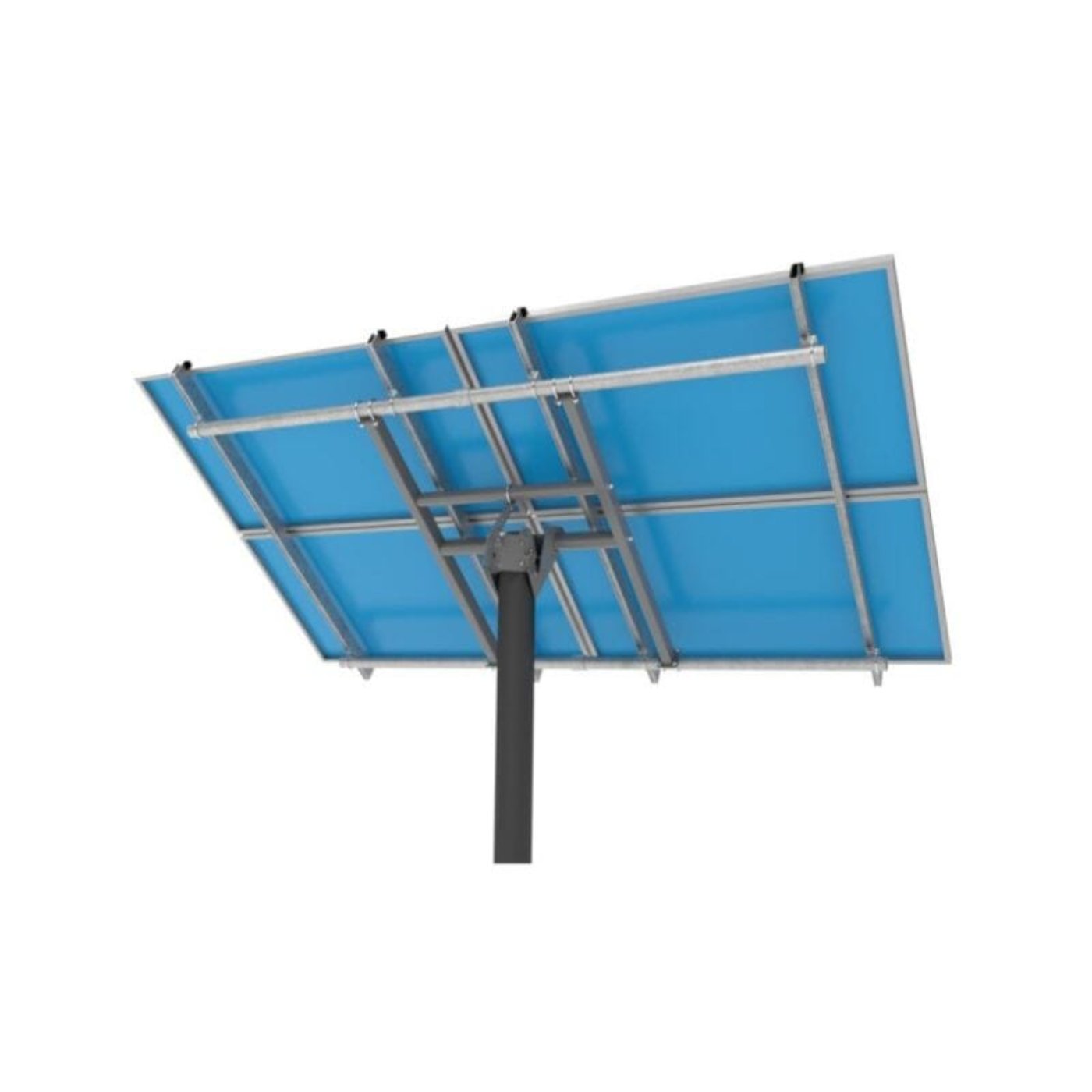

Tamarack Solar TTP-A-4-93 Four Module Pole Top Mount: Mount 4 modules with a total area of 100 square feet or less on a 6-inch Schedule-40 or Schedule-80 pole

Features

• 93-inch rails accommodate 4 modules with widths up to 45.5 inches
• Mounts on user-supplied 6-inch Schedule-40 or Schedule-80 steel pipe
• Module clamps fit frames between 30 to 40 mm deep*
• No complex sizing documents or need to send module data sheets when ordering
• Heavy-Duty steel structure and Tamarack 3.1 aluminum module mounting rails *Deeper frames can be used by adding 50/50+ mounting clamps (Item# 89907, sold separately)
• Module Rails attach to 2-inch Schedule 40 steel pipe. Purchase this pipe locally to save shipping cost or order appropriate length separately. Use two 10-foot pipes for modules up to 78-inches long. Use two 12-foot pipes for modules up to 98-inches long.
• 10° to 60° tilt angle
• UPS Shippable in 4 boxes
• Engineered for up to 160 mph wind speed and up to 200 psf snow load
• Site specific engineering for permit packages is available for an extra fee
