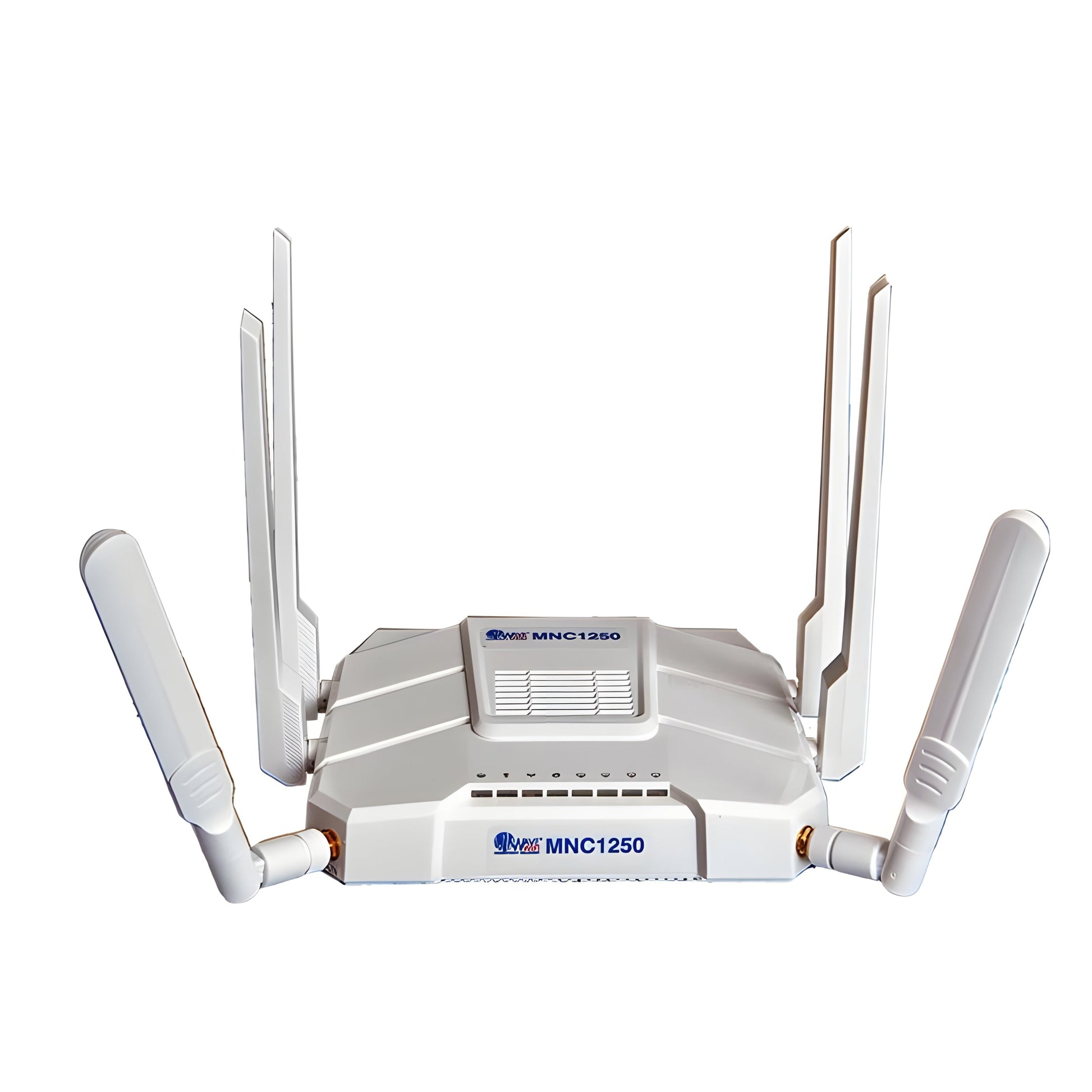

Wave Wifi Mnc1250 Dual Band Wireless Network Controller - WAVMNC1250
The MNC-1250 is a Dual-band 2.4/5Ghz wireless network controller with a built-in SIM slot to access cellular data sources, dual internal access points, gigabyte ports, multi-source failover functionality, and a host of other robust features to complete a vessel’s networking needs. Our MNC-1250 provides full usage exposure while providing the ability to control by source/by login code/or by a user with features to manage accessibility, cap data, limit bandwidth, and blacklist macs and/or URLs from one easy to access browser-based page on any chosen device.
The SIM slot is designed to be universal and works with most SIM cards used throughout the world allowing users the ability to connect to a variety of cellular networks. The ability to easily remove and replace the SIM means that users can choose their own providers based on the locations they travel to, and the availability of service in any given area. For example, in one’s Homeport provider "A" may have the best service and their SIM can be used. When traveling to another state if coverage is better on provider "B" then one of their SIMS can be used. If the vessel leaves the country or is foreign-based, a foreign SIM for example from a Canadian, Bahamian, or Mexican carrier can be acquired and used while in the prospective country. This versatility of coverage and the ability to pay directly for cellular connectivity to the source country instead of relying on roaming agreements are ideal for cruisers.
The MNC 1250 is the most advanced and fastest marine network controller Wave Wi-Fi has developed to date and works well on all sizes and types of vessels.
Features
- User Access Management
- WAN Port selection for multiple devices
- WANs are independent sub-nets
- Built in SIM card slot 3G/4G/LTE-A
- Allow & Block MAC addresses
- Dual Band Broadcast Access Points
- Bandwidth Capping by Port / Source
Specifications
| Wireless Type |
Cellular and Internal Access Points |
| Ethernet Speed |
Gigabit Ports |
| Internal Access Point (AP) |
Dual Band broadcasts 802.11 a/b/g/ n/ac 2.4 GHZ and 5GHz |
| Power |
DC Power 12v - 2 a |
| Antenna Connectors |
(2) Fixed WiFi [AP] 2.4GHz
(2) Fixed WiFi [AP] 5GHz
(2) SMA Female [Cell] 3G/4G/LTE-A |
What's in the Box
- MNC1250 Router
- (2) Access Point antennas
- (2) Cellular 4G Rubber Duck Antennas
- (1) 12VDC Power Adapter
- (1) Quick Start / Configuration Guide
What Our Experts Think
-
Wave WiFi MNC1250 Dual Band Wireless Network Controller: A high-performance network controller designed for managing and optimizing wireless networks, making it an ideal choice for larger setups like boats, RVs, or commercial spaces with multiple access points.
-
Dual Band Support: Operates on both 2.4 GHz and 5 GHz frequencies, ensuring stable, high-speed connections with reduced interference, allowing multiple devices to perform efficiently at once.
-
Advanced Network Management: Provides centralized control for multiple access points, allowing users to manage, monitor, and optimize their network to ensure smooth operation across the entire system.
-
Wide Coverage: Expands WiFi coverage across larger areas, providing strong, reliable signals even in complex or expansive environments.
-
User-Friendly Interface: Simple and intuitive setup, making it easy for both beginners and experienced users to manage and configure their wireless networks.
-
Ideal for Multi-Zone Networks: Perfect for larger setups or multi-zone applications where you need to ensure seamless connectivity across a wide area, supporting the growing number of connected devices.
Q&A
Q: What is the Wave WiFi MNC1250 Dual Band Wireless Network Controller?
A: The Wave WiFi MNC1250 is an advanced dual-band wireless network controller designed to optimize and manage Wi-Fi networks. It is ideal for mobile and remote environments like RVs, boats, or multi-room homes, offering improved connectivity and coverage.
Q: What features does the Wave WiFi MNC1250 provide?
A: The MNC1250 offers dual-band support (2.4GHz and 5GHz), enabling it to manage high-speed connections across both bands. It supports multiple access points, improving overall network coverage and performance for seamless connectivity.
Q: How does the Wave WiFi MNC1250 improve network performance?
A: By managing dual-band Wi-Fi, the MNC1250 reduces interference, enhances signal strength, and optimizes network performance. It automatically selects the best available frequency for devices, ensuring faster speeds and more reliable connections.
Q: Can the Wave WiFi MNC1250 be used with multiple access points?
A: Yes, the MNC1250 is designed to support multiple access points, making it ideal for expanding Wi-Fi coverage in larger areas such as RVs, boats, or homes with multiple rooms.
Q: Is the Wave WiFi MNC1250 compatible with existing Wi-Fi networks?
A: Yes, it is compatible with most standard Wi-Fi networks, allowing users to enhance their existing wireless network's performance with greater control and improved connectivity.
Q: Is the Wave WiFi MNC1250 easy to install and manage?
A: Yes, the MNC1250 is designed for easy installation and management, with an intuitive interface and setup process that allows users to quickly configure and control their wireless network for optimal performance.
Maintenance Tips
-
Clean the Device Regularly: Use a soft, dry cloth to clean the MNC1250 and remove any dust or debris. Ensure there is no buildup of dirt or grime on the device, especially around vents and ports, as this can lead to overheating or poor performance.
-
Check All Connections: Ensure that all network cables (ethernet, power, etc.) are securely connected. Loose or damaged cables can lead to interruptions in the network and reduced performance.
-
Update Firmware: Check for firmware updates periodically through the Wave Wifi portal. Keeping the firmware updated ensures that the controller operates with the latest features, security patches, and performance optimizations.
-
Reboot the Controller: To keep it functioning smoothly, reboot the controller every few weeks. This helps in refreshing the system and can resolve minor issues or slowdowns.
-
Monitor Wireless Coverage: Regularly assess the performance of your wireless network. If you're experiencing weak signals or dead spots, check the placement of connected access points and adjust the positioning to optimize coverage.
-
Prevent Signal Interference: Position the controller away from electronics or large metal objects that might interfere with the wireless signal, such as microwaves, cordless phones, and thick walls.
-
Secure the Network: Ensure that strong encryption (WPA3 or WPA2) is enabled on the network and that default passwords are changed regularly to prevent unauthorized access.
-
Proper Placement: Place the controller in a well-ventilated, cool, and dry area to prevent overheating. Avoid areas with high temperatures or direct sunlight, as excessive heat can reduce the lifespan of the device.
-
Check Power Supply: Ensure that the controller is connected to a stable power source, preferably with surge protection to safeguard it against power spikes or surges that could cause damage.
-
Perform Regular Network Tests: Periodically test your network’s performance and make adjustments if necessary. Use the MNC1250’s diagnostic tools to assess network health and optimize performance.
