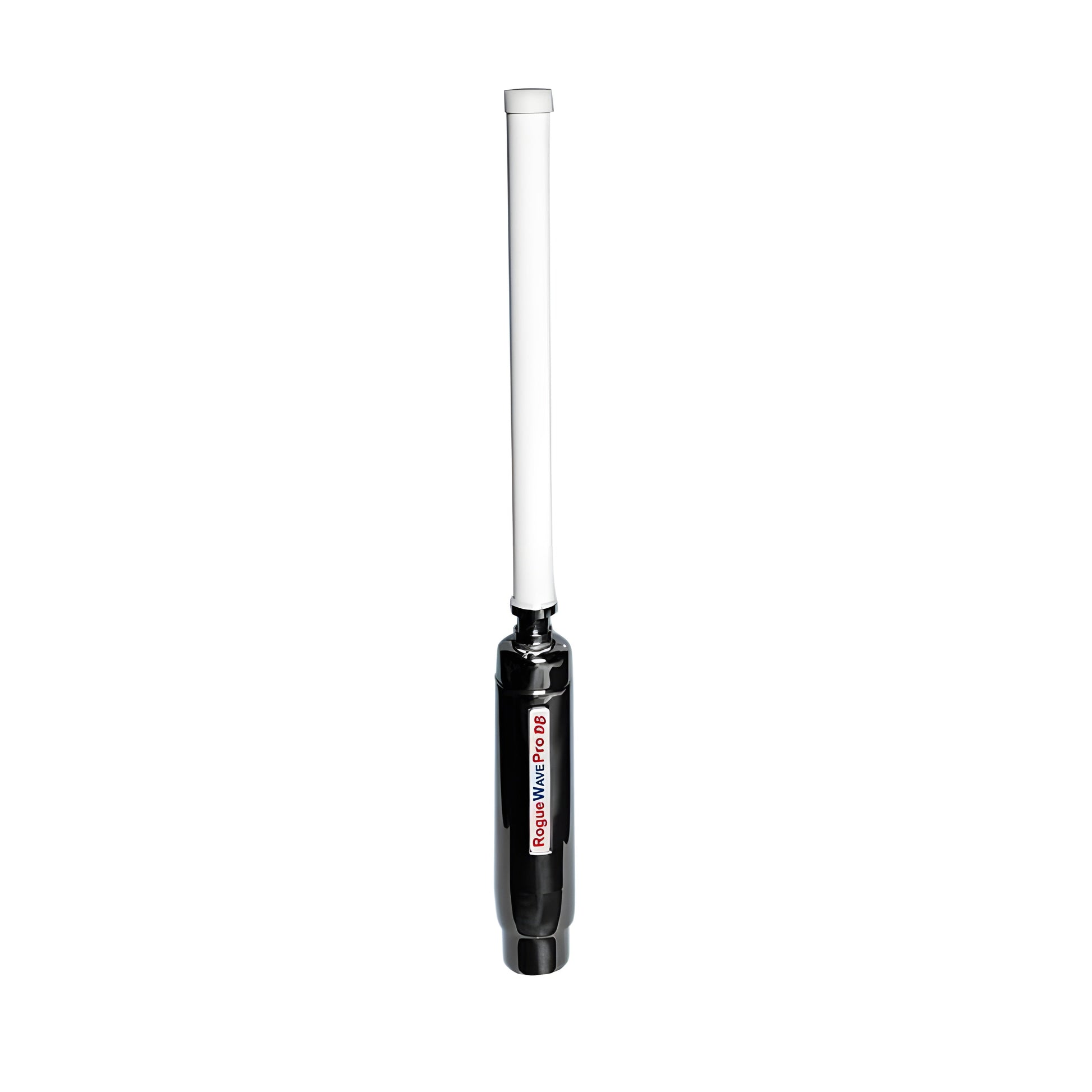

Wave Wifi Rogue Pro Db 2.4/5 G Wireless Bridge And Converter - WAVROGUEPRODB
The Rogue Wave Pro DB features the same trouble free mounting method as the Rogue Wave Pro. It is housed in a sealed and polished, rugged, marinized stainless steel case.
The Rogue Pro DB has an integral 1"-14 threaded base that will fit most standard marine mounts. The Rogue Pro housings were developed in response to a need for an extremely Marinized and Rugged device for commercial, military and Homeland Security projects.
Like all Wave WiFi models, the Rogue Wave Pro DB is an ethernet converter (EC). Direct connection can be made to any WAN ethernet enabled device, router or switch. When connected to a wireless router, the Rogue Wave Pro DB provides Internet connectivity for numerous wireless devices aboard the boat. There is no software installation and all operation of the device is purely Web-based.
Features
- The 600Mhz processor Delivers Faster Response times from the User Interface
- Capable of up to 125Mbit aggregate throughput
- Supports Concurrent 2.4Ghz / 5Ghz Wi-Fi Frequencies
- User Friendly proprietary Web-based Wave WiFi Interface
- Dual Band Omni-Directional N-Female Antenna
- Stainless Steel 1"- 14 Threaded Base that fits most standard marine antenna mounts
- Marinized Rugged Stainless Steel body for better weather protection
Specifications
| Ethernet |
One 10/100 Mbit/s Fast Ethernet port |
| Wireless |
802.11 b/g/n 2.4Ghz and 802.11 a/n 5Ghz Radio |
| Power |
Passive 12v PoE at 1A only |
| Connector |
N-Male |
| Mounting |
1" - 14 Threaded Base |
| Material |
Marinized Stainless Steel body |
| Input Voltage |
CPU |
| Input Draw |
600Mhz |
What's in the Box
- Rogue Pro DB with 25' CAT5E cable
- 110/220v AC Adapter
- 12V POE Injector
- Instructional CD
- Quick Start Guide
What Our Experts Think
-
Wave WiFi Rogue Pro DB 2.4/5G Wireless Bridge and Converter: A versatile and powerful wireless bridge and converter designed to enhance WiFi connectivity in challenging or remote locations. Ideal for RVs, boats, or large outdoor areas, it seamlessly connects and amplifies networks for more reliable internet access.
-
Dual Band Support: Supports both 2.4 GHz and 5 GHz bands, providing flexibility and improved performance. Dual-band operation minimizes interference, ensuring a faster and more stable connection for streaming, browsing, and working remotely.
-
Wireless Bridge Functionality: Acts as a bridge to extend the range of an existing WiFi network, perfect for users in areas with weak signal reception or those needing to link two distant networks together.
-
Signal Conversion: Capable of converting wireless signals to wired connections, allowing you to connect wired devices or create a local network from an existing WiFi source, enhancing versatility and connectivity options.
-
Long-Range Coverage: Designed for use in larger spaces, the Rogue Pro DB offers impressive range, making it ideal for extending WiFi coverage to areas where traditional WiFi signals struggle to reach.
-
Durable and Weather-Resistant: Built to withstand outdoor conditions, ensuring reliable performance even in harsh environments, perfect for marine or outdoor use.
-
Easy Setup and Use: Features an intuitive interface for quick and easy installation, making it accessible to users with minimal technical knowledge while still offering advanced features for those who need more control.
Q&A
Q: What is the Wave WiFi Rogue Pro DB 2.4/5G Wireless Bridge and Converter?
A: The Wave WiFi Rogue Pro DB is a powerful wireless bridge and converter designed to extend Wi-Fi range and improve connectivity in remote or mobile environments. It supports both 2.4GHz and 5GHz bands, offering enhanced flexibility for connecting to distant Wi-Fi networks.
Q: How does the Wave WiFi Rogue Pro DB work?
A: The Rogue Pro DB acts as both a bridge and a converter, allowing you to connect to distant Wi-Fi networks and then distribute the signal to your devices, such as smartphones, laptops, or smart TVs. It can also convert Wi-Fi signals into Ethernet for wired connections.
Q: What is the range of the Wave WiFi Rogue Pro DB?
A: The Rogue Pro DB offers extended range capabilities, making it ideal for connecting to distant or weak Wi-Fi signals. The exact range depends on environmental factors, but it significantly improves the ability to access Wi-Fi in remote or hard-to-reach locations.
Q: Does the Wave WiFi Rogue Pro DB support both 2.4GHz and 5GHz bands?
A: Yes, the Rogue Pro DB supports both 2.4GHz and 5GHz bands, allowing it to optimize Wi-Fi performance based on the available network. The 5GHz band offers faster speeds for high-demand activities, while the 2.4GHz band ensures broader coverage.
Q: Can I use the Wave WiFi Rogue Pro DB indoors and outdoors?
A: Yes, the Rogue Pro DB is designed for both indoor and outdoor use, making it perfect for RVs, boats, or other mobile setups where extended Wi-Fi range and stable connections are needed.
Q: Is the Wave WiFi Rogue Pro DB easy to install?
A: Yes, the Rogue Pro DB is designed for easy setup with minimal tools required. It features a user-friendly interface that allows for quick installation and configuration, enabling you to enhance your Wi-Fi experience in no time.
Maintenance Tips
-
Regular Cleaning: Keep the device clean by wiping it with a soft, dry cloth to remove dust and debris. Avoid using water or harsh chemicals that could damage the components.
-
Check Connections: Ensure all network cables (Ethernet and power) are securely plugged in. Loose or damaged cables can lead to connectivity issues and poor performance.
-
Firmware Updates: Periodically check for firmware updates through the Wave Wifi portal to ensure your device is operating with the latest security patches and performance improvements.
-
Reboot the Device: Reboot the device every 1-2 months to refresh the system, clear any temporary issues, and maintain stable performance.
-
Monitor Signal Strength: Check the wireless signal strength regularly to ensure optimal performance. If there are issues with connectivity, consider adjusting the placement of the bridge or converter to improve signal reception.
-
Position for Optimal Signal: Place the device in an area with minimal obstructions and interference (e.g., away from large metal objects or thick walls). The device should be positioned for line-of-sight with the network it is bridging or converting.
-
Avoid Interference: Position the Rogue Pro DB away from other electronics that may cause interference, such as microwaves, cordless phones, or other wireless devices operating on similar frequencies.
-
Secure the Network: Enable strong encryption (e.g., WPA3 or WPA2) and change default passwords regularly to secure your network from unauthorized access.
-
Proper Ventilation: Ensure the device is in a well-ventilated area to avoid overheating. Avoid placing it in confined spaces, as this can limit airflow and reduce the device’s lifespan.
-
Check for Overheating: Ensure the device is not exposed to excessive heat sources or direct sunlight, as overheating can lead to malfunctions or performance degradation.
-
Test Performance Regularly: Test the wireless bridge’s performance regularly to confirm that it’s delivering stable, high-speed connections. If performance degrades, adjust settings or the positioning of the device.
