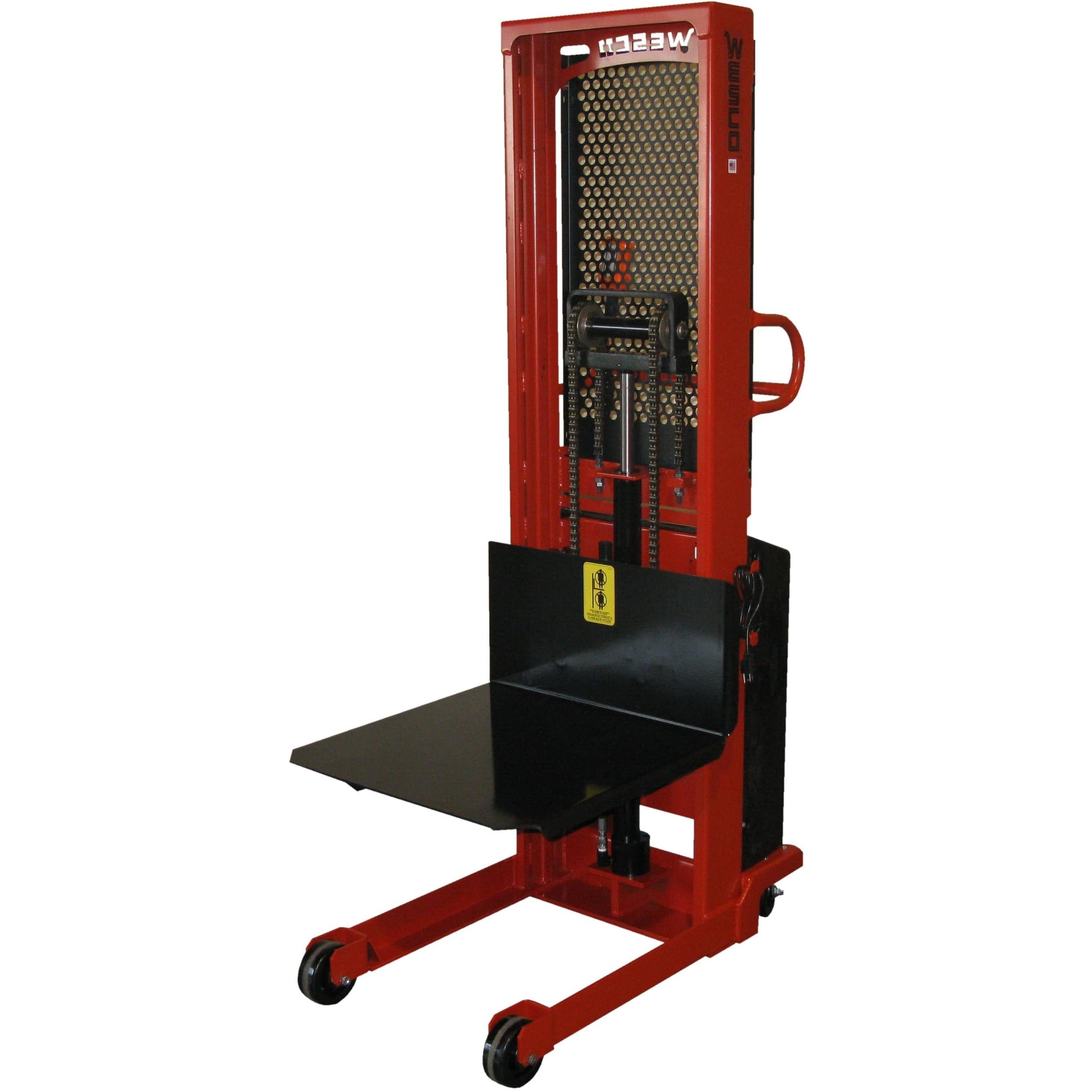

Wesco 30" X 32" PLATFORM 36" O.D. FIXED BASE LIFT POWERED STACKER - 261087
- 1-year warranty.
- Proven quality: Wesco® manufactured Hydraulic Cylinder.
- Meets ANSI B56.10 specifications.
- Battery and charger included.
- Platforms lowered height 6".
- Reinforced frame and base
- Double chain, lift support.
- Heavy-duty pump.
- Ergonomic "D" handles.
- 5th wheel and power drive options available.
- 110V AC models available (Special order no cancellations or returns).
Specifications
| PART NUMBER |
261087 |
| MODEL |
PSPL-90-3032-30S-2K |
| LIFT HEIGHT |
90" |
| CAPACITY |
2000 lb |
| PLATFORM WIDTH |
30" |
| PLATFORM LENGTH |
32" |
| LOAD CENTER |
18" |
| BASE LEG (ID/OD) |
30"/36" |
| OVERALL HEIGHT |
104" |
| WEIGHT |
578 lb |
Documents
What Our Experts Think
-
Heavy-Duty Capacity: Supports up to 2,000 lbs, making it ideal for lifting and transporting heavy materials.
-
Spacious Platform: 32" x 30" platform provides ample space for larger loads, ensuring stability during operation.
-
Extended Lift Reach: 90" lift height allows for efficient high-level stacking and material handling.
-
Smooth Powered Lift: Features a powered lift system for easy and precise control during operation.
-
Durable Construction: Built to withstand demanding industrial environments, offering long-term reliability and performance.
Q&A
Q: What is the weight capacity of this platform stacker?
A: The Wesco 261087 can lift up to 2,000 lbs.
Q: What is the maximum lift height?
A: This stacker offers a lift height of up to 90 inches.
Q: What are the platform dimensions?
A: The platform measures 32 inches by 30 inches.
Q: Is this stacker electric-powered?
A: Yes, it features a power lift mechanism for smooth and efficient operation.
Q: What are the primary applications for this stacker?
A: Ideal for lifting and moving large or heavy materials, pallets, and equipment in warehouses and industrial environments.
Q: Is it easy to maneuver?
A: Yes, it is designed for smooth movement and precise control.
Q: Does it require assembly?
A: Minimal assembly may be required, with clear instructions included.
Q: Is it durable?
A: Yes, built with heavy-duty materials for long-lasting performance and reliability.
Maintenance Tips
-
Inspect Regularly: Check the platform, hydraulic system, and base for any wear or damage every month.
-
Lubricate Moving Parts: Apply grease to chains, rollers, and hinges every 3 months to maintain smooth operation.
-
Hydraulic Fluid Check: Ensure hydraulic fluid levels are adequate and look for any leaks in the system.
-
Battery Maintenance: Fully charge the battery before use, and inspect cables and terminals for corrosion or wear.
-
Clean After Use: Wipe down the platform, frame, and wheels to prevent dirt buildup and corrosion.
-
Check Fasteners: Tighten all bolts, screws, and fasteners regularly to ensure stability and safety.
-
Test Functionality: Verify that lift, lowering, and braking systems are operating correctly.
-
Respect Load Limits: Do not exceed the 2,000 lb. capacity or 90" lift height for optimal safety.
