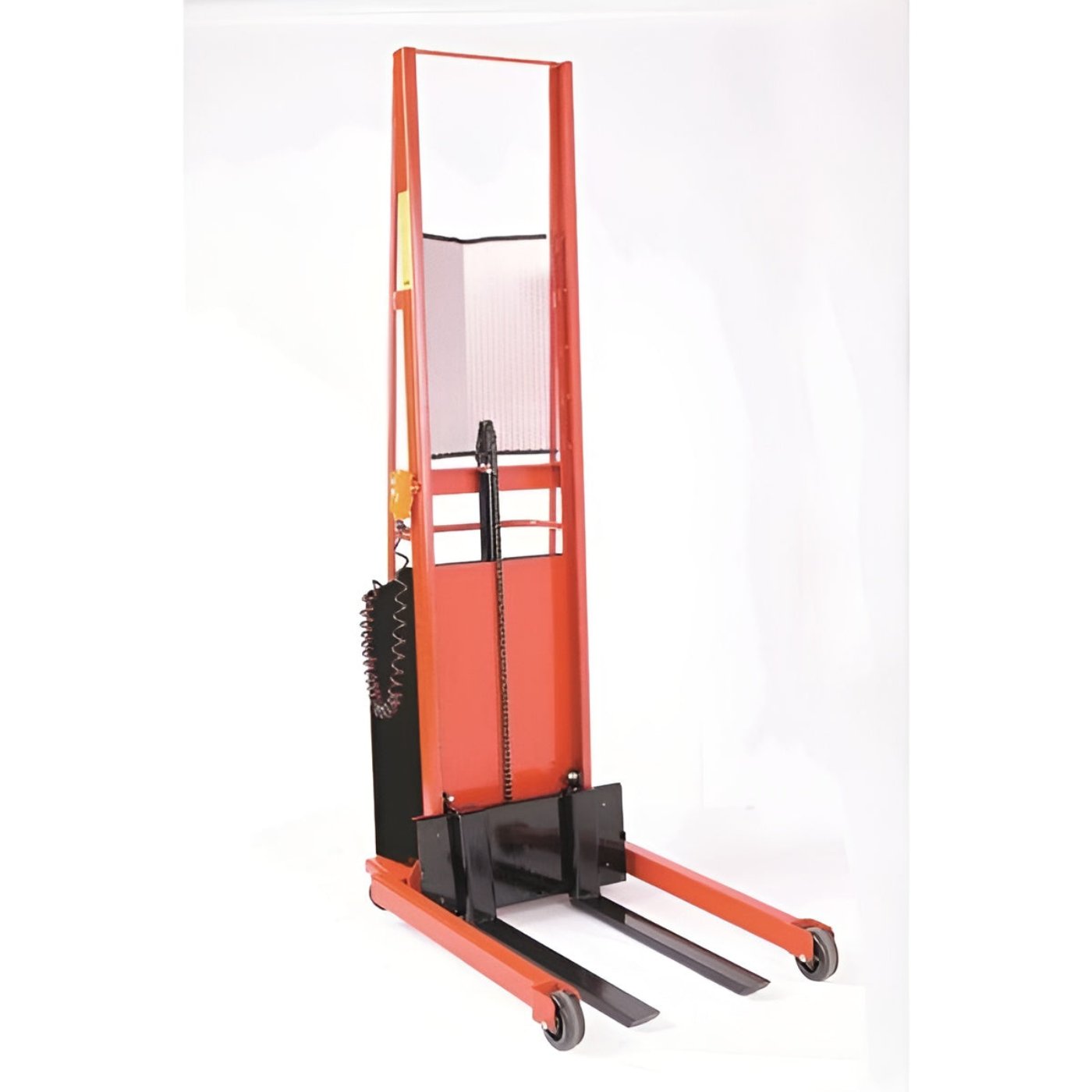

Wesco 3" X 25" FORK FIXED BASE POWERED STACKER - 261029
Features
- 1-year warranty.
- Proven quality: Wesco® manufactured Hydraulic Cylinder.
- Battery and charger included.
- Forks lower to floor on all models.
- 5" Phenolic wheels on front, 4" swivel on rear
- 110V AC models available.(Special order, NO cancellations or returns.)
- To order add AC to the end of the battery powered stacker part #.
Example:
Battery Powered #261029
110V AC Powered #261029AC
- Meets ANSI B56.10 specifications.
- Power Drive option available.
Videos
Specifications
| PART NUMBER |
261029 |
| MODEL |
PESFL-64-25 |
| TYPE |
Fork Models |
| FRONT WHEEL |
(2) 5" Phenolic |
| REAR SWIVEL CASTER |
(2) 4" Phenolic |
| LIFT HEIGHT |
64" |
| CAPACITY |
1000 lb |
| WIDTH FORKS |
3" |
| LENGTH FORKS |
25" |
| LOAD CENTER |
15" |
| BASE LEG (ID/OD) |
15"/21" |
| OVERALL WIDTH |
25.5" |
| OVERALL HEIGHT |
80" |
| OVERALL DEPTH |
44.5" |
| WEIGHT |
460 lb |
Drawing
What Our Experts Think
-
Light-Duty Capacity: Supports up to 1,000 lbs, ideal for lighter material handling and storage tasks.
-
Versatile Forks: 25" forks accommodate standard pallets and a range of materials.
-
Extended Lift Height: 64" lift height offers more vertical reach for stacking and organizing.
-
Stable Performance: Designed for stability and safe lifting in various industrial environments.
-
Compact Design: Easy to maneuver and fit into tight spaces, making it perfect for smaller operations.
Q&A
Q: What is the weight capacity of this fork stacker?
A: The Wesco 261029 can lift up to 1,000 lbs.
Q: What is the maximum lift height?
A: This stacker offers a lift height of up to 64 inches.
Q: What are the fork dimensions?
A: The forks are 25 inches in length.
Q: Is this stacker electric-powered?
A: Yes, it features a power lift mechanism for effortless lifting.
Q: What are the primary applications for this stacker?
A: Perfect for lifting light-to-medium loads, pallets, and material handling in warehouses.
Q: Is it easy to maneuver?
A: Yes, it’s designed for smooth operation and precise movement.
Q: Does it require assembly?
A: Minimal assembly may be required, with easy-to-follow instructions provided.
Q: Is it durable?
A: Yes, it is built with heavy-duty materials for long-term reliability.
Maintenance Tips
-
Routine Inspections: Check forks, base legs, and hydraulic system for any signs of damage or wear monthly.
-
Lubricate Moving Parts: Grease chains, rollers, and hinges every 3 months for smooth operation.
-
Battery Maintenance: Charge fully before use and inspect cables for wear or corrosion.
-
Clean After Use: Wipe down the forks, frame, and base legs to prevent dirt and rust buildup.
-
Tighten Fasteners: Periodically check and secure bolts, screws, and fasteners for stability.
-
Test Functionality: Ensure lift, lowering, and braking systems operate properly.
-
Respect Load Limits: Do not exceed the 1,000 lb. load capacity or 64" lift height for safety.
