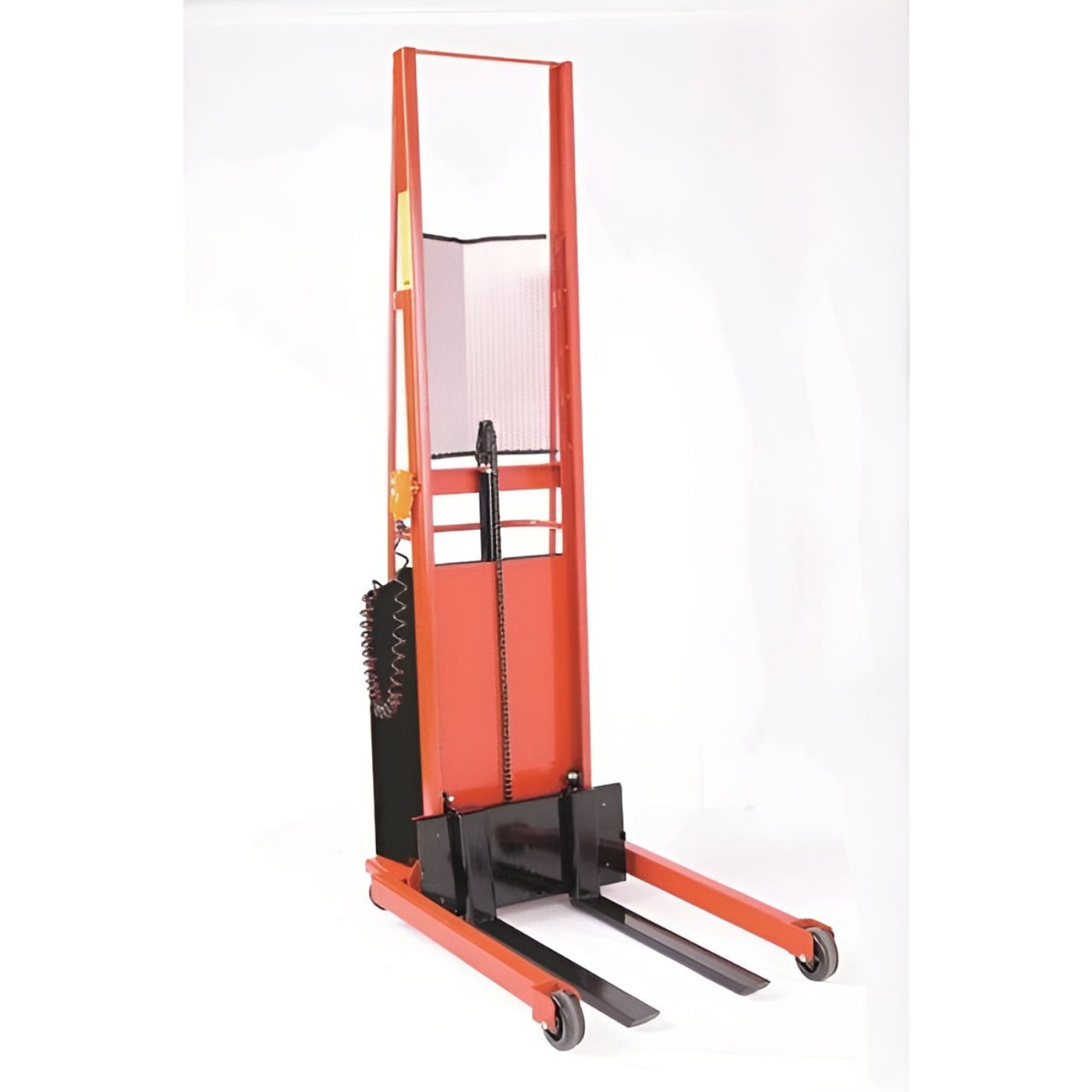

Wesco 3" X 25" FORK FIXED BASE POWERED STACKER- 261030
Features
- 3 year pump warranty.
- 24 Volt lithium battery, 20AH capacity
- Tight turning radius for maneuverability
- Permanent magnet brushless motor
- Stepless controls for accurate speed control
- Separate charger
Specifications
| CAPACITY |
3,300 lb |
| W-1 X L-1 |
27" x 48" |
| W-2 |
6" |
| L-2 |
67.5" |
| WHL-1 / WHL-2 |
8" / 3" |
| H-1 / H-2 / H-3 |
49.5" / 3.3 "/ 7.5" |
| WEIGHT |
397 lb |
Drawing
What Our Experts Think
-
Capacity: Handles up to 1,000 lbs, ideal for lighter material handling and storage applications.
-
Fork Versatility: 25" forks ensure compatibility with standard pallets and various materials.
-
Extended Lift Range: 76" lift height offers increased reach for high stacking and efficient organization.
-
Stable and Safe: Built with stability in mind, ensuring safe lifting and maneuvering.
-
Compact and Maneuverable: Easy to operate in tight spaces, perfect for smaller warehouses or workshops.
Q&A
Q: What is the weight capacity of this fork stacker?
A: The Wesco 261030 can lift up to 1,000 lbs.
Q: What is the maximum lift height?
A: This stacker provides a lift height of up to 76 inches.
Q: What are the fork dimensions?
A: The forks measure 25 inches in length.
Q: Is this stacker electric-powered?
A: Yes, it features a power lift mechanism for easy and efficient lifting.
Q: What are the main applications for this stacker?
A: Ideal for lifting light-to-medium loads, pallets, and material handling in warehouses.
Q: Is it easy to maneuver?
A: Yes, it’s designed for smooth movement and precise control.
Q: Does it require assembly?
A: Minimal assembly may be required, with instructions included.
Q: Is it durable?
A: Yes, built with durable materials for long-lasting performance.
Maintenance Tips
-
Inspect Regularly: Check forks, base legs, and hydraulic system for wear or damage each month.
-
Lubricate Moving Parts: Grease rollers, hinges, and chains every 3 months to maintain smooth operation.
-
Battery Care: Fully charge the battery before use and inspect cables for signs of wear or corrosion.
-
Clean Thoroughly: Wipe down forks, frame, and base legs after each use to prevent dirt buildup and rust.
-
Tighten Fasteners: Check bolts, screws, and other fasteners regularly to ensure everything is secure.
-
Test Safety Features: Ensure lift, lowering, and braking functions operate properly.
-
Follow Load Limits: Do not exceed the 1,000 lb. capacity or 76" lift height to maintain safe operation.
